The L78M05CDT-TR is a three-terminal positive Voltage Regulator with several fixed output voltages, making it useful in a wide range of applications. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. Each type employs internal current limiting, thermal shutdown, and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Note: For more technical details go through Datasheet in the attachment section.
Features:
- Thermal Overload Protection
- Short-circuit Protection
- Output Transition SOA Protection
- 4% Output Voltage Tolerance
- Guaranteed in Extended Temperature Range
Package Includes:
1 x L78M05CDT-TR STMICROELECTRONICS Linear Voltage Regulator, 7805, Fixed, 10V To 35V In, 5V And 0.5A Out, TO-252-3
Attachments :
Download
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 18.88 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

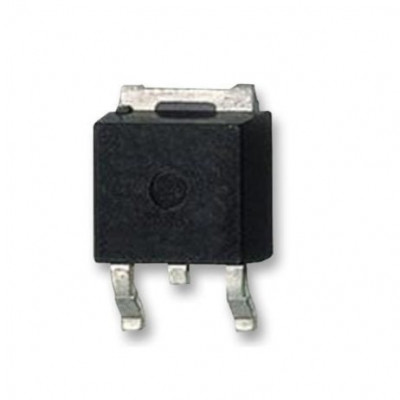

L78M05CDT-TR STMICROELECTRONICS Linear Voltage Regulator, 7805, Fixed, 10V To 35V In, 5V And 0.5A Out, TO-252-3
- Product Code: EC-18703
- Availability: 727
-
Rs.17.00
- (Excluding 18% GST)
