  • Laser Diode Module - 5mW 650nm 5V Red

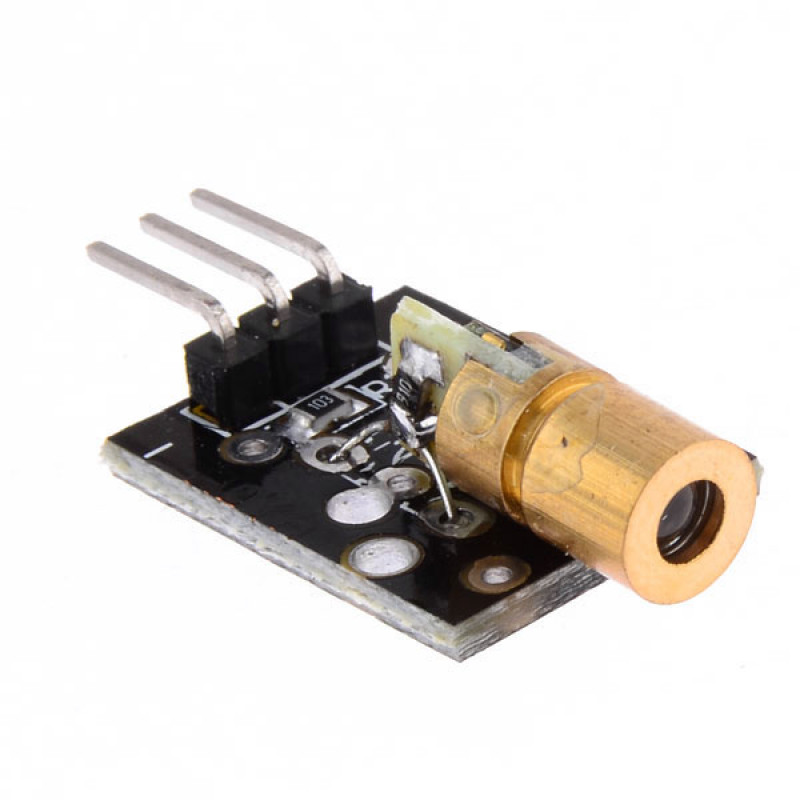

Laser Diode Module is a breadboard friendly, low cost having wavelength of 650nm and operating voltage of 5V. The laser head is composed of a light-emitting tube, condenser lens and adjustable copper sleeve and it is assembled when delivered, the focal length of the lens is adjusted glued by strong glue stick, which can work directly after connecting to a 5v dc power supply. Pay attention to the laser cell to prevent from being burnt or battery explosion due to a short circuit when removing the battery.

Features of Laser Diode Module:-

  • Voltage: 3.0-5V
  • Output: red laser straightly(650nm)
  • Driver: APC circuit
  • Size: Φ 12.0 x35mm
  • Line length: about 135 mm
  • Transmit power: 58mW
  • Operating Current: 40mA
  • Operating temperature: -36 ~ 65◦C
  • Pot size: 15 meters spot for φ10 mm ~ φ15
  • Power lead length: 95mm
  • Outer diameter: 6mm

Applications of Laser Diode Module:-

  • Laser test tools
  • Concentricity positioning
  • Medical equipment positioning
  • Production of signal equipment
  • Use for DIY or robots
  • All kinds of level meters
  • Laser projector
  • Laser toys, etc.

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 68.44 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Laser Diode Module - 5mW 650nm 5V Red

  • Product Code: EC-2367
  • Availability: 86
  • Rs.58.00
  • (Excluding 18% GST)

  • Wholesale Pricing
    Select Quantity Discount Price per piece
    1 - 9 0% 58.0000
    10 - 24 5% Rs.55.00
    25 - 49 10% Rs.52.00
    50 - 99 17% Rs.48.00
    100+ 24% Rs.44.00
