1.2A low-dropout linear voltage regulator in 3-pin SOT223 package suitable for direct regulations in SMPS and secondary linear regulations in DC to DC converters. It has an input voltage range from 2.5V to 18V. The high power supply rejection ratio of 87dB at 120Hz, rolling down to more than 40dB at 100KHz.
Note: For more technical details go through Datasheet in the attachment section.
Features:
- Typical dropout 350mV at 1.2 A
- Internal thermal, current, and power limitation
Package Includes:
1 x LDL1117S33R STMICROELECTRONICS LDO Voltage Regulator, Fixed, 2.5 V to 18 V in, 350 mV drop, 3.3 V/1.2 A out, SOT-223-3
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

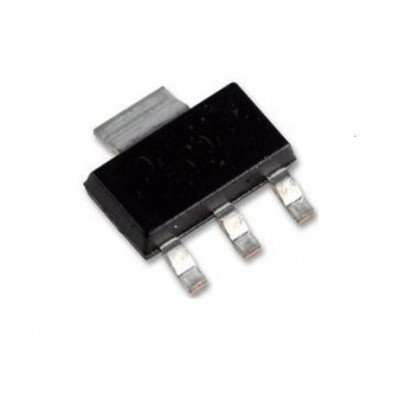

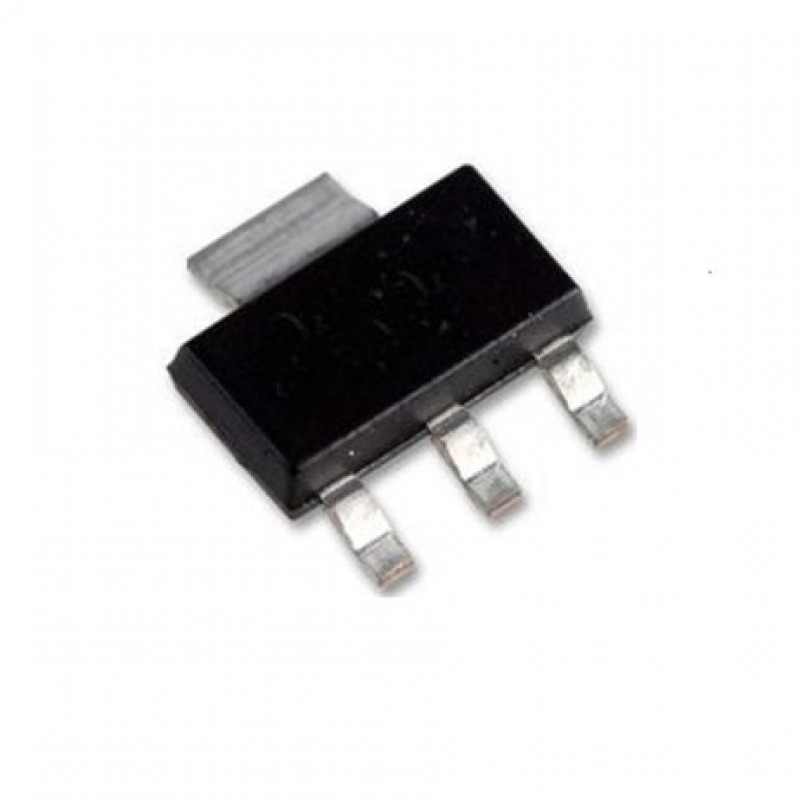

LDL1117S33R STMICROELECTRONICS LDO Voltage Regulator, Fixed, 2.5 V to 18 V in, 350 mV drop, 3.3 V/1.2 A out, SOT-223-3
- Product Code: EC-18699
- Availability: 138
-
Rs.22.00
