Unlock the potential of motion sensing with our Low Power 9-Axis MEMS MotionTracking Device. This advanced sensor integrates a 3-axis gyroscope, 3-axis accelerometer, and a 3-axis compass, providing precise motion tracking for a wide range of applications. Ideal for robotics, drones, wearable tech, and smart devices, this sensor delivers robust performance while maintaining low power consumption.
Features:
- Onboard Digital Motion Processor (DMP): Efficiently processes motion data for enhanced accuracy.
- Flexible Communication Interfaces: Supports 7MHz SPI or 400kHz Fast Mode IC.
- Auxiliary IC Interface: Connect additional external sensors for expanded functionality.
- Digital-output Temperature Sensor: Provides temperature data for compensation in motion sensing.
- Low Power Consumption: Designed for energy-efficient applications.
Specifications:
- Gyroscope: 3-Axis, FSR 250, 500, 1000, 2000 dps.
- Accelerometer: 3-Axis, FSR 2g, 4g, 8g, 16g.
- Magnetometer: 3-Axis, measurement range 4900 T.
- Digital Motion Processor (DMP): Onboard processing for motion data and sensor fusion.
- Communication Interfaces: 7 MHz SPI or 400 kHz Fast Mode IC.
- Auxiliary Interface: IC for external sensor connectivity.
- Temperature Sensor: Digital-output.
- Power Supply: [Specify voltage range].
- Current Consumption: [Specify current consumption].
- Operating Temperature Range: [Specify range, e.g., -40C to +85C].
Package includes:
1 x LILYGO T-ICM
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

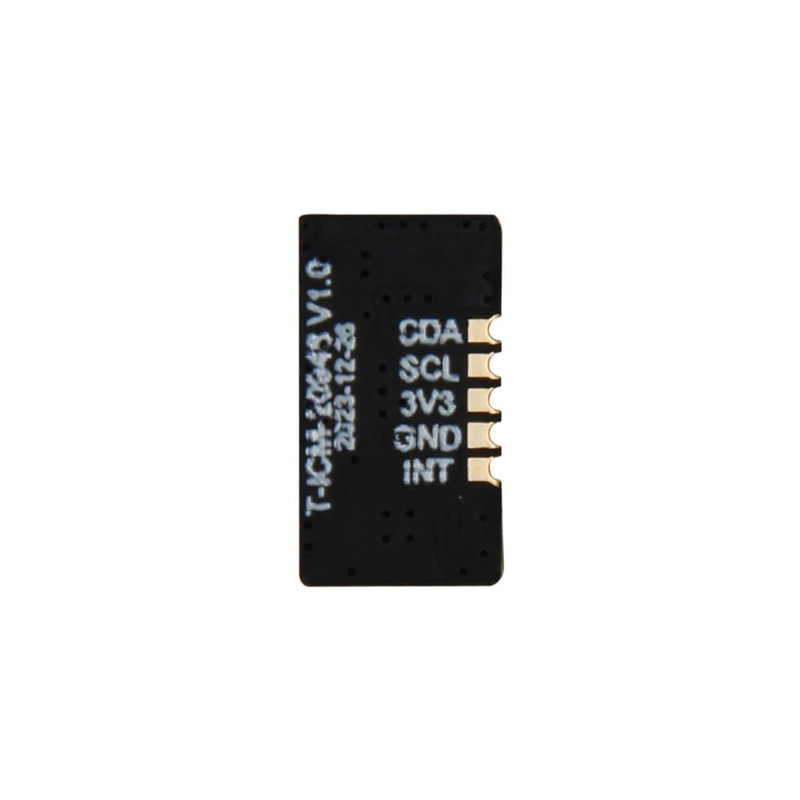

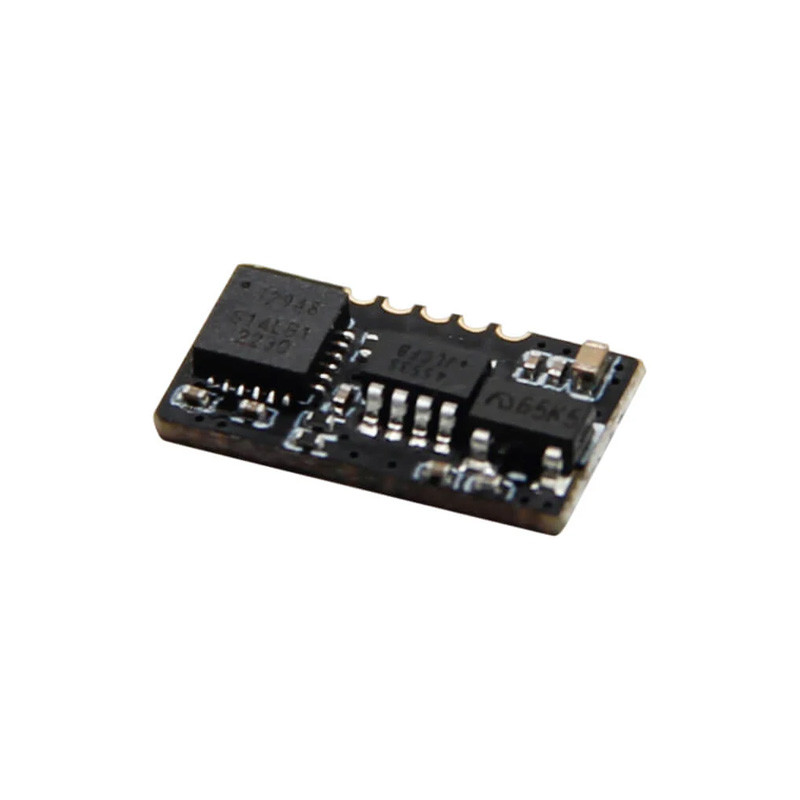

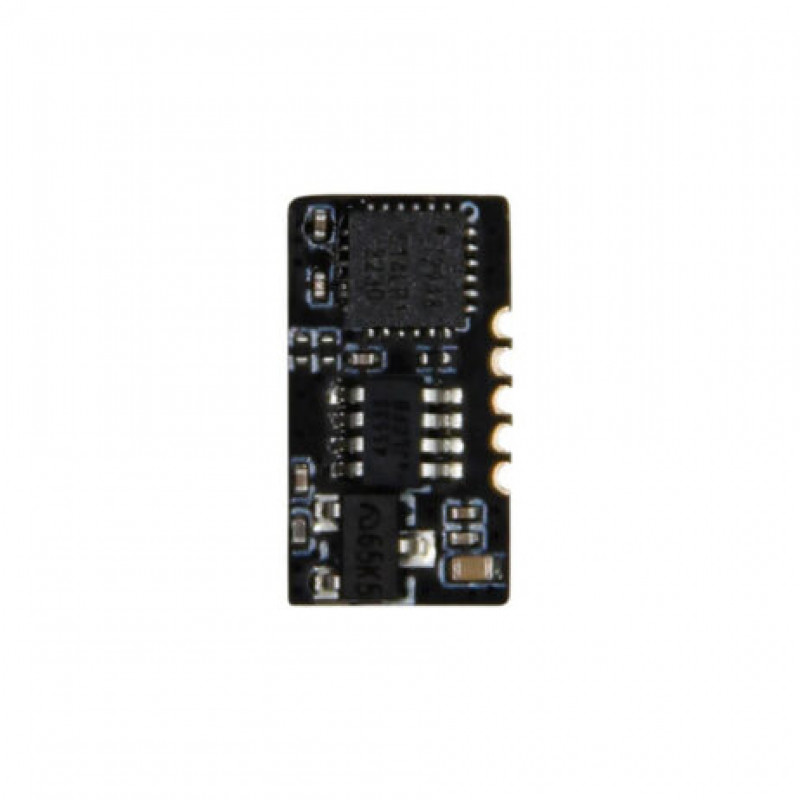

LILYGO T-ICM
- Product Code: EC-29732
- Availability: Out Of Stock
-
Rs.575.00
- (Excluding 18% GST)
