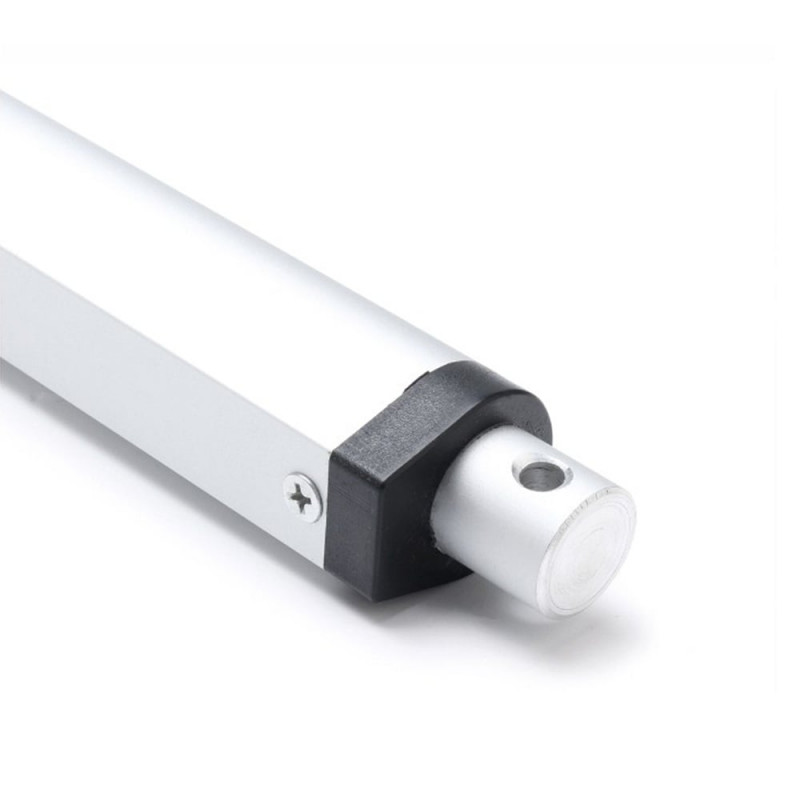

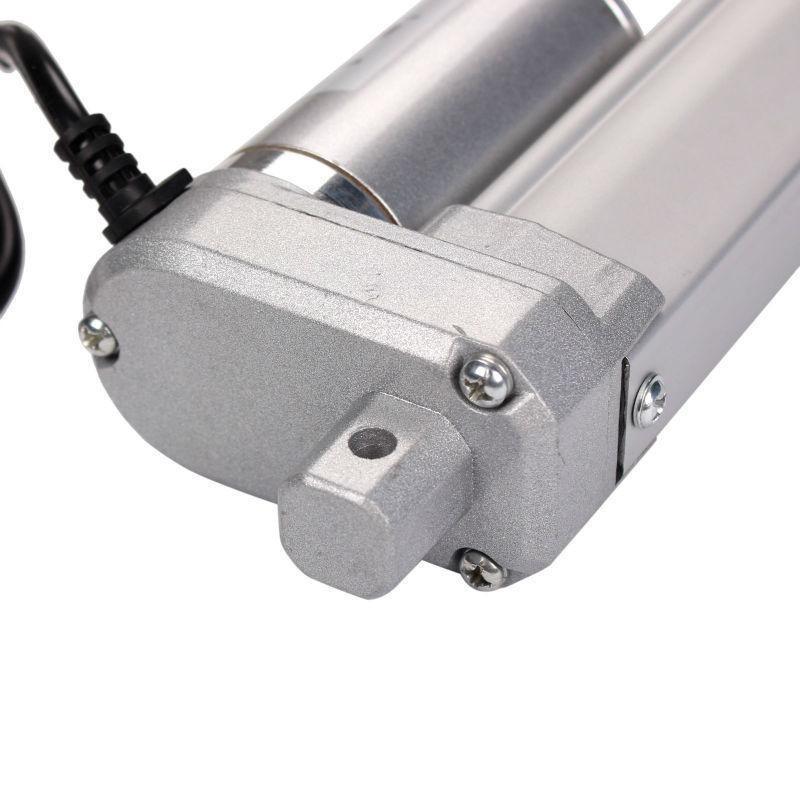

This Miniature Linear Actuator with Stroke Lengths 500MM, 7mm/S, 1000N, and 24V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo, and many other applications. This electric push rod is a kind of electric driving device that transforms the rotary motion of the motor into the linear reciprocating motion of the push rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control, or automatic control. The electric push rod is composed of a drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro-motion control switch, etc.
Applications:
- Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
- The medical electric bed, surgical bed, traction bed
- Electric types of equipment: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc;
- Chair for medical use: Electric wheelchair, massage chair, dental chair.
- Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras, and more.
Note:
1. The actual product may vary in terms of color and markings.
2. The following conditions can cause serious damage to the product.
1. Direct connect with AC power
2. Use in the above standard voltage environment
3. Push/Pull exceed the maximum value of the product show
4. The stroke did not finish, still with power, forced to cease.
3. The following conditions may shorten the product life.
1. High-frequency operation
2. High temperature
Linear Actuator Parts:
The following figure shows various parts of the Linear Actuator. Also, please refer to the schematic provided in the attachments for the dimensions of the actuator.
Features:
- Aluminum frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive: Voltage 24VDC
- Self-Locking Force: 1000N
Package Includes:
1 x Linear Actuator Stroke Length 500MM, 7mm/S, 1000N, 24V
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Linear Actuator Stroke Length 500MM, 7mm/S, 1000N, 24V
- Product Code: EC-21118
- Availability: Out Of Stock
-
Rs.3575.00
- (Excluding 18% GST)
