The 59140 is a miniature flange mounting reed sensor occupying only 3.22cm (0.500) board space with a choice of normally open, normally open high voltage, normally closed, or changeover contacts. Its case design enables screw or adhesive mounting and the wires exit from top right-hand side. It is also available with a left-hand exit see 59141 Series. It is capable of switching up to 265 Vac/300 Vdc at 10VA. The 59140 functions best with the matching actuator 57140-000.
For more technical details, go through the Datasheet in the attachment section.
Features:
- The magnetically operated position sensor
- Customer-defined sensitivity option
- Choice of cable length and connector
- RoHS compliant
Package Includes:
1 x 59140-1-T-02-F Magnetic Sensor, Flange Mount, 2 Pins, 30 G
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

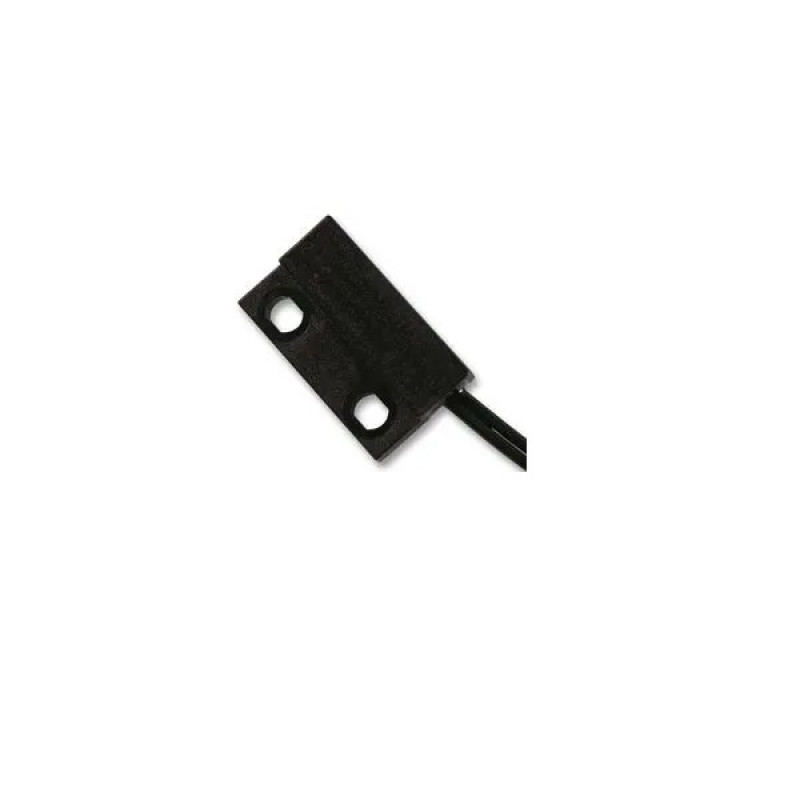

LITTELFUSE 59140-1-T-02-F Magnetic Sensor, Flange Mount, 2 Pins, 30 G
- Product Code: EC-23423
- Availability: Out Of Stock
-
Rs.325.00
- (Excluding 18% GST)
