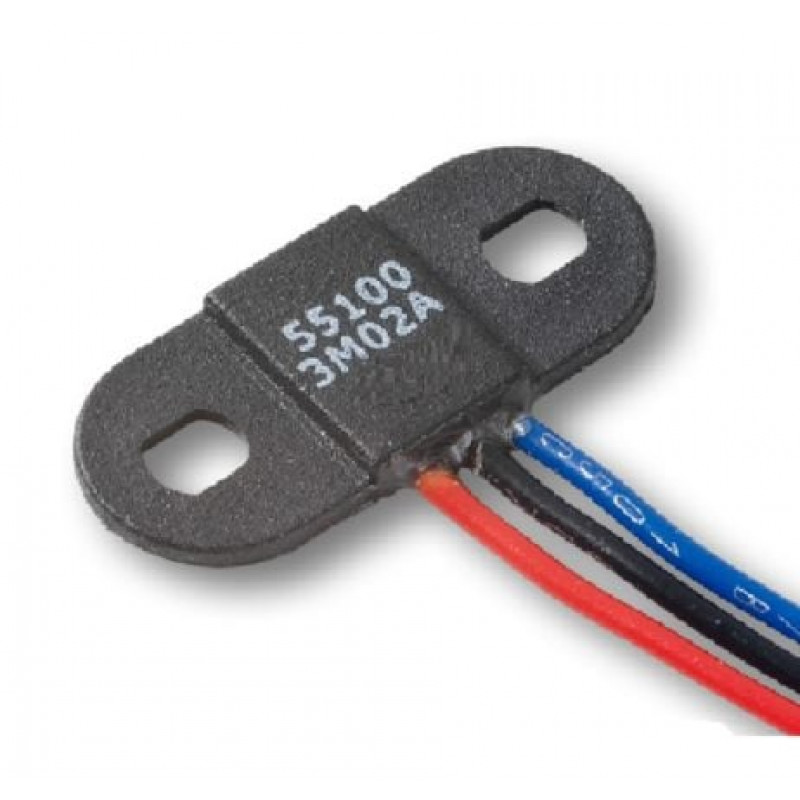

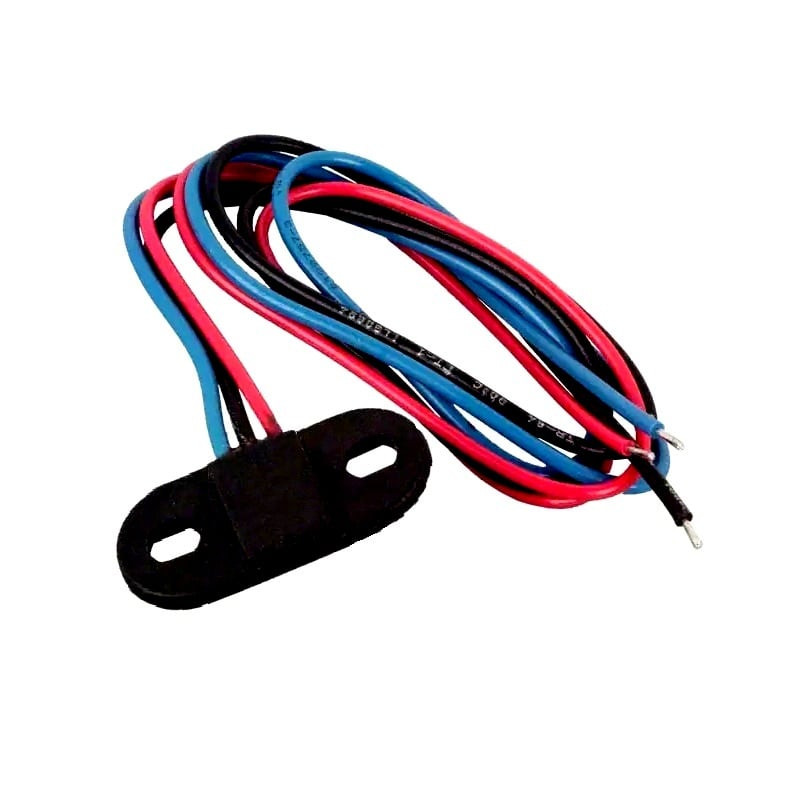

The 55100 is a miniature flange mounting hall effect sensor 25.5mm (1.004) x 11.00m (0.433) and only 3.00mm (0.118) high with a choice of digital or programmable analog outputs. It is available as three-wire (voltage output) or two-wire (current output) versions. Its case design enables screw or adhesive mounting and capable of switching up to 24Vdc and 20mA. It comes with a range of sensitivity and cable length option
Applications:
- Position and limit sensing
- RPM measurement
- Flow metering
- Commutation of brushless DC motors
- Angle sensing
- Magnetic encoders
Features:
- Magnetically operated position sensor
- Digital or programmable analog types available
- Medium, high or programmable sensitivities
- Three-wire (voltage output) or two-wire (current output) versions
- Reverse/Over voltage protection
- Built in temperature compensation
Note: For more info., refer to datasheet.
Product image can differ from actual product.
Package Includes:
1 x LITTELFUSE Hall Effect Proximity Sensor, Flange Mount, 55100 Series, 19 mm
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
LITTELFUSE Hall Effect Proximity Sensor, Flange Mount, 55100 Series,19 mm, 59 G
- Product Code: EC-23408
- Availability: 1
-
Rs.1108.00
- (Excluding 18% GST)
