The LM311DR is a single high-speed voltage comparator. This device is designed to operate from a wide range of power-supply voltages, including 15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. This comparator is capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC.Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.
Features:
- Fast response times
- Strobe capability
- Available in Q-Temp automotive
- Can operate from a single 5-V power supply
- Response Time: 115ns
- Applications: Automotive, Signal Processing, Automation & Process Control
Packager Includes:
1 x LM311DR-TEXAS INSTRUMENTS-Analogue Comparator, High Speed, 1 Channels, 115 ns, 3.5V to 30V, SOIC, 8 Pins
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

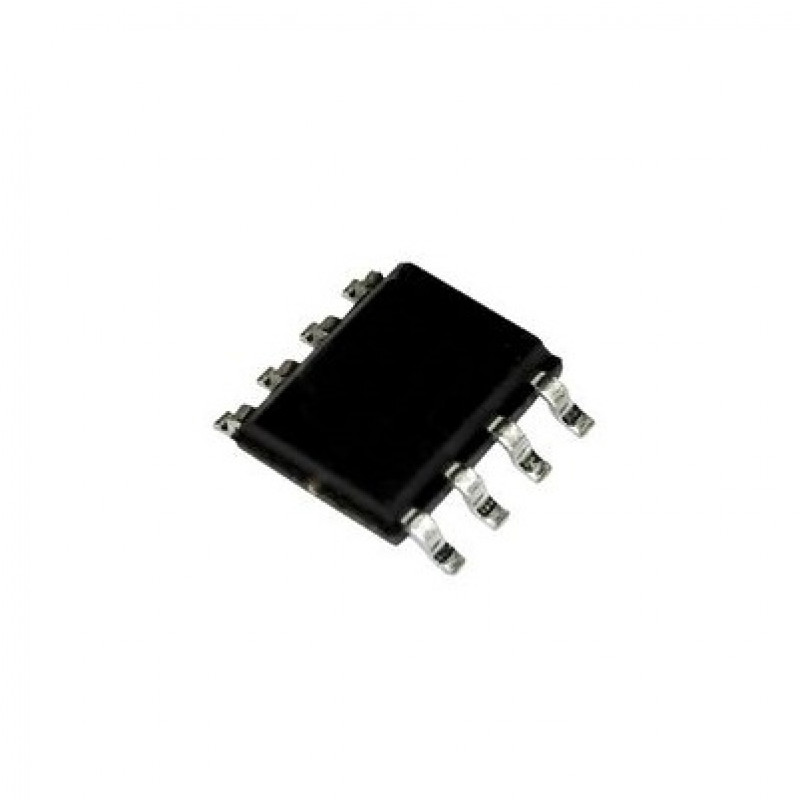

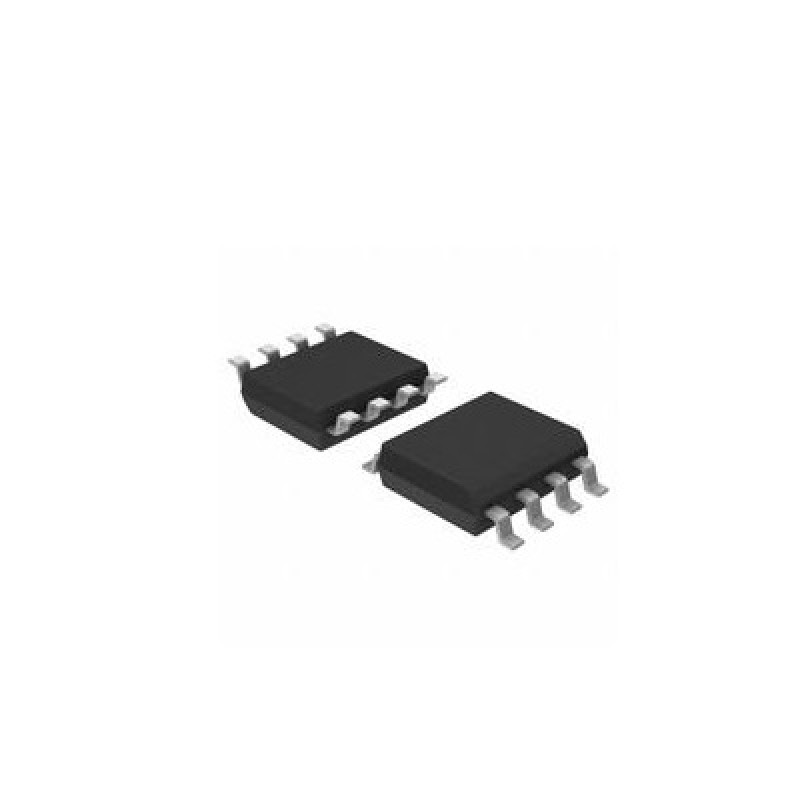

LM311DR-TEXAS INSTRUMENTS-Analogue Comparator, High Speed, 1 Channels, 115 ns, 3.5V to 30V, SOIC, 8 Pins
- Product Code: EC-28742
- Availability: 545
-
Rs.26.00
- (Excluding 18% GST)
