The LM358AP is a dual high-gain frequency-compensated Operational Amplifier designed to operate from a single supply or split supply over a wide range of voltages.
Features:
- Common-mode input voltage range includes ground, allowing direct sensing near the ground
- Internal frequency compensation
- 0.7mA Typical low supply-current drain
- 2mV Typical input offset voltage
- 2nA Typical input offset current
- 15nA Typical input bias current
- 32V Differential input voltage range equal to maximum-rated supply voltage
- 100dB Typical open-loop differential voltage gain
Package Includes:

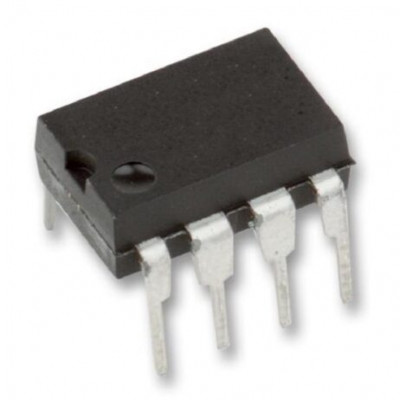

1 x LM358AP-Texas Instruments -Operational Amplifier, Dual, 2 Amplifier, 700 kHz, 0.3 V/s, 1.5V to 16V, DIP, 8 Pins
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
LM358AP-Texas Instruments -Operational Amplifier, Dual, 2 Amplifier, 700 kHz, 0.3 V/s, 1.5V to 16V, DIP, 8 Pins
- Product Code: EC-28469
- Availability: 565
-
Rs.15.00
- (Excluding 18% GST)
