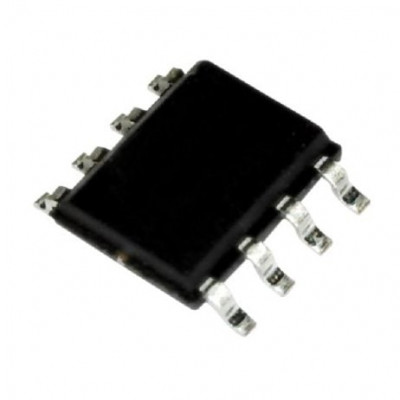

This is LM393DT STMICROELECTRONICS Analogue Comparator, Dual, Voltage, 2 Comparators, 1.3 s, 2V to 36V, SOIC, 8 Pins IC. The LM393DT is a low power Dual Voltage Comparator designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. It also has a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.
Applications:
Sensing & Instrumentation
Note: Refer to datasheet in the attachment section for more info. regd. the product.
Features:
- Very low supply current (0.45mA) independent of supply voltage (1mW/comparator at +5V)
- 20nA Typical low input bias current
- 3nA Typical low input offset current
- 1mV Typical low input offset voltage
- Input common-mode voltage range includes ground
- 80mV Typical (I sink=4mA) low output saturation voltage
- Differential input voltage range equal to supply voltage
- Comparator Type: Voltage
- No. of Comparators: 2 Comparators
Package Includes:
1 x LM393DT STMICROELECTRONICS Analogue Comparator, Dual, Voltage, 2 Comparators, 1.3 s, 2V to 36V, SOIC, 8 Pins IC
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
LM393DT STMICROELECTRONICS Analogue Comparator, Dual, Voltage, 2 Comparators, 1.3 s, 2V to 36V, SOIC, 8 Pins
- Product Code: EC-18905
- Availability: Out Of Stock
-
Rs.26.00
- (Excluding 18% GST)
