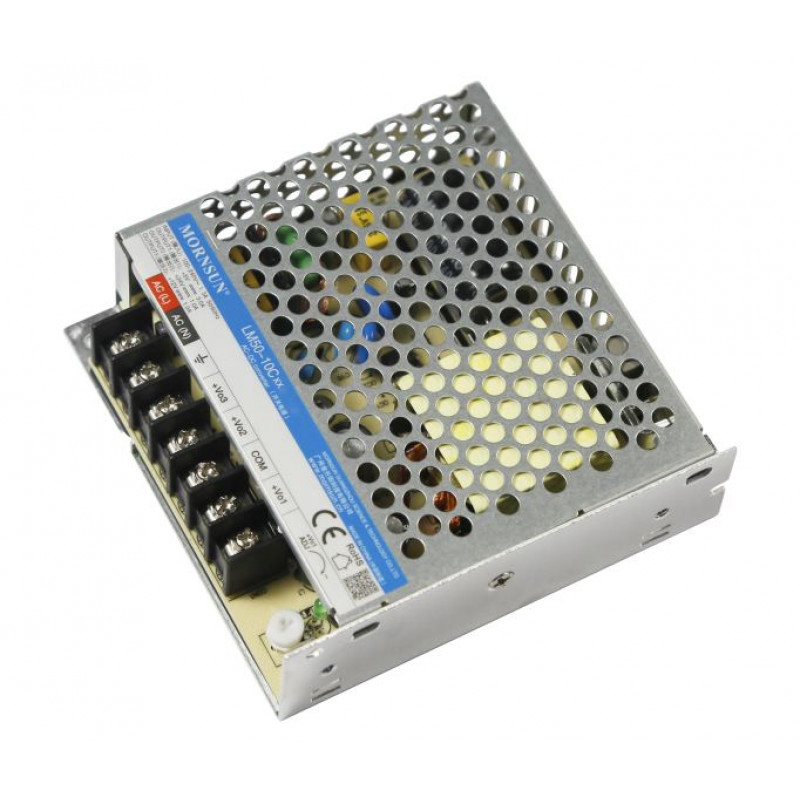

  • LM50-10C051212-20 Mornsun SMPS - (5V 4A), (12V 2A) and (-12V 0.5A) - 50W AC/DC Enclosed Switching Triple Output Power Supply

LM50-10C051212-20 is one of power converter design features 3 output versions, which can independently supply 3 different loads in the system.The products can be used in harsh working environments with an ambient temperature range from -30℃ to +70℃, without the need of a fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection.The products also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance to low-cost ratio providing the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.


Key Specifications



Type Enclosed Type Triple Output
Output Power 50W
Series LM50-10C
Part Number LM50-10C051212-20
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 5V, 12V, -12V
Output Current 4A, 2A, 0.5A


Features

• Universal 85 - 264VAC or 120 - 373VDC Input voltage

• Operating ambient temperature range: -30℃ to +70℃

• High efficiency, high reliability and long lifetime

• LED indicator for power on

• Output short circuit, over-current, over-voltage protection

• Withstand 300VAC surge input for 5s

• High I/O isolation test voltage up to 3000VAC

• Safety according to IEC/EN/UL62368, EN60335, GB4943

• Emissions compliant to CISPR32/EN55032 CLASS B

• Withstand 5G vibration test

• Operating altitude up to 5000m


Detailed Specifications



Input voltage range 85-264VAC; 120-373VDC
Inrush current (max.) Cold start, 50A at 230VAC
Output voltage adjustable range 4.75-5.5V
Working current range 0.4-5A, 0.2-2.5A, 0.1-1A
Efficiency at 230VAC 81%
Max. capacitive load 4000µF, 2000µF, 470µF
Input current (max.) 0.8A at 230VAC
Short circuit protection Hiccup, continuous, self-recovery
Over-current protection 110%-230% Io, self-recovery
Withstand voltage 300VAC
Working temperature -30 - 70°C
Connection Terminal block
Dimension (LxWxH) 99 x 97 x 30 mm
Weight 240 gm
Cooling Method Free air convection
Case Material Metal (AL1100, SGCC)
MTBF >300000 Hrs
Safety Class CLASS I
Safety standards Meet IEC/EN/UL62368/EN60335/GB4943
EMC standards CISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
Certification CE, RoHS
Warranty 3 years


Related Documents

LM50-10C051212-20 Data Sheet
