Key Specifications:-

  • Output Voltage           24V
  • Type                         Enclosed Type
  • Approx. Wattage 53W
  • Features                 Standard
  • Series                 LRS(Reliable)
  • Mechanical Form Enclosed
  • Warranty                 3 Years Warranty
  • IP Level                 Non-Waterproof
  • Input Voltage         100-240V auto-select


  • No load power consumption <0.2W for 35W/50W;  <0.3W for 75W/100W
  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • Ultra compact and 1U low profile
  • Withstand 5G vibration test
  • High operating temperature up to 70oC
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
  • Operating altitude up to 5000 meters
  • High efficiency, long life and high reliability
  • LED indicator for power on
  • Low cost
  • 3 years warranty


AC input voltage range85~264VAC; 120~370VDC
AC inrush current (max.)Cold start, 45A at 230VAC
DC adjustment range±10% by potentiometer
Overload protection Range110%~150%
Overload protection TypeHiccup mode, auto-recovery
Over voltage protection Range115%~135% rated output voltage
Over voltage protection TypeShut down o/p voltage, re-power on to recover
Withstand voltage3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature-30~+70°C (refer to output derating curve)
Safety standardsUL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standardsEN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254

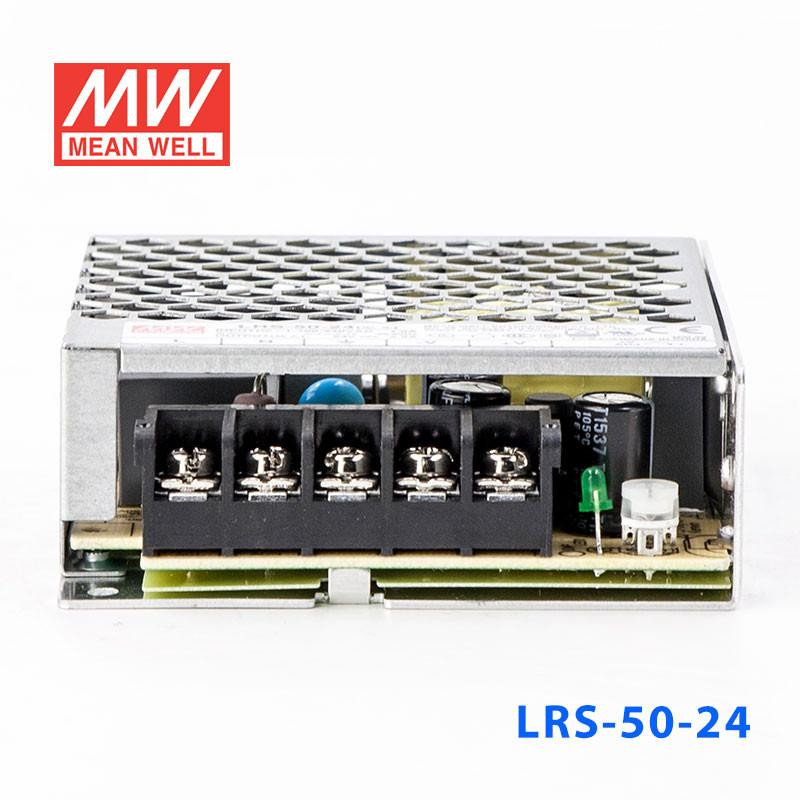

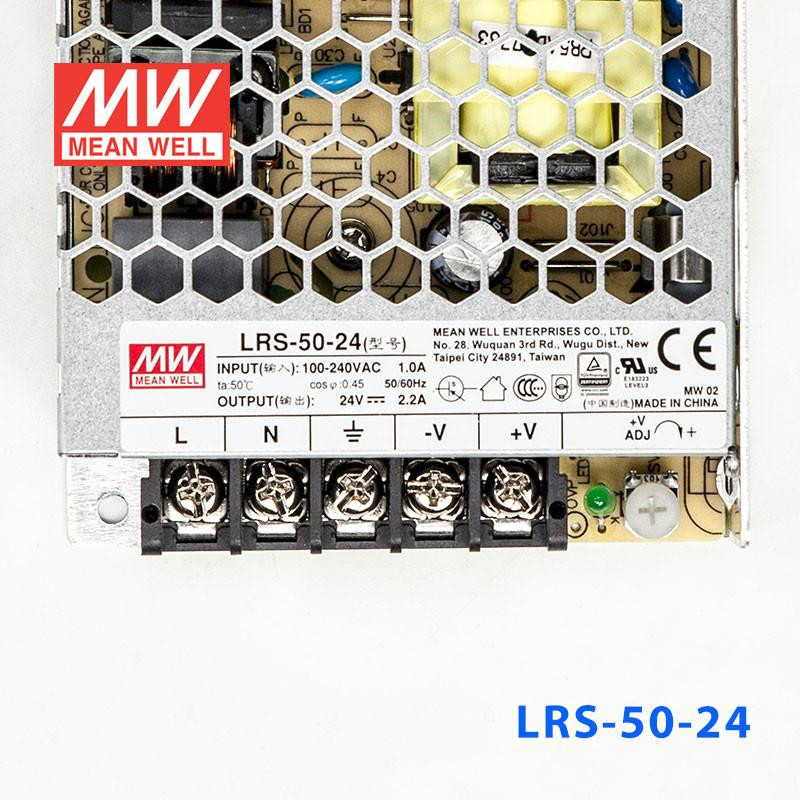

Connection5P/9.5mm pitch terminal block
Dimension (LxWxH)99x 82x 30

Related Documents:-

 LRS-50 Datasheet

 LRS-50-24 Test Report

 CE Certificate (LRS-50)

 UL Certificate (LRS-50)

 CB(60950) Certificate (LRS-50)

 CB(61558) Certificate (LRS-50)

 TUV(60335) Certificate (LRS-50)

 TUV(60950) Certificate (LRS-50)

 TUV(61558) Certificate (LRS-50)

 EMC Certificate(LRS-50)

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

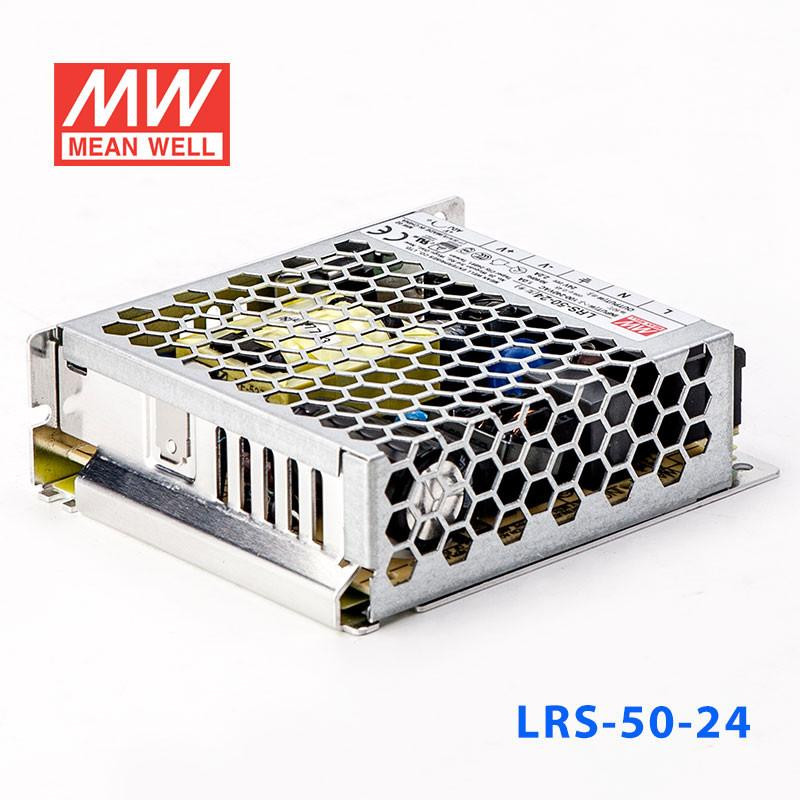

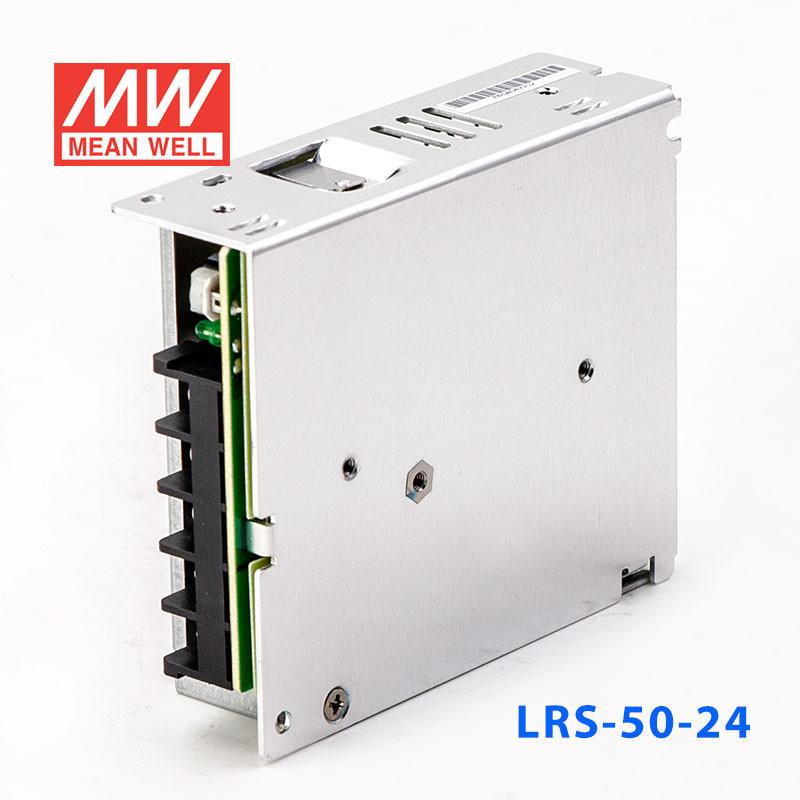

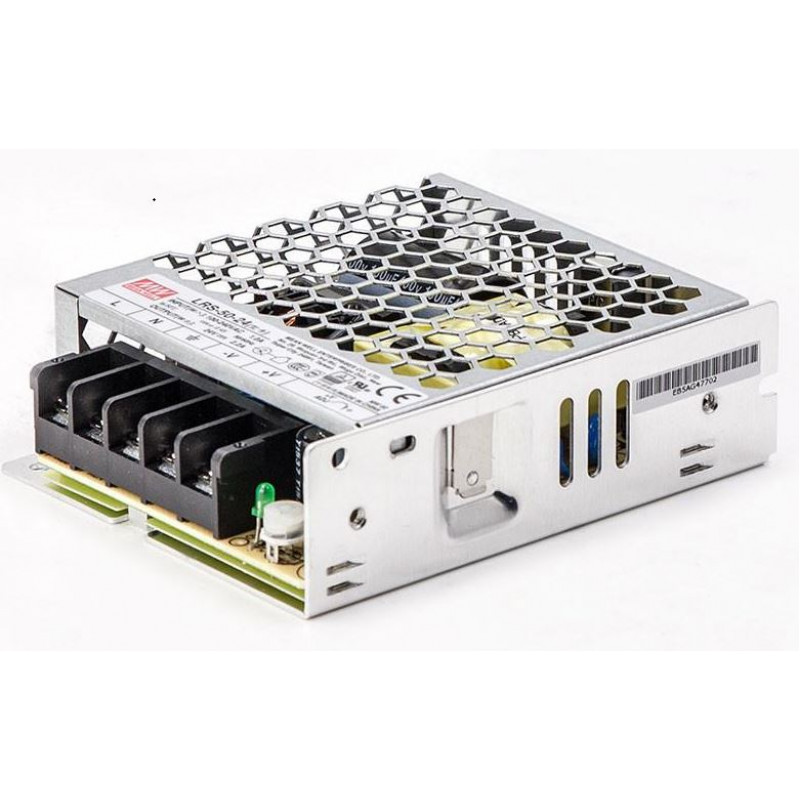

LRS-50-24 Mean Well SMPS - 24V 2.2A - 52.8W Metal Power Supply

  • Product Code: EC-2651
  • Availability: 184
  • Rs.807.00
