A helical antenna is an antenna consisting of one or more conducting wires wound in the form of a helix. A helical antenna made of one helical wire, it has been widely used in telecommunication to communicate. This antenna has a frequency range of 865MHz to 868MHz with a gain of 1.5dBi depending upon the PCB ground plane. One of the main reasons to use a helix antenna is its low cost and compact size.
Application: Sub GHz, Smart Meters, Long Range (LoRa), Low Power Radio (LPR)
Features:
- Compact Size.
- Low Cost.
- Right Angle version available on request
- Tin and Nickel plated for corrosion-free
- Antennas with a rubber sleeve to protect from sparks
Package Includes:
1 x LWC-868-HELIX-TIN-HSS-03 Helix Antenna
Specifications :-
| Model | LWC-868-HELIX-TIN-HSS-03 |
| Frequency (MHz) | 865 868 MHz |
| Gain | ~ 1.5 dBi (depends on PCB ground plane) |
| Impedance () | 50 |
| VSWR | < 1.5 |
| Polarization | Vertical |
| Power Handling (W) | 10 |
| HPBW | H: 3600 ; V: 300 |
| Connector | Direct Solder |
| Operating Temperature (C) | -10 to 45 |
| Humidity | 5 95% |
| Length (mm) | 15 |
| Diameter (mm) | 5.5 |
| Weight (gm) | 2 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 41.3 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

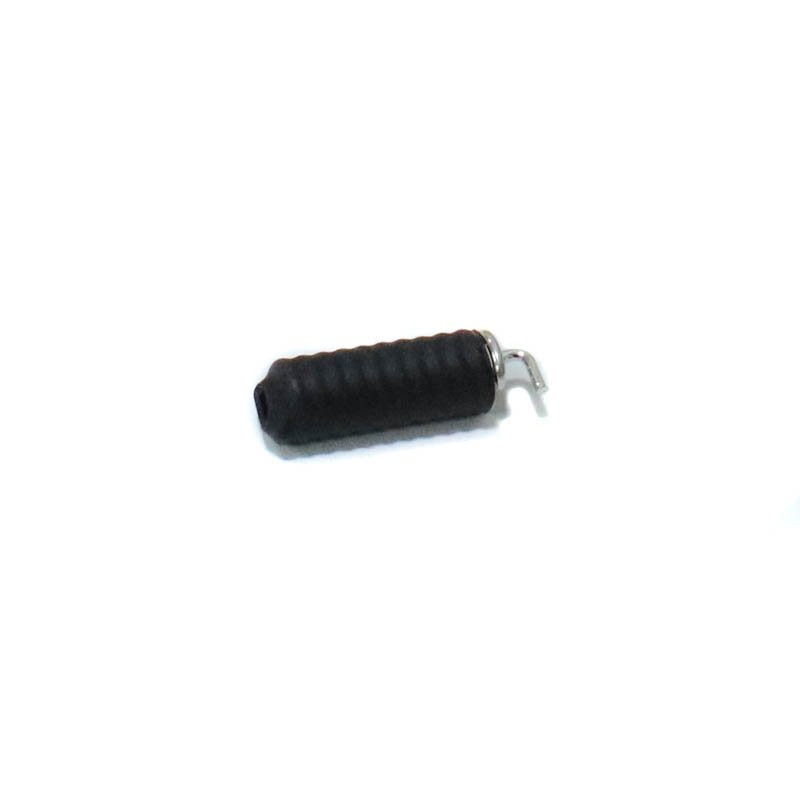

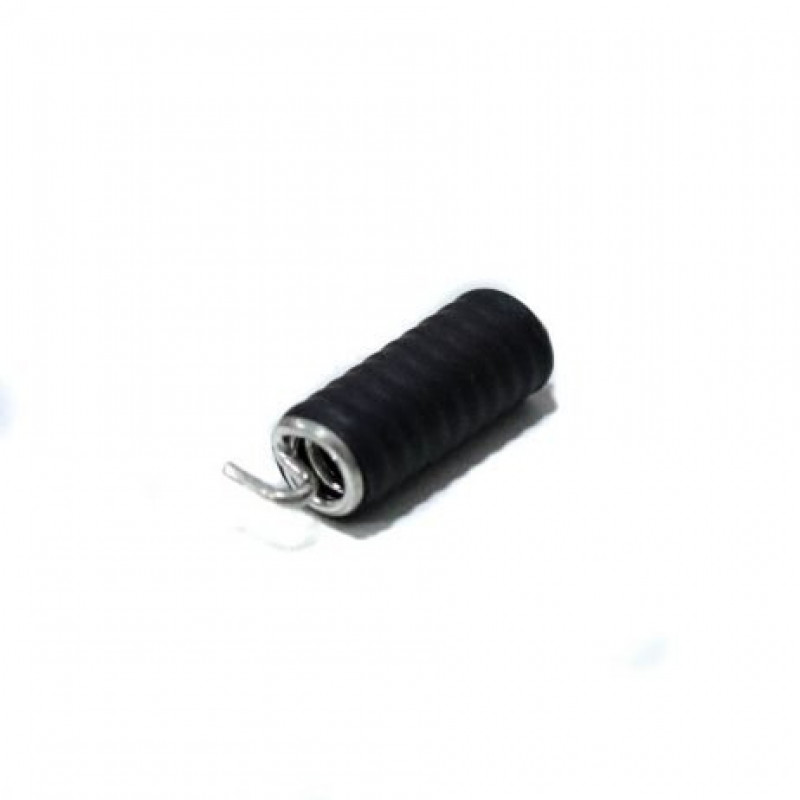

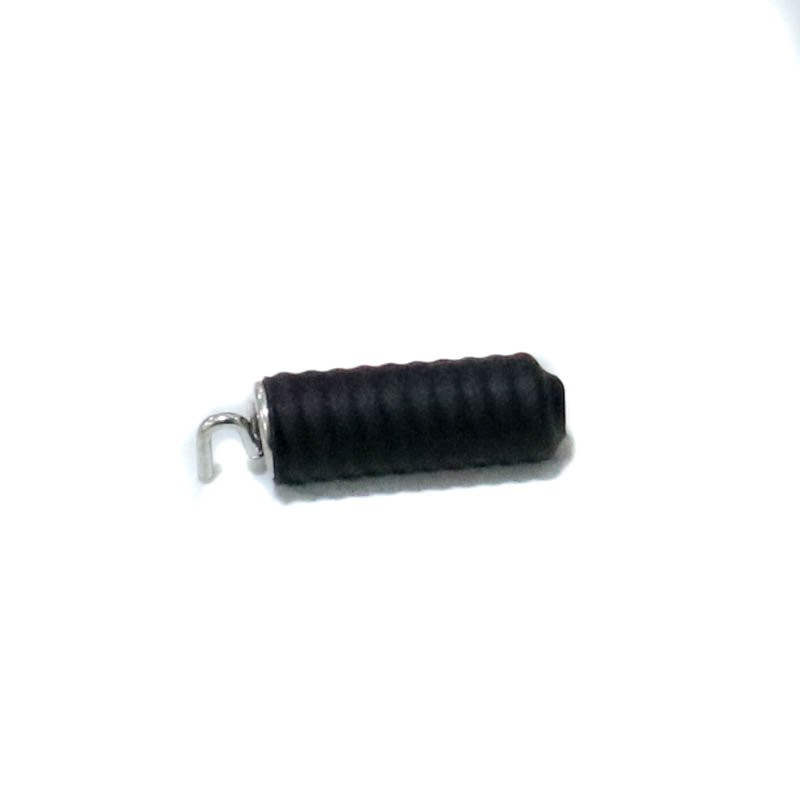

LWC-868-HELIX-TIN-HSS-03 Helix Antenna
- Product Code: EC-5993
- Availability: 78
-
Rs.32.00
- (Excluding 18% GST)
