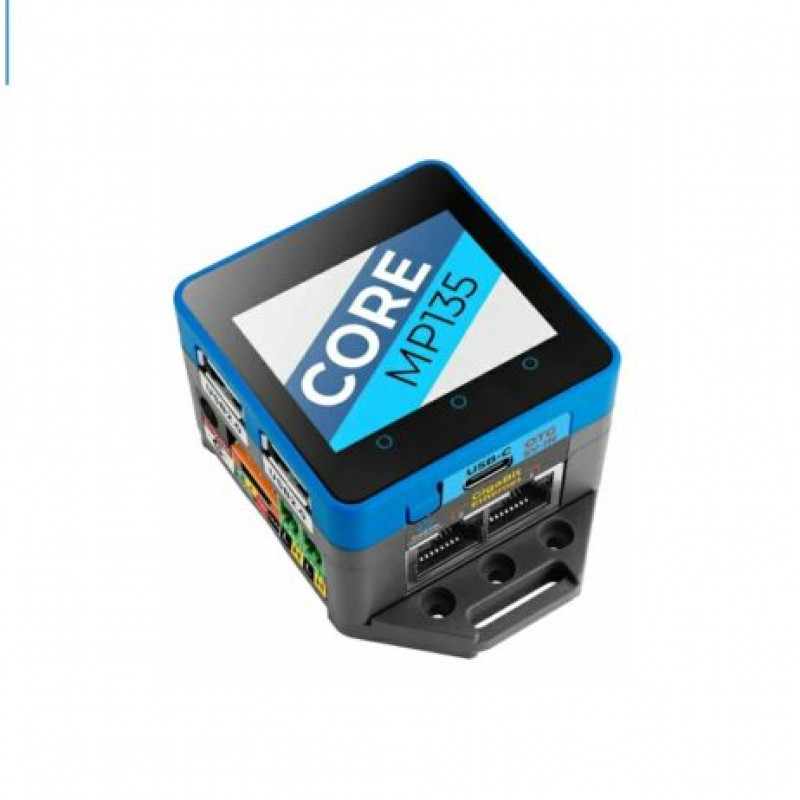

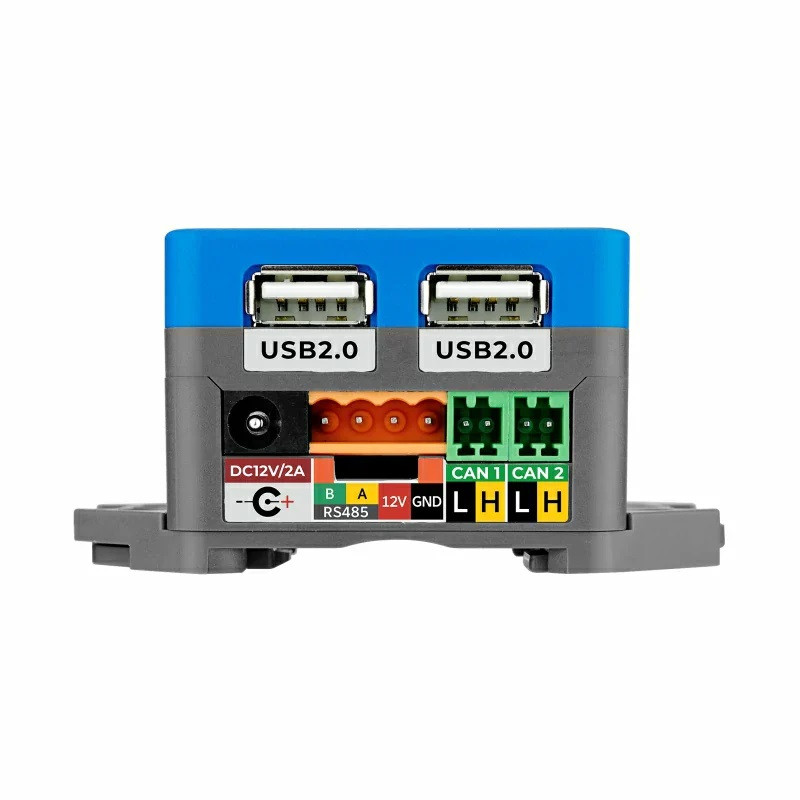

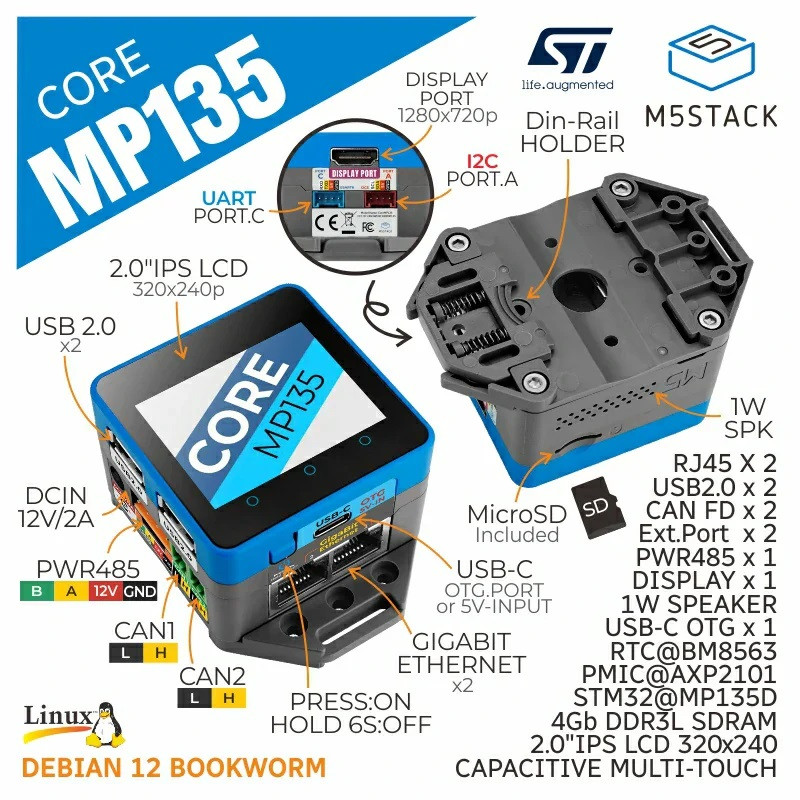

CoreMP135is an integratedLinuxindustrial control host based on theSTM32MP135DAE7chip. It features a single-core Arm Cortex-A7 processor with a frequency of up to 1GHz and is equipped with 4Gb DDR3L SDRAM for running memory. The device boasts a rich array of functional interfaces: it has 2 GbE ports, 1 HD video output, 2 USB 2.0-A ports, 1 USB-C port (supporting OTG and power supply), a MicroSD card slot, 2 CAN FD interfaces, and 1 PWR485 interface (9~24V power input + RS485), along with 2 Grove (I2C & UART) interfaces. In terms of human-machine interaction, it features a 2.0-inch IPS capacitive touch screen and a 1W speaker (16 bits I2S driven).

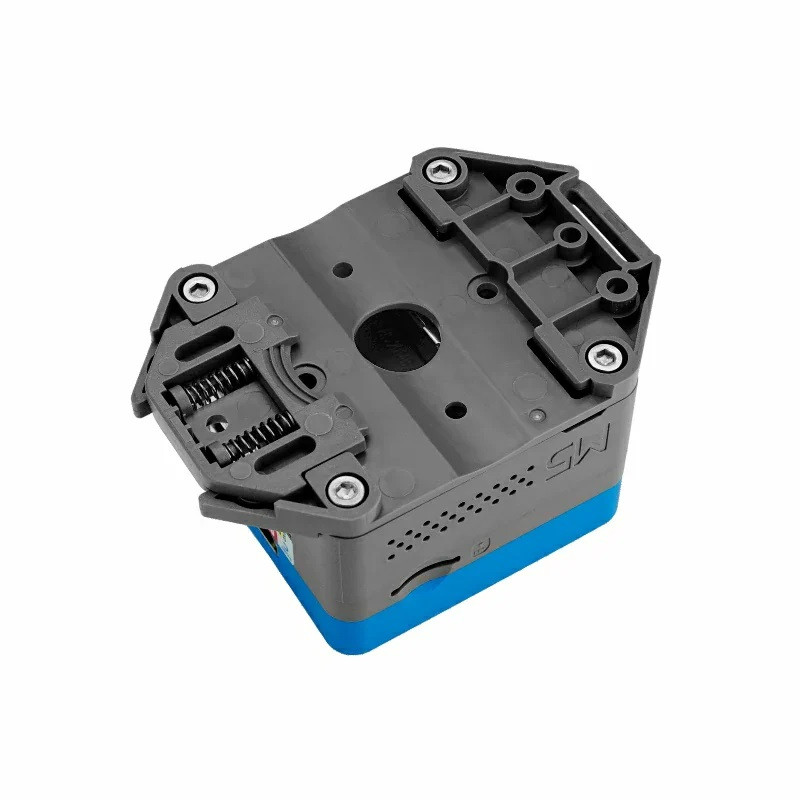

The device is designed for low power consumption, utilizing an AXP2101 power management chip and an integrated RTC (BM8563) for scheduled wake-up and sleep functions, and supports a rechargeable battery. It includes a DC power socket supporting an external DC12V@2A power supply. The host comes with a MicroSD card preloaded with Debian system, ready to use upon booting. Suitable for various installation scenarios, the devices bottom is equipped with a DIN rail base plate for easy wall mounting and screw fixing. It is applicable in advanced industrial automation, smart home and multimedia entertainment devices, industrial IoT edge gateways, and as a central hub for robot motion control.

Applications:

1. Automation in Industry
2. Smart Home
3. Industrial IoT Edge Gateway
4. Education and development
5. Robot motion center controller

Features:

1. STM32MP135DAE7@Arm Cortex-A7@1GHz
2. Linux Standard Platform
3. Rich peripheral interfaces (CAN\RS485\ gigabit network port, etc.)
4. 2.0 touch screen
5. PMU
6. Audio Output
7. MicroSD and 4Gb DDR3L SDRAM running memory
8. M5BUS&PORT A / C
9. DIN Rail rails are easy to install
10. Power Amplifier: NS4168 (mono Class D power amplifier)
    I2S serial digital audio input
    Supports a wide range of sampling rates: 8kHz~96kHz
11. Ethernet: RTL8211F (supports up to 1Gbps data rate)
    2x RJ45
12. USB Hub Interface: GL852G (2x USB2.0)
    1x USBC (Support OTG and power supply)

Package Includes:

1 x CoreMP135

1 x M3 hex wrench

1x VH3.96-4P

2 x Terminal 2.54mm-2P(green)

1 x MicroSD Card(already installed in the machine)

1 x Specification
