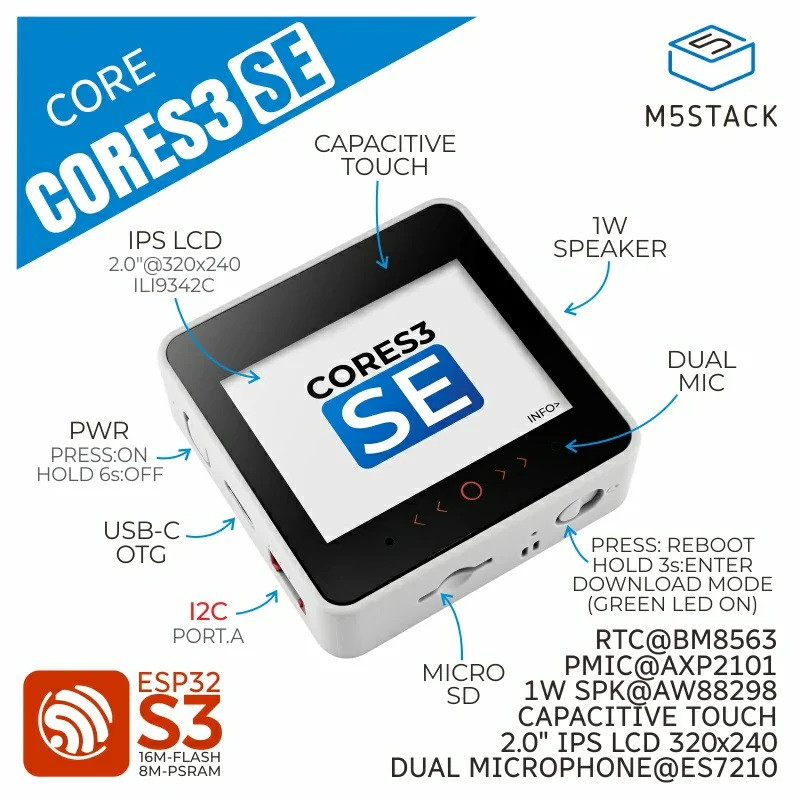

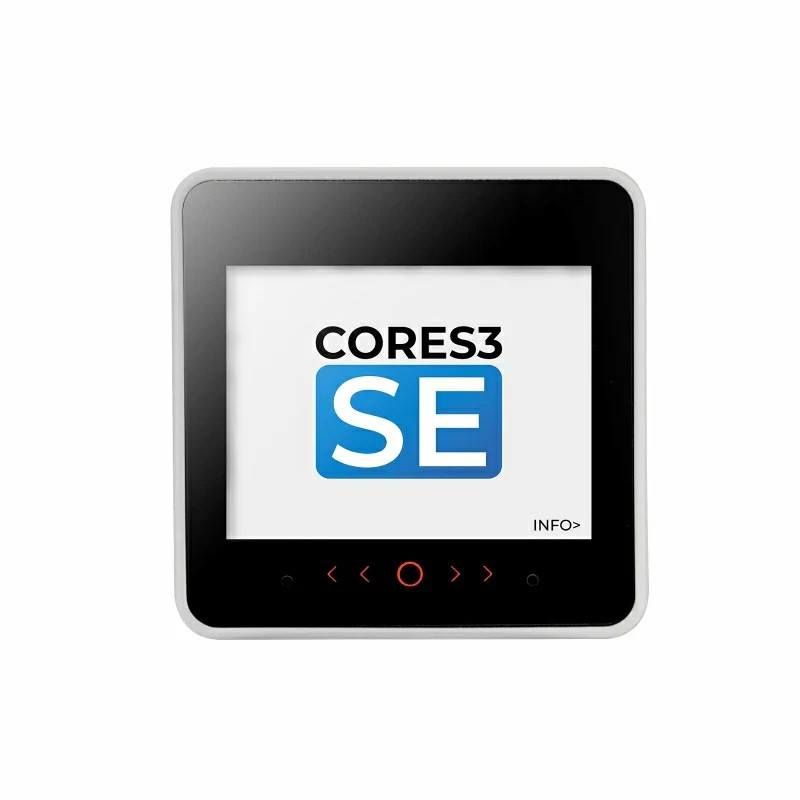

TheM5CoreS3 SEis a lightweight version of the third-generation CoreS3 main unit in the M5Stack development kit series. It is powered by theESP32-S3solution, featuring a dual-core Xtensa LX7 processor with a main frequency of 240MHz, and comes with built-in(2.4G)WiFifunctionality. It has onboard 16MB FLASH and 8MB PSRAM; programs can be downloaded via the TYPE-C interface, which supportsOTG and CDCfunctions, making it convenient to connect USB devices and burn firmware. The front is equipped with a 2.0-inch capacitive touch IPS screen, with a high-strength glass panel.

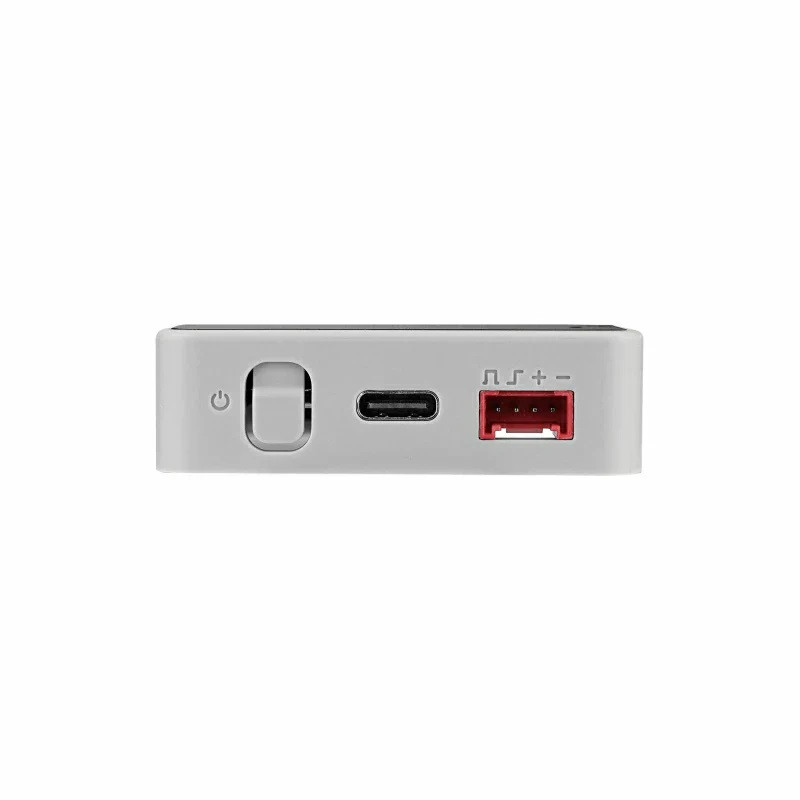

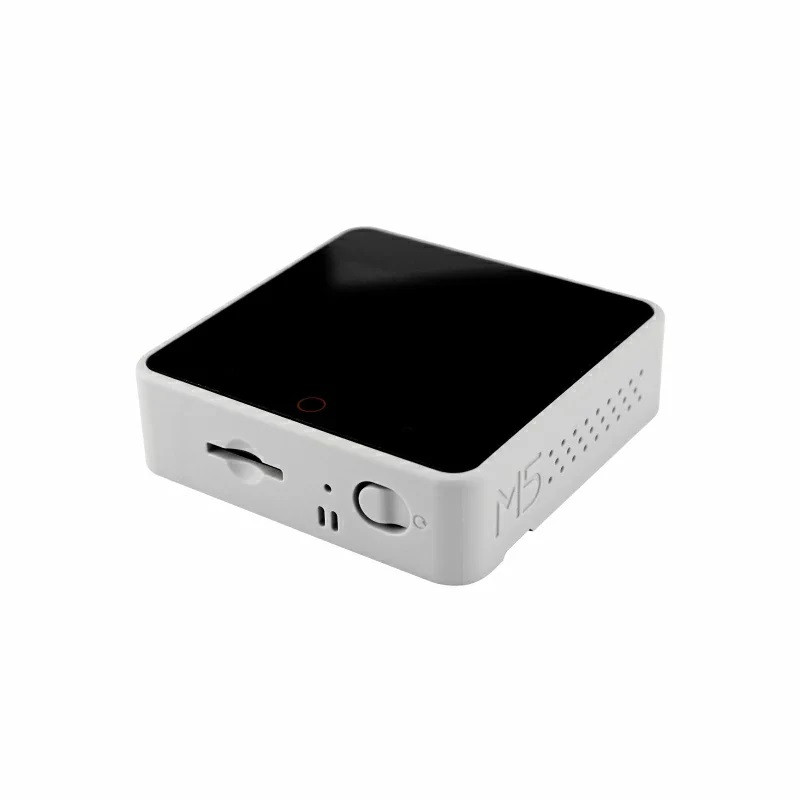

The power supply part uses the AXP2101 power management chip and 4-way power flow control circuit, designed for low power consumption overall. It has an onboardMicroSDcard slot and a BM8563 RTC chip that provides precise timing and sleep-timer wake-up functions. For sound output, it uses a high-fidelity 16-bit I2S amplifier chip AW88298 and has a built-in1W speaker. For sound input, it uses an ES7210 audio decoding chip withdual microphone input. The device body has an independent power button and reset (RST) button on the side, with a built-in delay circuit. Long pressing the reset button enters program download mode. This product is suitable forIoT development, various DIY project development, smart home control systems, and industrial automation control systems.
Applications:
- IoT development
- Various DIY project development
- Smart home control system
- Industrial automation control system
Features:
- Developed based on ESP32-S3, support WiFi @16MB Flash, 8MB PSRAM
- Speakers,Dual microphones
- Capacitive touch screen
- MicroSD card slot
- High-strength glass
- Support OTG and CDC functions
- AXP2101 power management, low power design
- Supported programming platforms: Arduino, UIFlow
- Grove Output maximum current (lithium battery powered): DC4.2V/940mA
- Grove Output Maximum current (USB powered): DC5V/680mA
- Power Dissipation: Battery: Standby mode: DC4.2V/104.64uA Working mode:DC4.2V/109.67mA
USB power supply: In working mode: DC5V/166.27mA
Package Includes:
1 x M5Stack CoreS3 SE IoT Controller w/o Battery Bottom
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
M5Stack CoreS3 SE IoT Controller w/o Battery Bottom
- Product Code: EC-26074
- Availability: Out Of Stock
-
Rs.4823.00
- (Excluding 18% GST)
