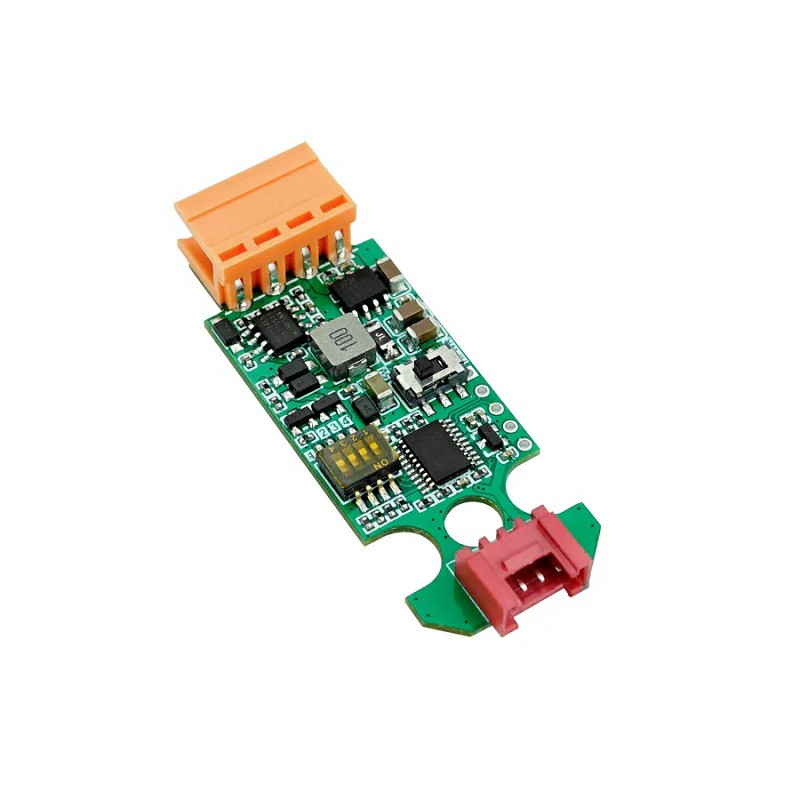

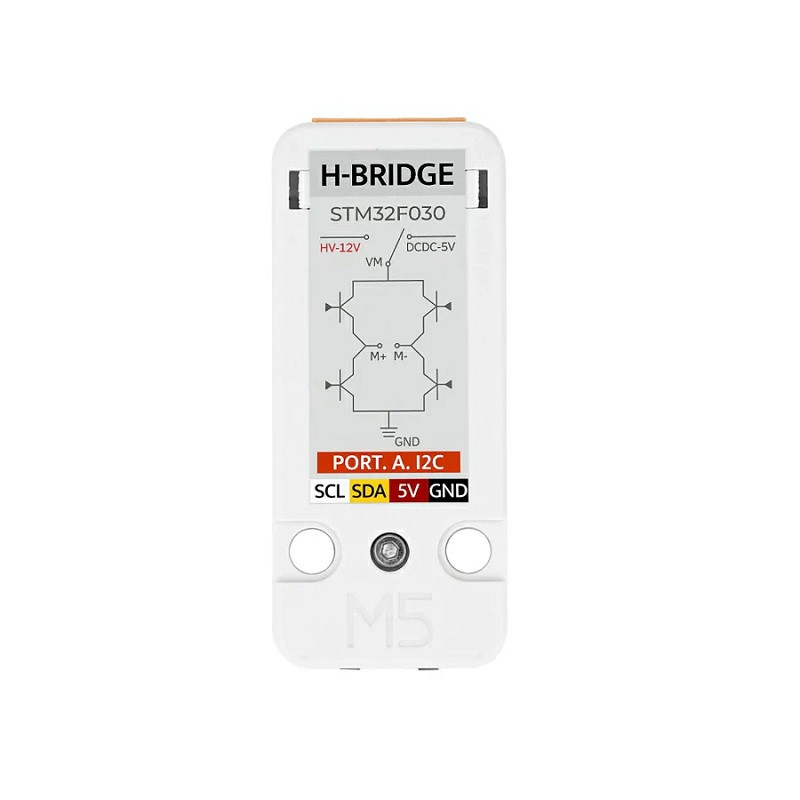

Hbridge Unitis a DC motor drive module,using "STM32F030+RZ7899" scheme to realize the motor drive function, and using I2C communication with the M5 host to realizePWMcontrol speed,forward, backward and brakingfunctions. The module has reliableover-current, over-voltage, over-temperature protection function, which can ensure the safe operation of the motor, and also has 6-12V and 5V switching circuits in the circuit to adapt to the input power requirements of different motors, which are widely used in robots, motor drives, industrial automation, smart homes, and other fields
Features:
- Over-current, overvoltage, and over-temperature protection
- Power switching
- I2C address: Default 0x20
- Programming platform: Arduino, UIFlow
Package Includes:
1 x M5STACK H-bridge Unit(STM32F030)
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

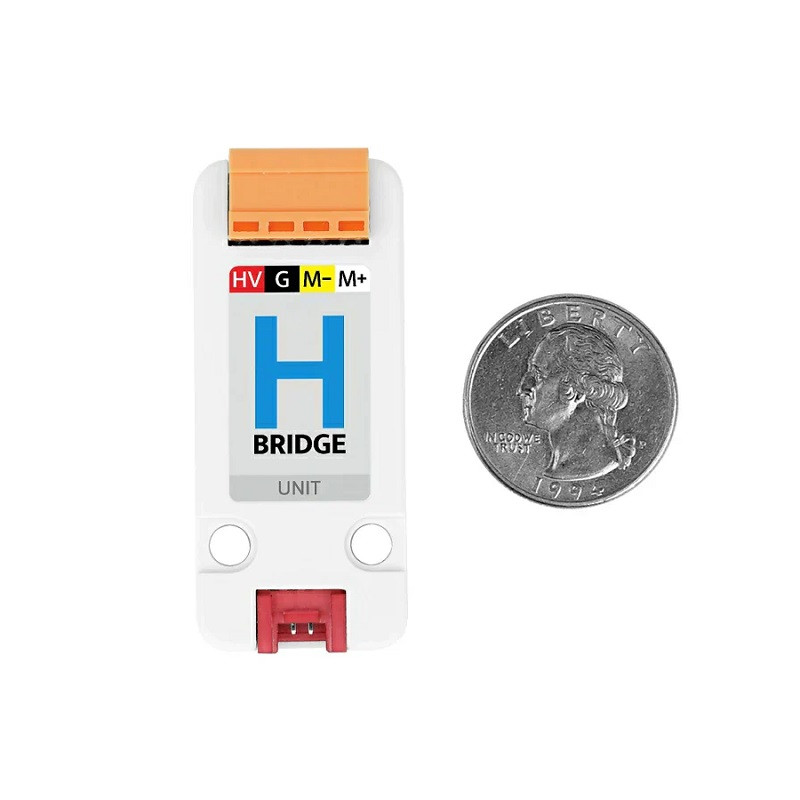

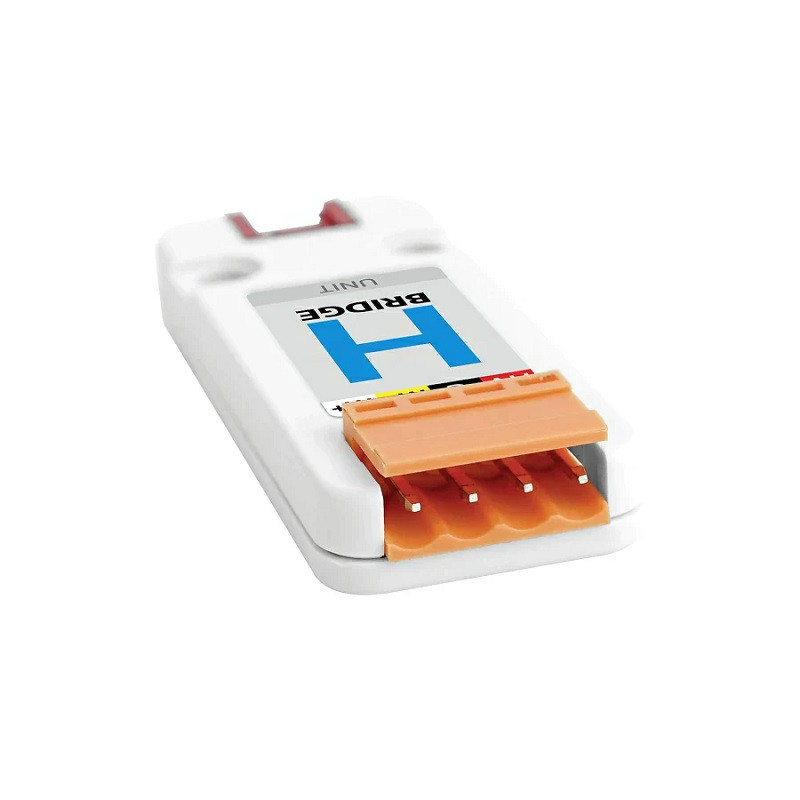

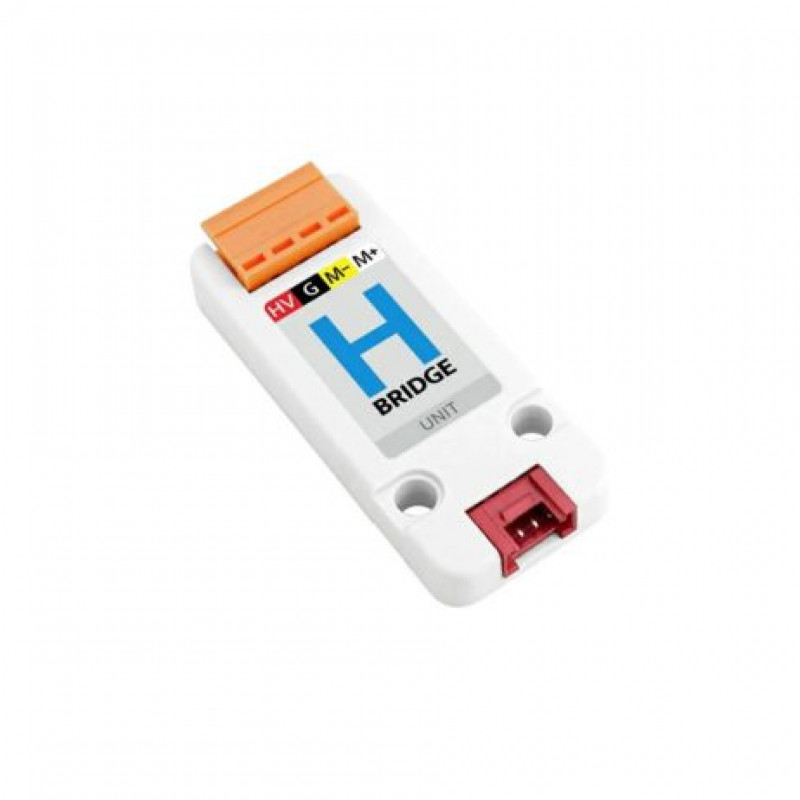

M5STACK H-bridge Unit(STM32F030)
- Product Code: EC-20105
- Availability: Out Of Stock
-
Rs.932.00
- (Excluding 18% GST)
