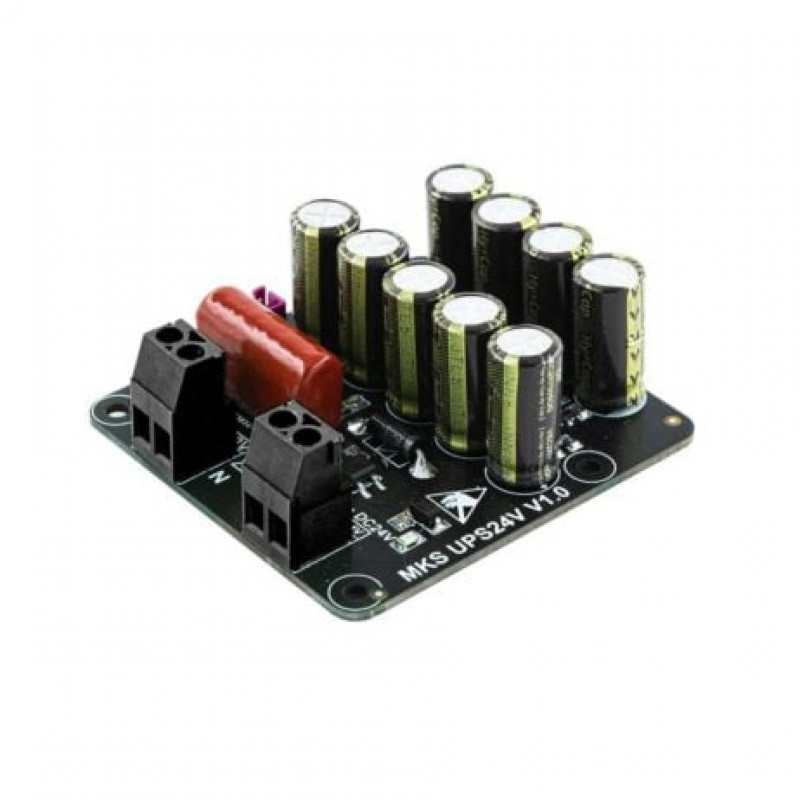

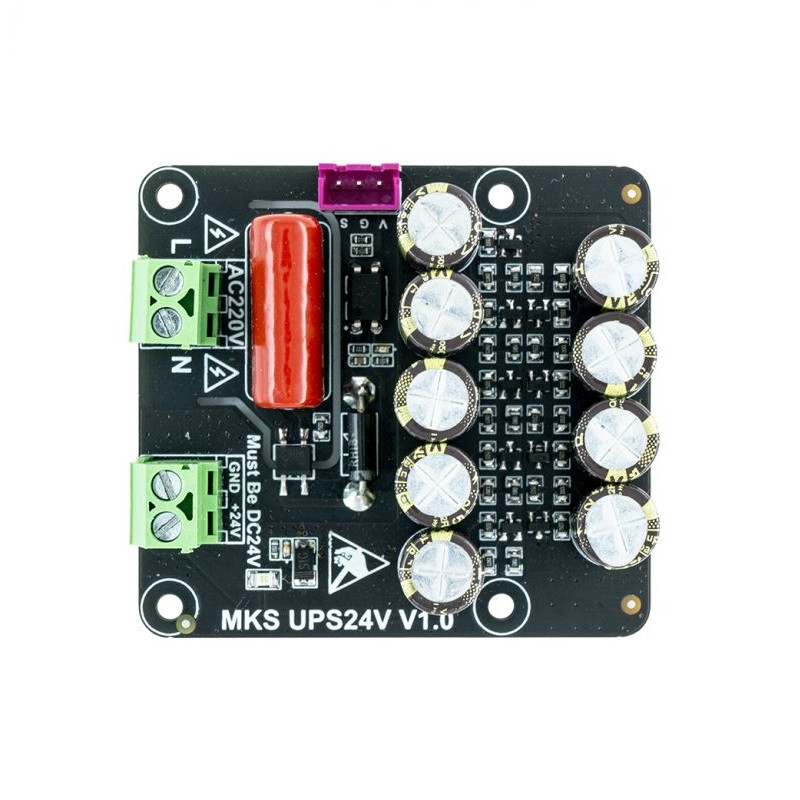

Makerbase MKS UPS module is used to lift the Z axis when the power is off. It can remove the extruder from the model to protect the model.

Working Process:
1. When the AC power supply is cut off, the MKS UPS detects it and sends a signal to the motherboard;
2. The power stored in the MKS UPS and PSU continues to supply power to the motherboard;
3. Motherboard detects the power-off signal, stops printing, turns off hotbed and hotend, lifts z-axis;
4. The power stored in MKS UPS is generally lifted z-axis 20mm-200mm;
5. When the power supply is restored, resume printing through the 12864/2004 LCD screen.

Note:
-MKS UPS24V can only be used for DC 24V power.
-Motherboard needs to use Marlin2.0 firmware with 12864/2004 LCD screen.
-Temporarily does not support MKS Robin series (except Robin E3 / E3D) and MKS TFT screen.
-MKS UPS12V and MKS UPS24V modules detect external AC power supply.

Features:

1. 24V DC power supply for compatibility with various devices.
2. Multiple output ports for simultaneous power supply to multiple devices.
3. User-friendly interface with LCD display or LED indicators
4. Battery monitoring for real-time status updates.
5. Acts as an uninterruptible power supply (UPS) for backup power during outages.

Packages Includes:

1 x MakersBase-MKS UPS24V For Power Outage Detection 3D Printer Parts

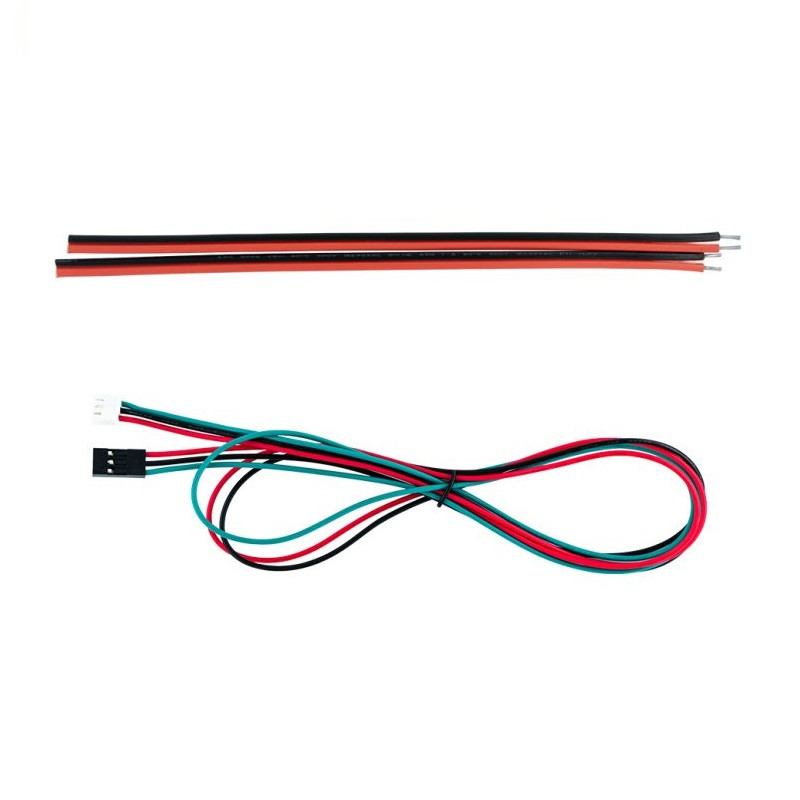

2 x Power Cable

1 x 3 Pin Motherboard Cable
