Features of the weather resistant MB7369, HRXL-MaxSonar-WRM, include millimeter resolution, short to long distance detection, range information from 300mm to 5000mm to the target with the largest acoustic return, a 6.7Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

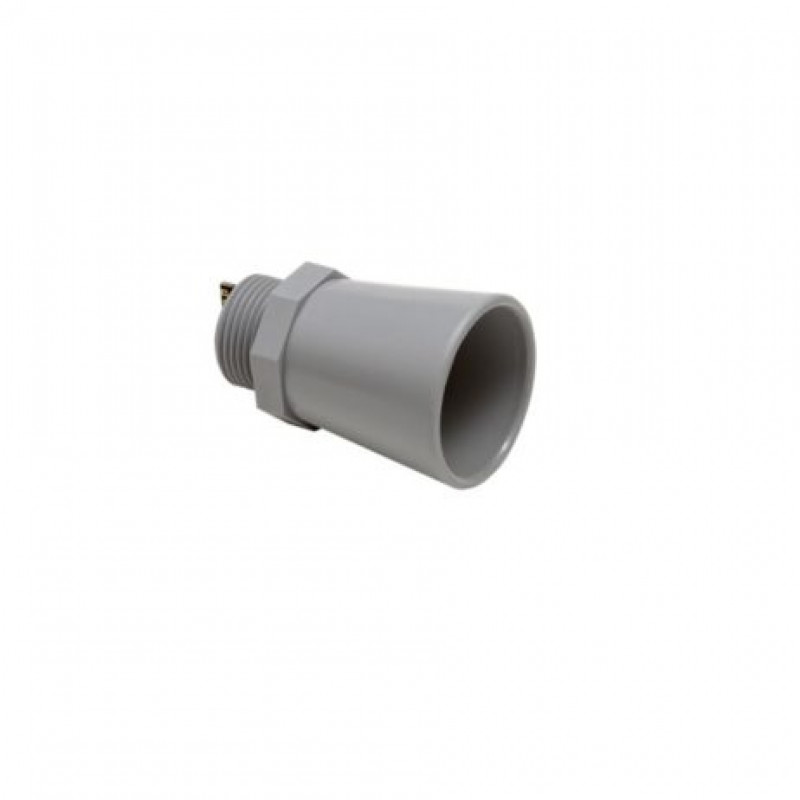

The MB7369 from the HRXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing which meets the IP67 water intrusion standard and matches standard electrical 3/4inch PVC pipe fittings (this product has multiple housing options available).

The HRXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

The MB7369 is designed to report the distance to the largest acoustic return while ignoring smaller targets. When targets are of similar amplitude reflections, preference is given to the closest target. This gives users the flexibility to consistently detect larger targets in the presence of clutter and noise.

If the largest target is removed from the field of view, the MB7369 will switch to the target that gives the next largest detectable return. This filtering makes the MB7369 one of our most advanced sensors for outdoor tank and bin applications.

In addition, the MB7369 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, realtime background automatic calibration, realtime waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Note: For more technical details go through Datasheet in the attachment section

Features:

1. Long, narrow detection zone
2. Our most advanced weather-resistant, ultrasonic sensor
3. Additional stability filter rejects anomalous readings
4. Detects the largest signal return in the field of view
5. Uses the complete dynamic range of the sensor, if no large targets are present the sensor will select the next smallest target in view
6. Can be used to range large objects behind small obstructions
7. Best sensor for bin and tank level measurements

Packages Includes:

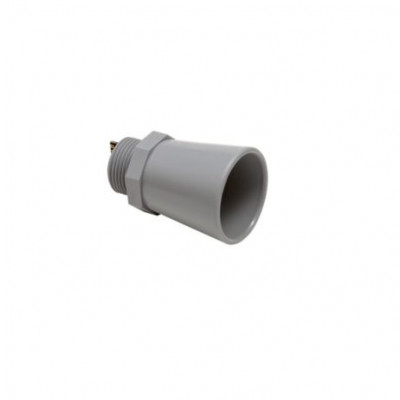

1 x Maxbotix MB7369-100 HRXL-MaxSonar-WRM Ultrasonic Sensor
