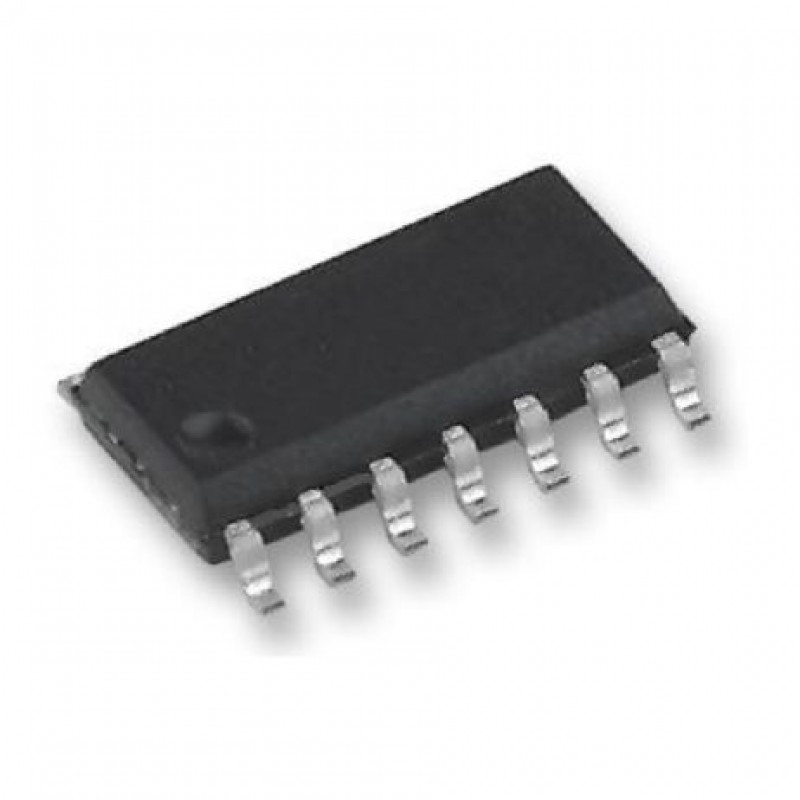

This is MC14001BDG ONSEMI Logic IC, NOR Gate, Quad, 2 Inputs, 14 Pins, SOIC, 4001 IC. The MC14001BDG is a quad 2-input NOR Gate is constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). This device find primary use is where low power dissipation and/or high noise immunity is desired.
Note: Refer to datasheet in the attachments section for more info. regd. the product.
Features:
- All outputs buffered
- Capable of driving two low-power TTL loads or one low-power schottky TTL load
- Double diode protection on all inputs
- Pin-for-Pin replacement for corresponding CD4000 series B suffix device
- Without Schmitt Trigger Input
- Output Current: 8.8mA
Package Includes:
1 x MC14001BDG ONSEMI Logic IC, NOR Gate, Quad, 2 Inputs, 14 Pins, SOIC, 4001
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
MC14001BDG ONSEMI Logic IC, NOR Gate, Quad, 2 Inputs, 14 Pins, SOIC, 4001
- Product Code: EC-18949
- Availability: Out Of Stock
-
Rs.48.00
- (Excluding 18% GST)
