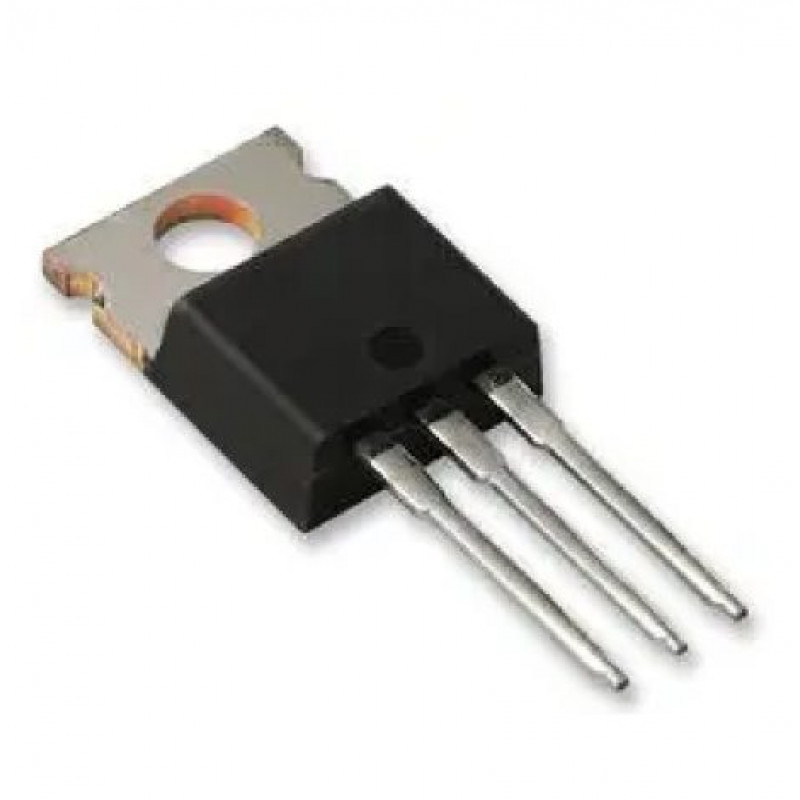

The MC7815CTG is a fixed output positive linear voltage regulator in 3 pins TO-220 package. This monolithic integrated circuit is designed as a fixed voltage regulator for a wide variety of applications including local and oncard regulation. This regulator employs internal current limiting, thermal shutdown, and safe area compensation.
Features:
- Fixed output voltage of 15V
- 1A output current
- Dropout voltage of 2V at 1A output current
- Maximum input voltage of 35V
- No external components required
- Output voltage offered in 1.5%, 2%, and 4% tolerance
- Operating temperature ranges from 0C to 125C
Package Includes:
1 x MC7815CTG ONSEMI Linear Voltage Regulator, 7815, Fixed, Positive, 23V To 35V In, 15V And 1A Out, TO-220-3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
MC7815CTG ONSEMI Linear Voltage Regulator, 7815, Fixed, Positive, 23V To 35V In, 15V And 1A Out, TO-220-3
- Product Code: EC-18671
- Availability: 131
-
Rs.45.00
- (Excluding 18% GST)
