The MCP1525T-I/TT is a low-power, high-precision voltage reference in 3 pin SOT-23 package. This voltage reference is normally used in 3V to 5V systems where wide variations in supply voltage exist and need to minimize power dissipation. The MCP1525 uses a combination of an advanced CMOS circuit design and EEPROM trimming to provide an initial tolerance of 1% and temperature stability of 50ppm/C. This device offers a clear advantage over traditional zener techniques in terms of stability across time and temperature.
Note: For more technical details go through Datasheet in the attachment section.
Features:
- Low quiescent current of 100A (maximum)
- Output voltage of 2.5V
- 2mA output current drive
- The maximum input current of 100A at 25C
- Operating temperature ranges from -40C to 85C
Package Includes:
1 x MCP1525T-I/TT MICROCHIP Voltage Reference, Precision, Series Fixed, MCP1525 Series, 2.5V, SOT-23-3
Attachments :
Download
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 79.06 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

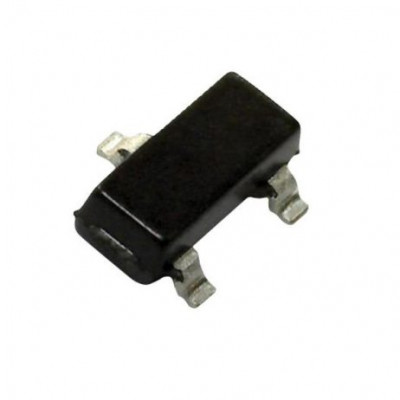

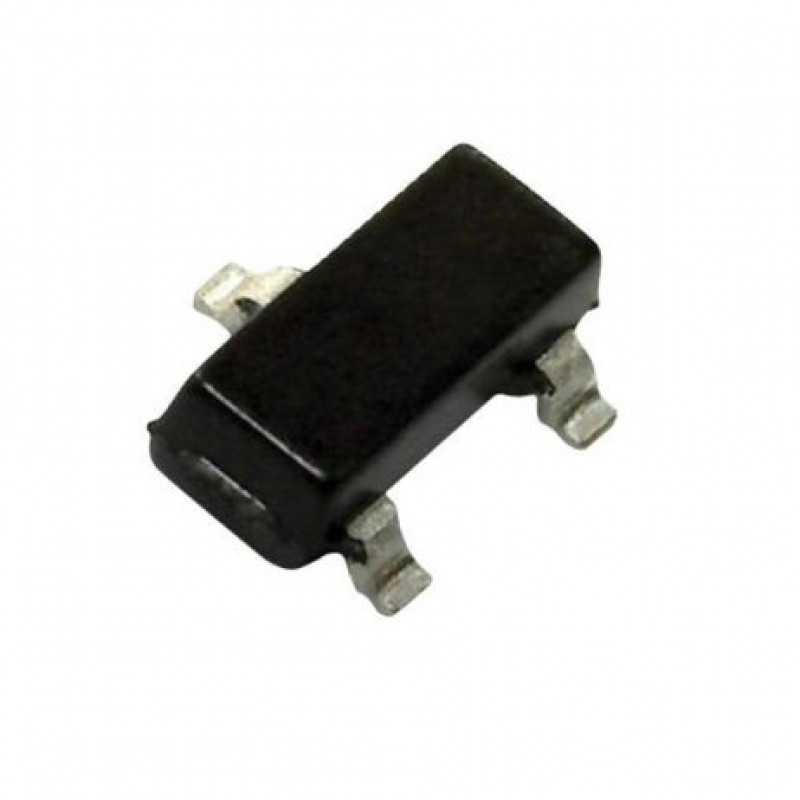

MCP1525T-I/TT MICROCHIP Voltage Reference, Precision, Series Fixed, MCP1525 Series, 2.5V, SOT-23-3
- Product Code: EC-18670
- Availability: Out Of Stock
-
Rs.70.00
- (Excluding 18% GST)
