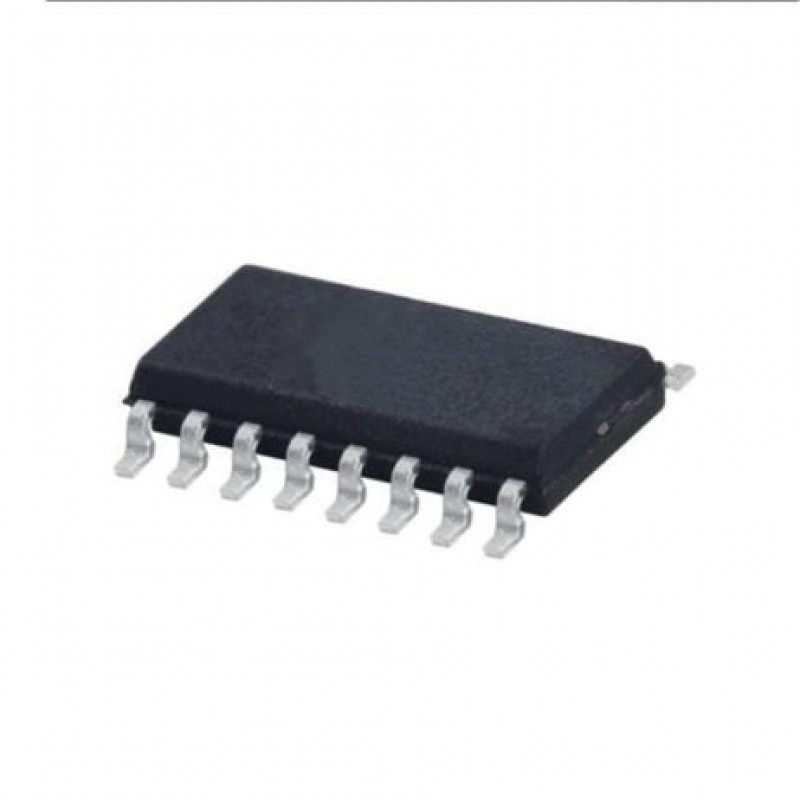

The MCP3008-I/SL is an 8-channel, 10-bit Analogue to Digital (ADC) Converter with an SPI interface in 16 16-pin SOIC package. This ADC combines high performance and low power consumption in a small package making it ideal for embedded control applications. The MCP3008 features successive approximation register (SAR) architecture with onboard sample and hold circuitry allowing 10bit ADC capability to be added to any PIC microcontroller. It is programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential nonlinearity (DNL) and integral nonlinearity (INL) are specified at 1LSB. Communication with devices is accomplished using a simple serial interface compatible with SPI protocol. Low current design permits operation with typical standby currents of only 5nA (2A maximum) and typical active currents of 320A (500A maximum).

Applications:

Signal Processing, Test & Measurement, Sensing & Instrumentation, Industrial, Motor Drive & Control, Robotics, Automation & Process Control, Portable Devices, Medical, Automotive

Features:

1. Analogue inputs programmable as single-ended or pseudo-differential pairs
2. Single supply operation from 2.7V to 5.5V
3. The maximum sampling rate is 200KSPS at VDD=5V
4. The maximum sampling rate is 75KSPS at VDD=2.7V
5. Low-power CMOS technology
6. Industrial temperature ranges from -40C to 85C

Package Includes:

1 x MCP3008-I/SL MICROCHIP Analogue to Digital Converter, Octal, 10 bit, 200 kSPS, Pseudo-Differential, Single Ended
