The MCP3428-E/SL is a 4-channel 16-bit Analogue-to-digital Converter (ADC) with IC interface and on-board reference. The onboard precision 2.048V reference voltage enables an input range of 2.048V differentially. The device uses a two-wire IC compatible serial interface and operates from a single power supply ranging from 2.7 to 5.5V. This device can output analog-to-digital conversion results at rates of 240 (12-bit mode) samples per second depending on the user-controllable configuration bit settings using the two-wire IC serial interface. During each conversion, the device calibrates offset and gain errors automatically. This provides accurate conversion results from conversion to conversion over variations in temperature and power supply fluctuation.
Applications:
Sensing & Instrumentation, Consumer Electronics, Test & Measurement, Automation & Process Control, Portable Devices, Industrial.
Note: For more technical details go through Datasheet in the attachment section.
Features:
- A 4-channel differential input operation
- Supports IC serial interface with user-configurable addresses
- On-board voltage reference with 15ppm/C drift
- On-board PGA, gains of 1/2/4/8
- 135A at 3V Low current consumption
Package Includes:
1 x MCP3428-E/SL MICROCHIP Analogue to Digital Converter, Programmable, 16 bit, 15 SPS, Differential, I2C, Single, 2.7 V
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |

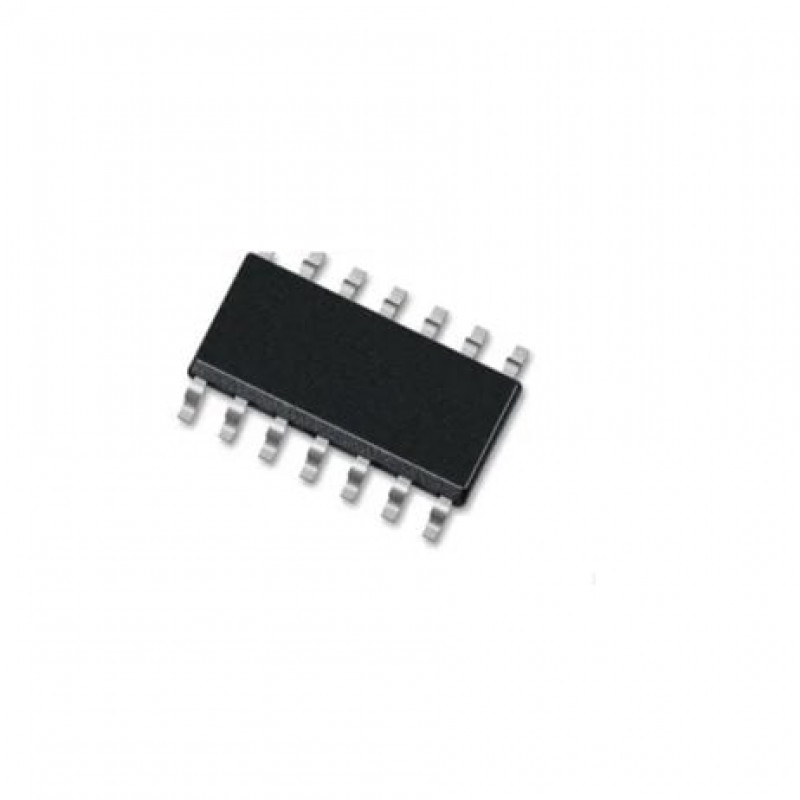

* Product Images are shown for illustrative purposes only and may differ from actual product.
MCP3428-E/SL MICROCHIP Analogue to Digital Converter, Programmable, 16 bit, 15 SPS, Differential, I2C, Single, 2.7 V
- Product Code: EC-18969
- Availability: Out Of Stock
-
Rs.471.00
- (Excluding 18% GST)
