The MCP4921-E/SN is a 12-bit voltage output Digital-to-Analogue (DAC) Converter with an SPI interface. This device is a single channel 12-bit DAC which uses an external voltage reference. This device offers high accuracy and low power consumption and is available in various packages. Communication with the device is accomplished via a simple serial interface using SPI protocols. DACs which use external voltage reference (VREF). This device provides very high accuracy and low noise performance. The user can shut down the device by setting the configuration register bit. In shutdown mode, most of the internal circuits are turned off for power savings, and the output amplifier is configured to present a known high resistance output load (500kR typical).
Applications:
- Industrial
- Motor Drive & Control
- Communications & Networking
- Automotive
Features:
- 12-bit Resolution
- 175A (typical) Operating current
- External voltage reference pin
- 4.5s Output settling time
- Rail-to-rail output
- SPI interface with clock speeds up to 20MHz
- External voltage reference input
- External multiplier mode
Package Includes:
1 x MCP4921-E/SN MICROCHIP Digital to Analogue Converter, 12 bit, Serial, 2.7V to 5.5V, SOIC, 8 Pins
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

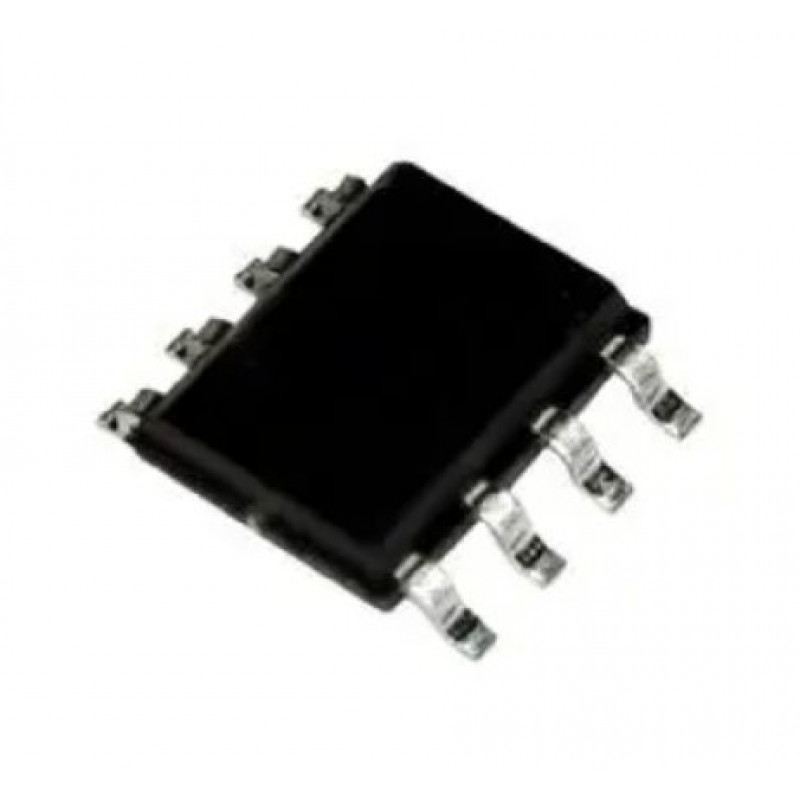

MCP4921-E/SN MICROCHIP Digital to Analogue Converter, 12 bit, Serial, 2.7V to 5.5V, SOIC, 8 Pins
- Product Code: EC-18899
- Availability: 210
-
Rs.265.00
- (Excluding 18% GST)
