The MCP6022-I/P is an Operational Amplifier that has a gain bandwidth product of 10MHz with a low typical operating current of 1.0mA and an offset voltage that is less than 0.5mV. The MCP6022 uses Microchips advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain, and rail-to-rail output swing. The MCP6022 operates with a single supply voltage that can be as low as 2.5V while drawing less than 1.35mA of quiescent current.
Applications:
Automotive, Audio, Test & Measurement
Note: For more technical details go through Datasheet in the attachment section.
Features:
- Trimmed for low offset voltage
- 1mA (typical) Low supply current
- Unity-gain stable
- Rail-to-rail input/output
- 8.7nV/Hz, at 10kHz (typical) Low noise
- 500V (industrial) and 250V (extended) Low offset voltage
- Mid-Supply VREF MCP6021 and MCP6023
- 0.00053% (typical, G = 1V/V) Total harmonic distortion
Package Includes:
1 x MCP6022-I/P MICROCHIP Operational Amplifier, Dual, 2 Amplifier, 10 MHz, 7 V/s, 2.5V to 5.5V, DIP, 8 Pins
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

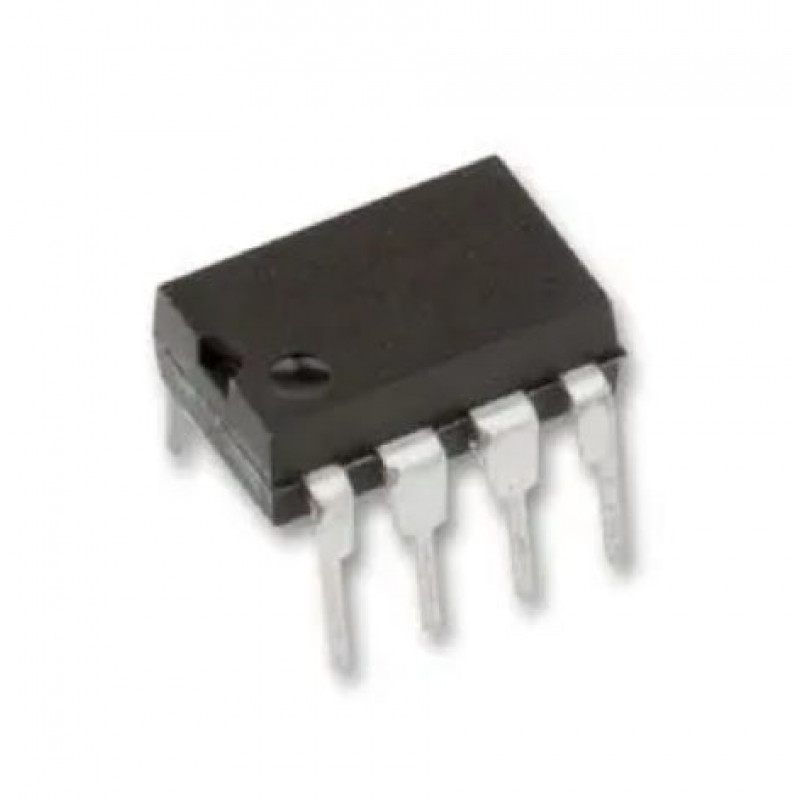

MCP6022-I/P MICROCHIP Operational Amplifier, Dual, 2 Amplifier, 10 MHz, 7 V/s, 2.5V to 5.5V, DIP, 8 Pins
- Product Code: EC-18966
- Availability: Out Of Stock
-
Rs.186.00
- (Excluding 18% GST)
