The MCP6567-E/SN is a low-power open-drain Output Comparator offered in dual configurations. This comparator is optimized for low-power 1.8V, single-supply applications with greater than rail-to-rail input operation. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The open-drain output of the MCP6567 family requires a pull-up resistor and it supports pull-up voltages above and below VDD, which can be used to level shift. The output toggle frequency can reach a typical of 4MHz while limiting supply current surges and dynamic power consumption during switching. This family operates with a single supply voltage of 1.8 to 5.5V while drawing less than 100A/comparator of quiescent current typical.

Applications:

Computers & Computer Peripherals, Consumer Electronics, Portable Devices, Clock & Timing, Security, Communications & Networking, Sensing & Instrumentation.

Note: For more technical details go through Datasheet in the attachment section.

Features:

1. 100A Low quiescent current
2. 3mV Input offset voltage
3. Microchip advanced part selector
4. Analogue demonstration and evaluation boards

Package Includes:

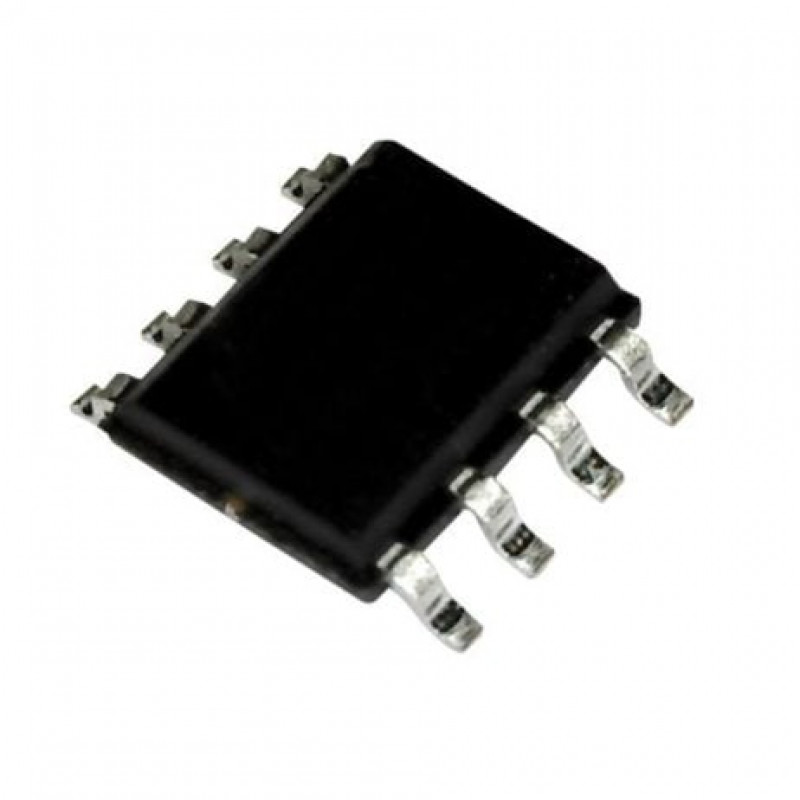

1 x MCP6567-E/SN MICROCHIP Analogue Comparator, Dual, High Speed, 2 Comparators, 56 ns, 1.8V to 5.5V, SOIC, 8 Pins
