The MA112 is a USB to UART Data Bridge controller. It includes a USB 2.0 full-speed function controller, USB transceiver, and 5V to 3.3V regulator. The UART function only supports the TXD and RDX on the RS-232 connection. Better than CH340. Operates without crystal.
Features:
- Standard USB Virtual COM Port device
- USB Full speed (12Mbps) operation and USB specification 2.0 compliant
- Built-in USB transceiver
- Integrated clock recovery, no external crystal required
- USB suspend states reported via UPD/nUPD pins
- Line Break detection and transmission
- Support multi-processor communication
Useful Links:
Terminal-PC
Package Includes:
1 x Megawin MA112AS16 IC
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

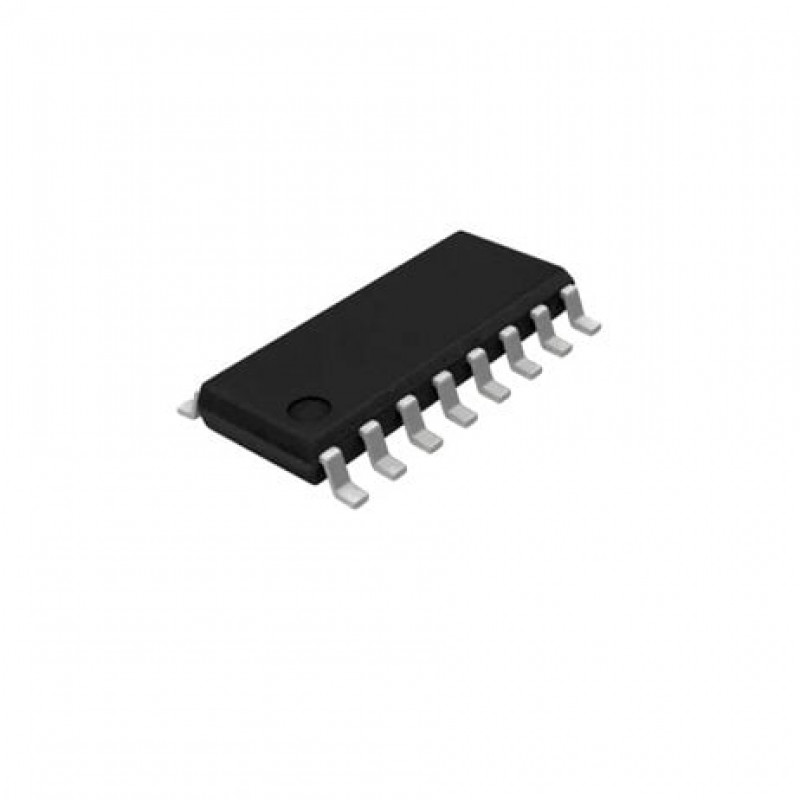

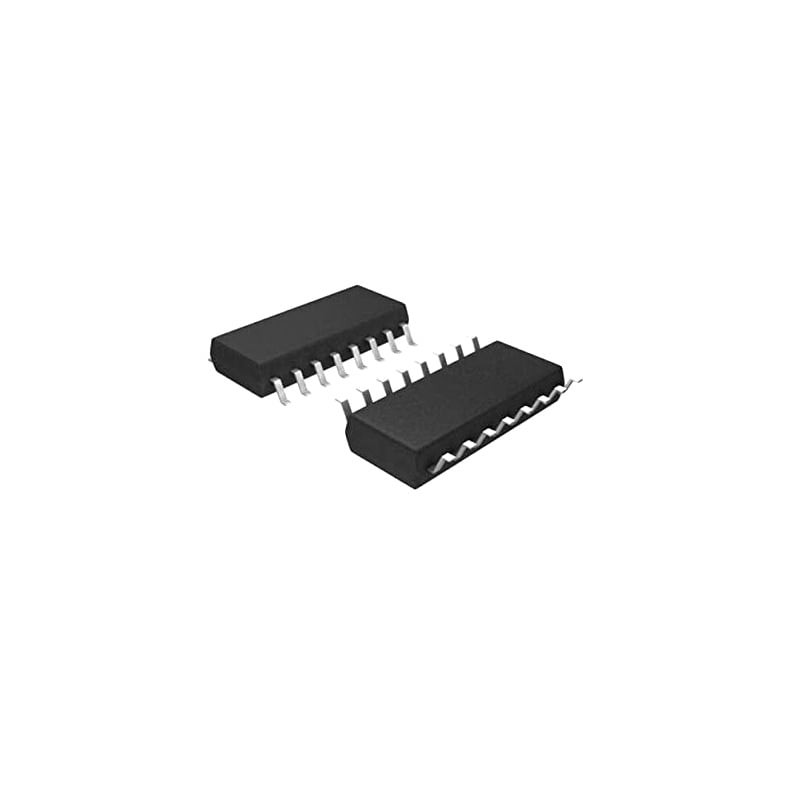

Megawin MA112AS16 ,16-SOP MCU
- Product Code: EC-23194
- Availability: Out Of Stock
-
Rs.52.00
- (Excluding 18% GST)
