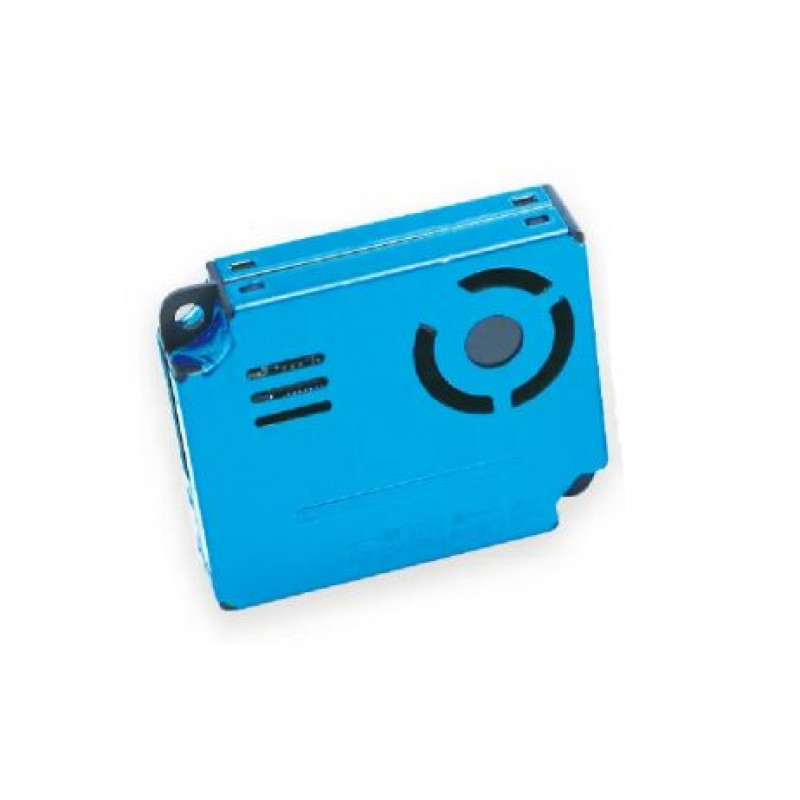

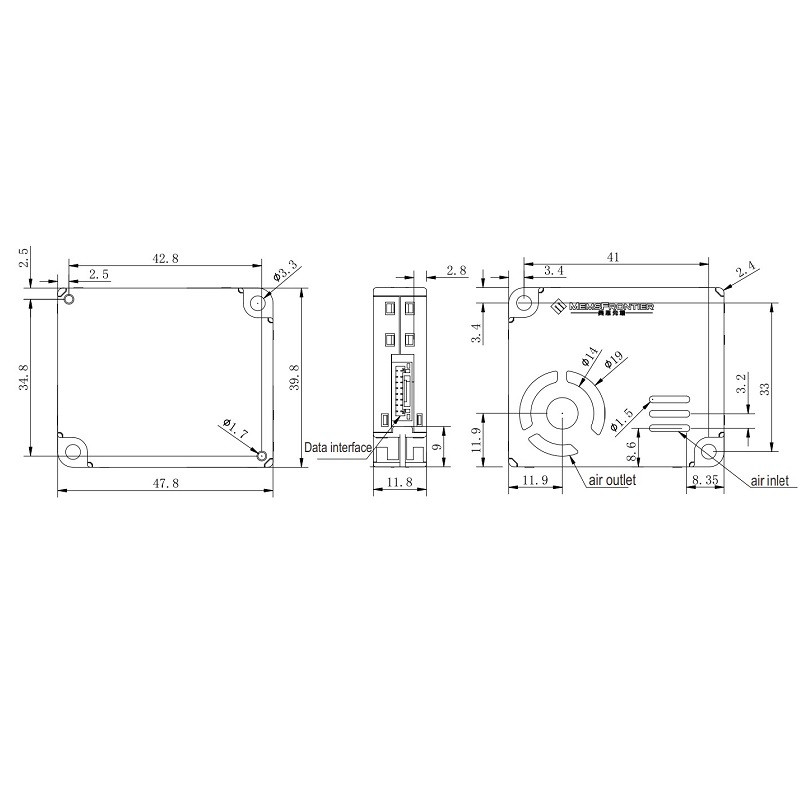

The Laser PM Sensor MPM12-BG stands as a cutting-edge solution for precise particulate matter (PM) detection, featuring strategically positioned air inlets and outlets on the front. With a GH1.25mm connector, this sensor ensures optimal air sampling and seamless connectivity for precise data acquisition.

Designed to monitor PM1.0, PM2.5, and PM10 particles, the MPM12-BG delivers a comprehensive assessment of particulate matter concentrations in the air. The front-mounted air inlets and outlets enhance adaptability to diverse monitoring environments, making it versatile for various applications.

This sensor boasts high detection accuracy, with a tolerance of 15g/m or 15% reading under standard conditions (at 252, 50%10%RH). Its efficient power-on settling time of less than 10 seconds ensures a swift response and real-time data acquisition.

Compact and robust, the MPM12-BG is engineered for durability and versatility, making it suitable for environmental monitoring, industrial processes, and research initiatives. By providing accurate and real-time data, the MPM12-BG significantly contributes to enhanced air quality awareness and supports pollution control efforts, fostering healthier and more sustainable living environments.

Note: This module does not come with a connector or a converter.

Features:

1. There are different types of particle detection, including PM1.0, PM2.5, and PM10.
2. The particle detection diameter range for this system is 0.3 to 10 micrometers.
3. The particulate matter concentration range, specifically for PM2.5 according to standard values, spans from 0 to 1000 micrograms per cubic meter (g/m3).
4. The Particle Mass Concentration Resolution achieved by the system is 1 g/m3.
5. Consistency in particulate matter concentration within the PM2.5 standard value exhibits a tolerance of 10% for concentrations between 100 and 500 g/m3, and 10 g/m3 for concentrations ranging from 0 to 100 g/m3.
6. The single response time of the system is remarkably swift, taking less than 1 second to provide accurate readings.
7. The data interface level is specified as follows:
   • For a low level (L), it should be less than 0.8 volts when operating at 3.3 volts.
   • For a high level (H), it should be greater than 2.7 volts when operating at 3.3 volts.

Package Includes:

1 x MemsFrontier Laser PM sensor(Air inlet and outlet are on the front, GH1.25mmconnector)-MPM12-BG
