Wi-Fi smart device enablement kit is designed to accelerate adding Alexa Voice Control to your existing application, enabling rapid prototyping. The kit allows you to use an Alexa Smart Speaker or the Alexa App to control the boards GPIO, interrogate its sensors, and change its LED colors.
Note: For more technical details go through Datasheet in the attachment section
Features:
- Wi-Fi 802.11 b/g/n Connectivity
- Amazon Web Service (AWS) IoT Cloud Connection
- Sensor Data Update to AWS IoT Shadow
- Compatible with Amazon Alexa
- Mobile Application for Board Registration and Control
- TLS1.2 Mutual Authentication Based on ECDSA with ECC608 Crypto Device
- Powered by Rechargeable 2000 mAh Lithium Battery or USB Interface
- Program/Debug by SWD Interface
- Supports Bootloader

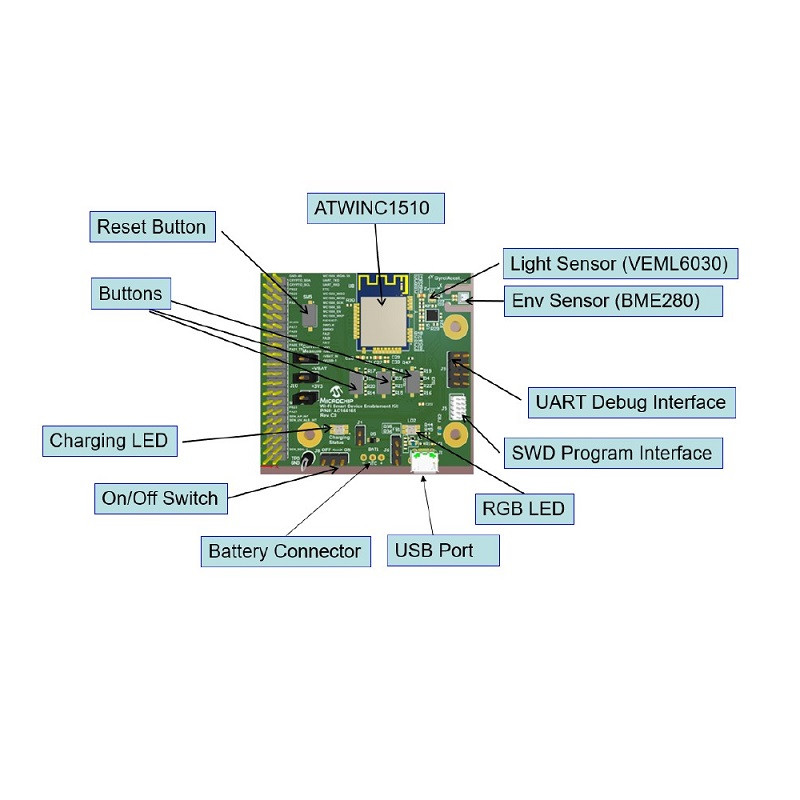

Specifications:
- Microcontroller: SAML21G18B
- RAM: 40 KB
- Program Memory: 256 KB
- Network Controller: TWINC15x0 IEEE 802.11 b/g/n
- Crypto Authentication device: ATECC608A
- Charge management controller: MCP73833 Li-Ion/Li-Po
- Light sensor: VEML6030
- User interface: Three buttons and one RGB LED
- Program/Debug interface: SWD
- Environment Sensor: BME280
Package Includes:

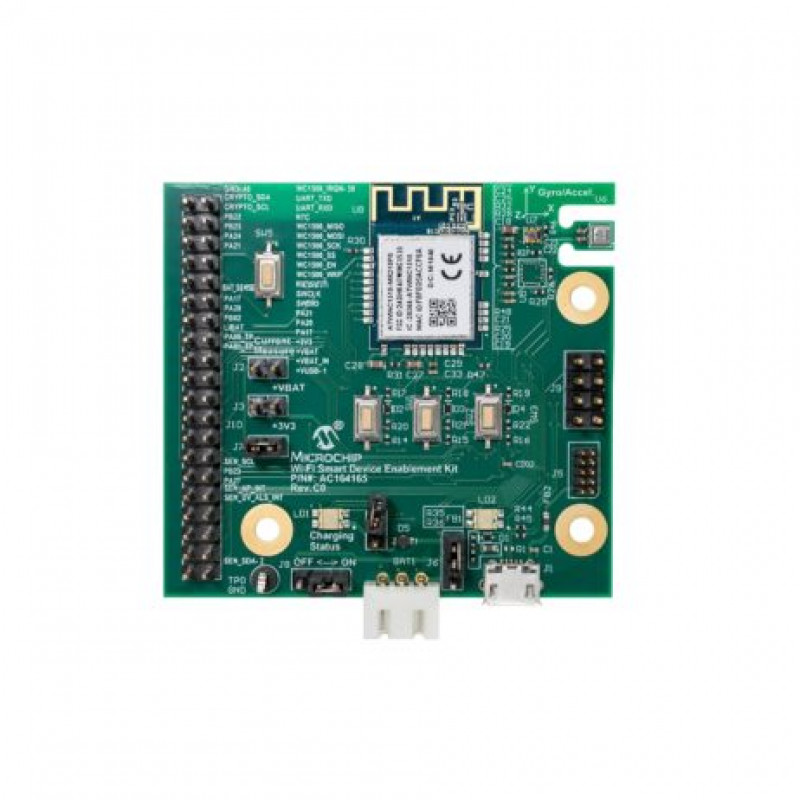

1 x MICROCHIP AC164165 Development Kit, WiFi Smart Device Enablement Kit, Alexa Voice Control, WiFi, IoT
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
MICROCHIP AC164165 Development Kit, WiFi Smart Device Enablement Kit, Alexa Voice Control, WiFi, IoT
- Product Code: EC-21179
- Availability: Out Of Stock
-
Rs.5675.00
- (Excluding 18% GST)
