The high-performance Microchip picoPower 8-bit AVR RISC-based microcontroller combines 16 KB ISP flash memory with read-while-write capabilities, 512B EEPROM, 1 KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented Two-Wire serial interface, SPI serial port, 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, balancing power consumption and processing speed.

Features:

1. 131 Powerful instructions
2. Most single clock cycle execution
3. 32 x 8 General purpose working registers
4. Fully static operation
5. Up to 20 MIPS throughput at 20 MHz
6. On-chip 2-cycle multiplier
7. High performance

Package Includes:

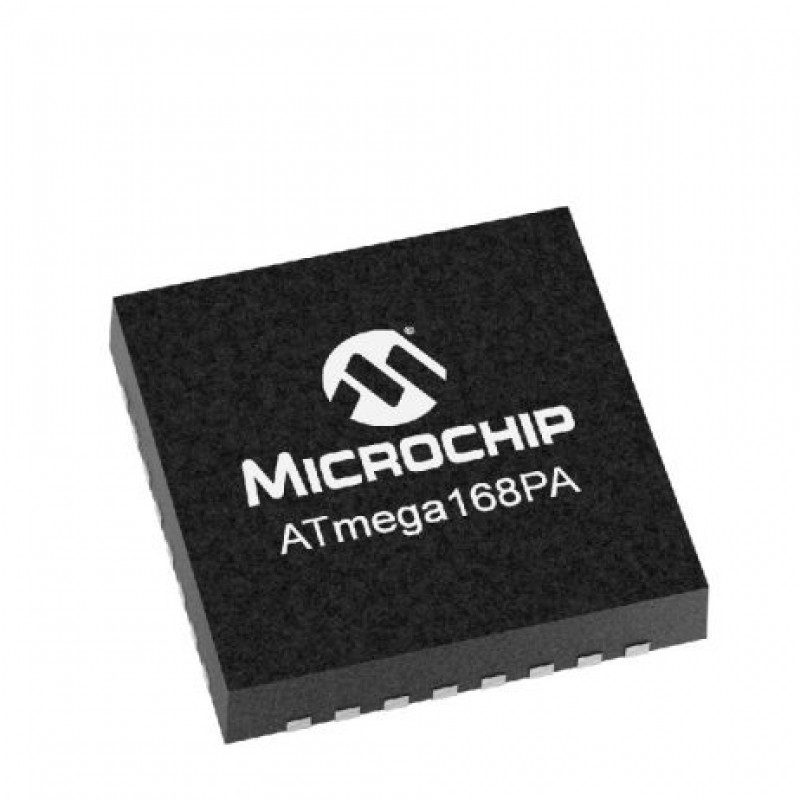

1 x MICROCHIP ATMEGA168PA-PU 8 Bit MCU, Low Power High Performance, AVR ATmega Family ATmega16X Series Microcontrollers, AVR- 1Pcs
