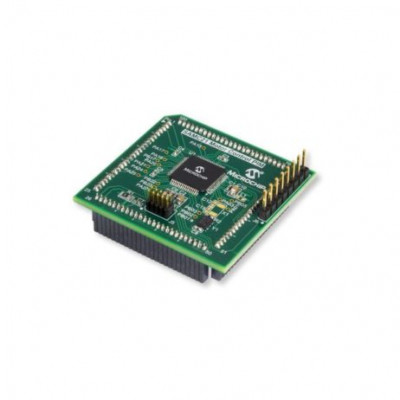

The Microchip Daughter Board, ATSAMC21 MCU Plug-In Module is a plug-in module for MCHV-3 and MCLV-2 Development Kits. It features the ATSAMC21 microcontroller unit (MCU) from Microchip, which is a low-power, high-performance MCU based on the ARM Cortex-M0+ architecture. The MCU has a 32-bit CPU with a clock speed of up to 48 MHz and a variety of peripherals, including a 12-bit ADC, 10-bit DAC, and a range of communication interfaces such as USB, I2C, and SPI.

This daughter board provides a convenient way to evaluate and develop code for the ATSAMC21 MCU, and it provides access to all of the MCUs I/O pins and peripherals. It is fully compatible with the MCHV-3 and MCLV-2 Development Kits, which provide a range of debugging and programming tools, as well as an easy-to-use development environment for writing, testing, and debugging code.

Features:

1. ARM Cortex-M0+ based MCU running up to 48MHz
2. Up to 256KB embedded Flash and 32KB SRAM
3. 2.7V to 5.5V operating voltage
4. Controller Area Network (CAN) interface supporting ISO CAN-FD; ISO 11898-2:2015
5. DMA and Event system
6. Up to eight flexible serial communication modules (SERCOM)
7. 12-bit ADC
8. 16-bit Sigma-Delta ADC (SDADC)
9. Temperature sensor
10. Divide and square root accelerator (DIVAS)
11. Hardware touch support with the Peripheral Touch Controller
12. QFP, QFN and WLCSP package options

Package Includes:

1 x MICROCHIP Daughter Board, ATSAMC21 MCU Plug-In Module, For MCHV-3, MCLV-2 Development Kits
