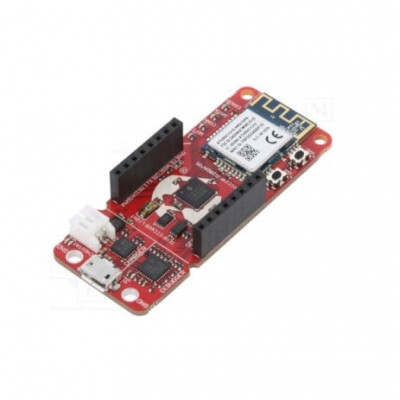

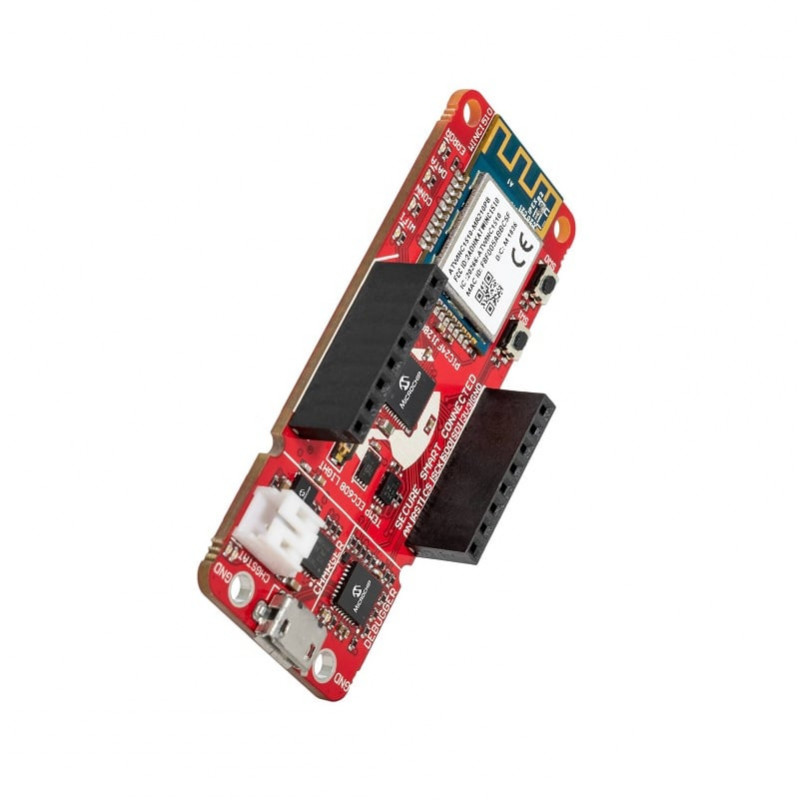

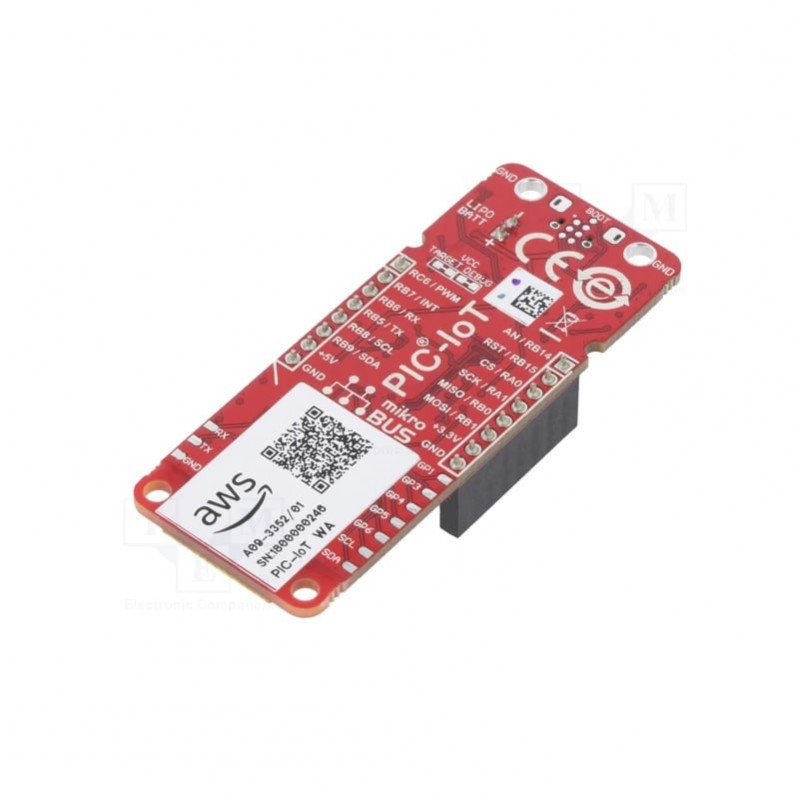

MICROCHIP EV54Y39A PIC-IOT WA DEV BOARD combines a powerful PIC24FJ128GA705 MCU, an ATECC608A Crypto Authentication secure element IC and the fully-certified ATWINC1510 Wi-Fi network controller which provides the most simple and effective way to connect embedded application to Amazon Web Services (AWS). The board also includes an on-board debugger and requires no external hardware to program and debug the MCU. Out of the box, the MCU comes preloaded with firmware that enables to quickly connect and send data to the AWS platform using the on-board temperature and light sensors. MICROCHIP EV54Y39A PIC-IOT WA DEV BOARD is supported by MPLAB X IDE
Note: for more details refer to datasheet in attachment section.
Features:
- Compact design
- Two mechanical buttons
- TEMT6000 light sensor, MCP9808 temperature sensor
- MikroBUS header to interface to MikroElekronika click Boards
- Auto-ID for board identification in Microchip MPLAB X
- Programming and debugging
- On-board Debugger
Packages Includes:
1 x MICROCHIP EV54Y39A PIC-IOT WA DEV BOARD, 16BIT PIC24 MCU
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Microchip Ev54Y39A Pic-Iot Wa Dev Board, 16Bit Pic24 MCU Board
- Product Code: EC-21905
- Availability: Out Of Stock
-
Rs.4311.00
- (Excluding 18% GST)
