This is Microchip MCP2542FD-E/SN IC. The MCP2542FD/4FD and MCP2542WFD/4WFD CAN transceiver family is designed for high-speed CAN FD applications up to 8 Mbps communication speed. The maximum propagation delay was improved to support longer bus length. The device meets the automotive requirements for CAN FD bit rates exceeding 2 Mbps, low quiescent current, electromagnetic compatibility (EMC) and electrostatic discharge (ESD).
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- Supports CAN 2.0 and CAN with Flexible Data Rate (CAN FD) Physical Layer Transceiver Requirements
- Optimized for CAN FD at 2, 5 and 8 Mbps Operation
- Maximum propagation delay: 120 ns
- Loop delay symmetry: -10%/+10% (2 Mbps)
- MCP2542FD/4FD: Wake-up on CAN activity, 3.6 s filter time
- MCP2542WFD/4WFD: Wake-up on Pattern (WUP), as specified in ISO11898-2:2015, 3.6 s activity filter time
- Implements ISO11898-2:2003, ISO11898-5:2007, and ISO/DIS11898-2:2015
- Very Low Standby Current (4 A, typical)
Package Includes:
1 x Microchip MCP2542FD-E/SN IC
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

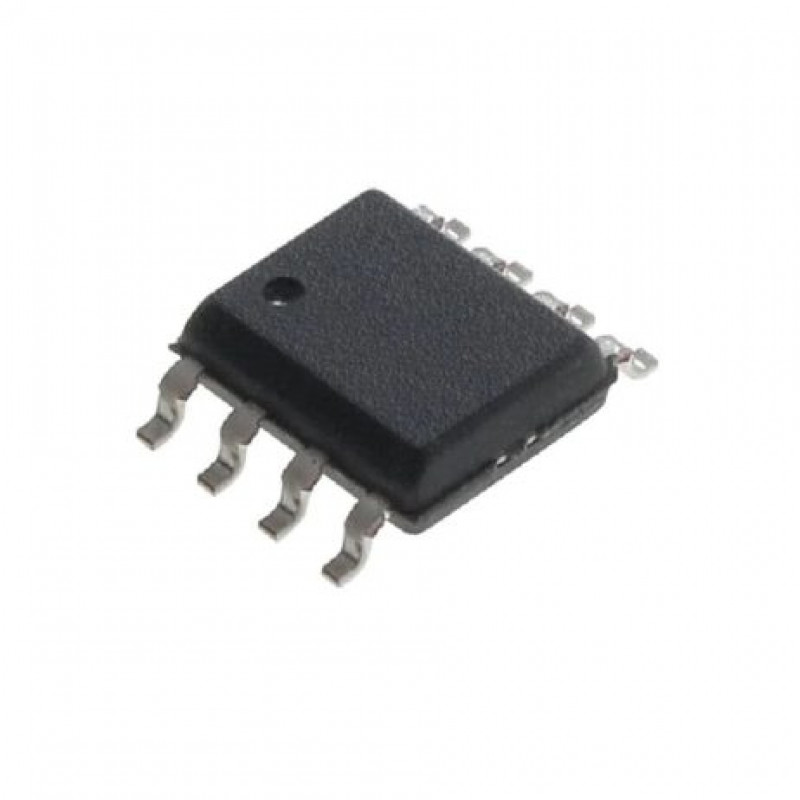

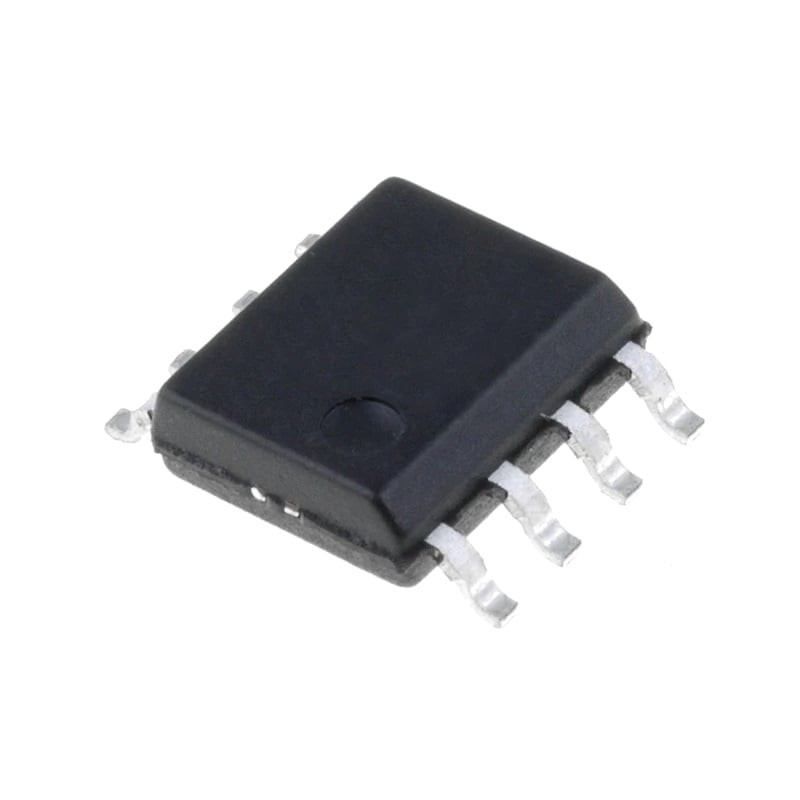

Microchip MCP2542FD-E/SN IC
- Product Code: EC-19250
- Availability: Out Of Stock
-
Rs.114.00
- (Excluding 18% GST)
