BM71-XPRO board is designed to be able to easily add Bluetooth Low Energy (BLE) functionality to your XPRO development tools. It can be used as an extension to your favourite SAMx or AVRx XPRO boards or can be used standalone. The BM71 XPRO is fully supported within Atmel Studio with example code in ASF3.
Note: For more technical details go through Datasheet in the attachment section
Features:
- USB-UART Bridge (MCP2200) for Host PC Operation
- On Board 3.3V LDO for Power Regulation
- On Board SPI Flash for Storing Firmware Images (DFU OTA)
- Test Point for GPIO Pin (P1_3)
- Reset Push Button
- DIP Switch to Control:
BM71 operation mode
LED
GPIO pin - Passive RC Filters for PWM and ADC Inputs
- Atmel Studio (ASF3), to Provide Predefined Application Examples
- XPRO Extension Header
- Header Pins for Current Measurement
- Two Power Sources:
Micro USB
XPRO Connector
Package Includes:
1 x MICROCHIP XPRO EXTENSION BOARD WITH BLE
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

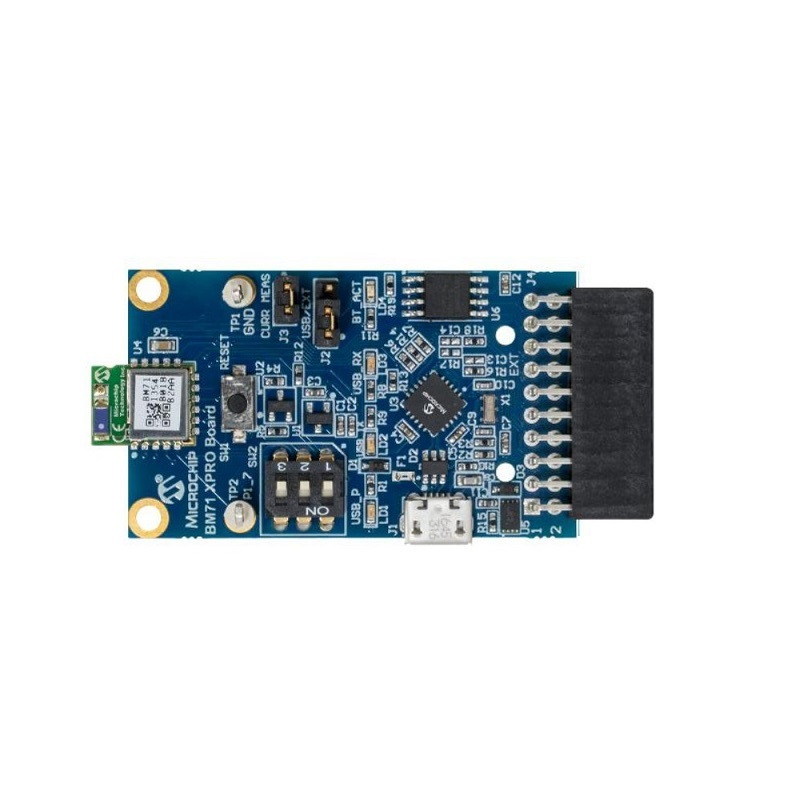

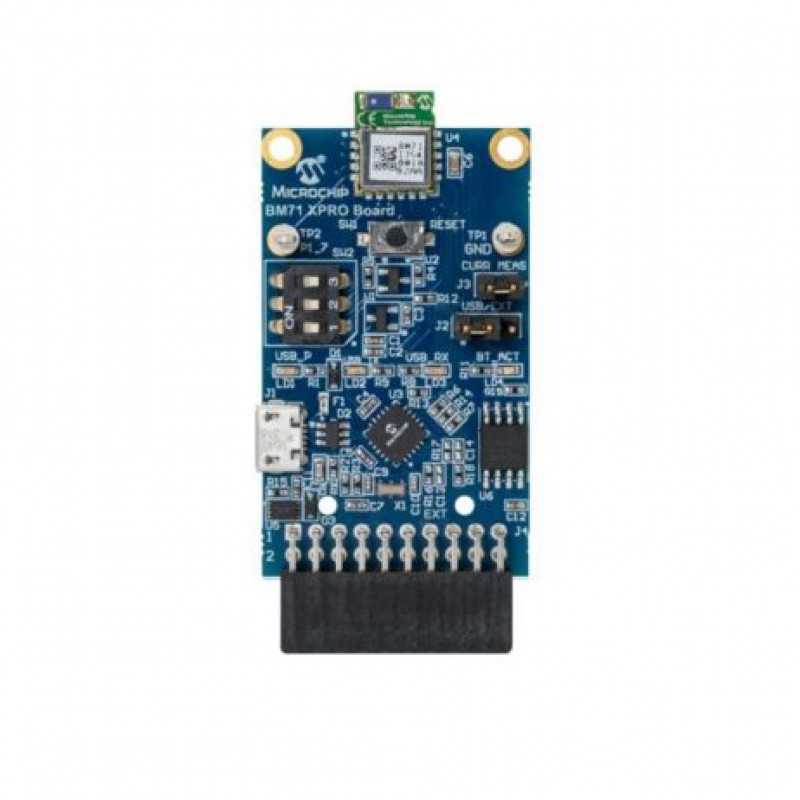

Microchip Xpro Extension Board With BLE
- Product Code: EC-22035
- Availability: Out Of Stock
-
Rs.6635.00
- (Excluding 18% GST)
