How Does It Work?

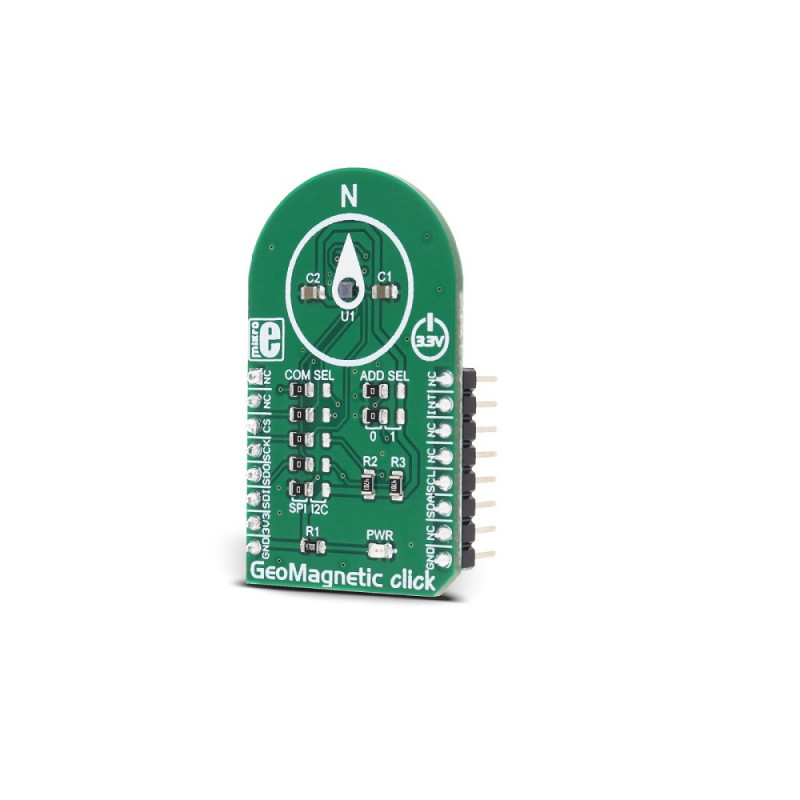

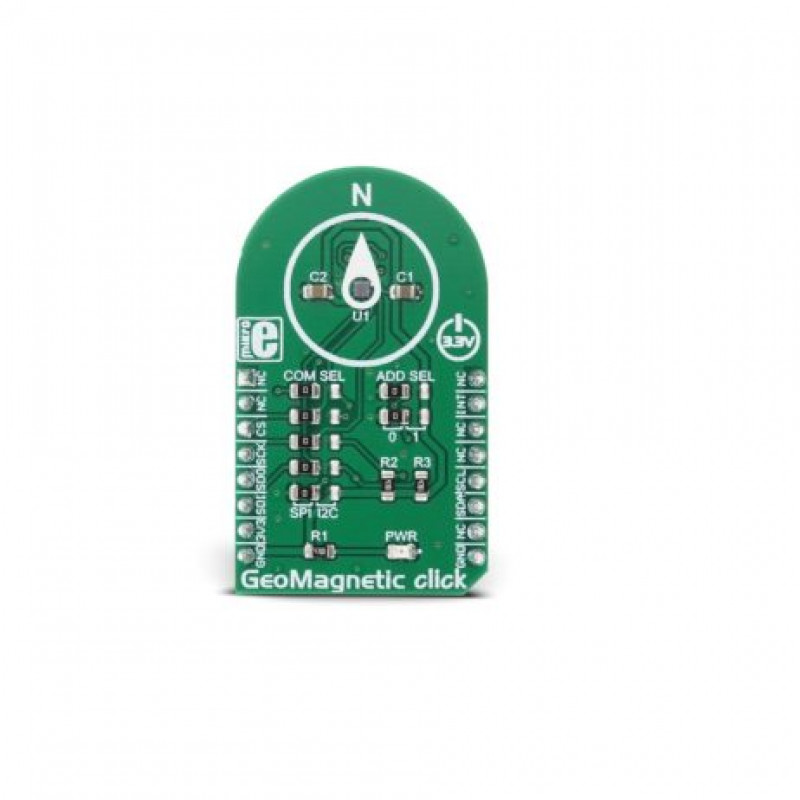

GeoMagnetic click carries theBMM150, a three-axis geomagnetic sensor fromBosh Sensortec. Featuring the proprietary FlipCore technology from Bosch, low power consumption, and noise, as well as thermally compensated measurements, this device is specially tuned and tailored to be used in demanding 3-axis mobile applications.
The provided GeoMagnetic click library offers simple and easy-to-use functions, which are demonstrated in the demo application. These functions allow easy and simple configuration management and data reading, speeding up the development process.
Applications: GeoMagnetic click is an easy-to-use and reliable solution for the rapid development of geomagnetic-based applications
features:
- Type Compass, Magnetic Sensor
- Interface GPIO,I2C,SPI
- Compatibility mikroBUS
- Three-axis geomagnetic sensor
- Click board size M (42.9 x 25.4 mm)
- Input Voltage 3.3V
- On-board modules BMM150 geomagnetic sensor from Bosch
Useful Links:
- MikroBUS
- MikroSDK
- GeoMagnetic click example on Libstock
- GeoMagnetic click schematic
- GeoMagnetic click 2D and 3D files
- BMM150 datasheet
Package Includes:
1 x Mikroe GEOMAGNETIC CLICK
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Mikroe GEOMAGNETIC CLICK
- Product Code: EC-23837
- Availability: Out Of Stock
-
Rs.1309.00
- (Excluding 18% GST)
