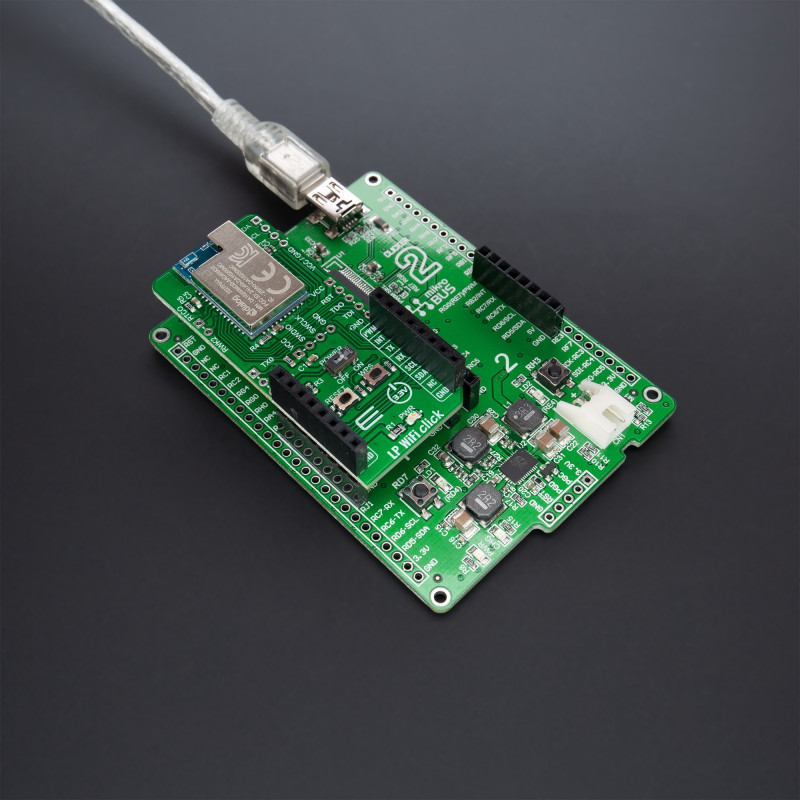

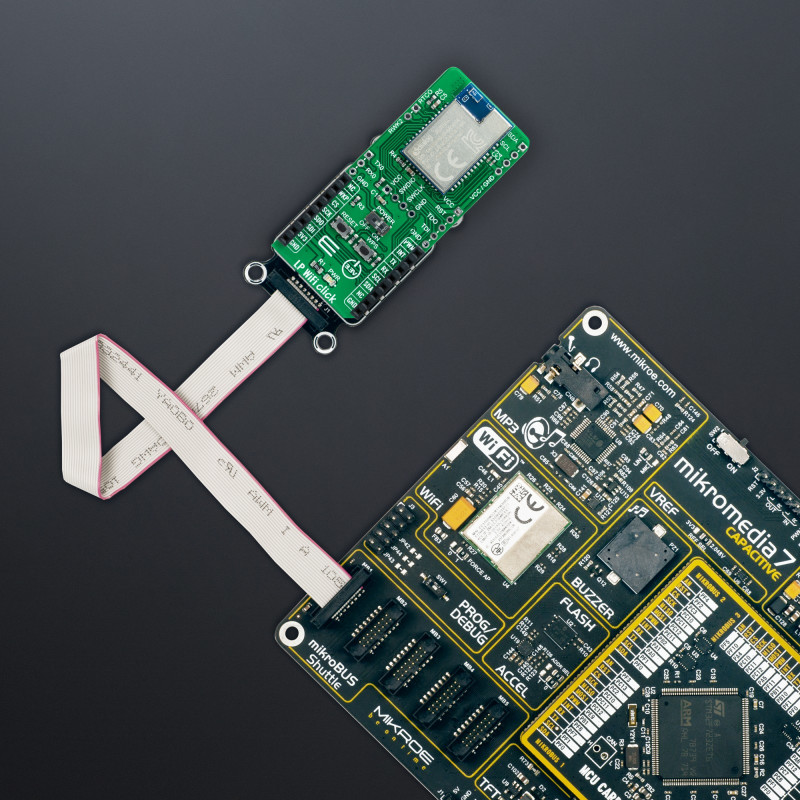

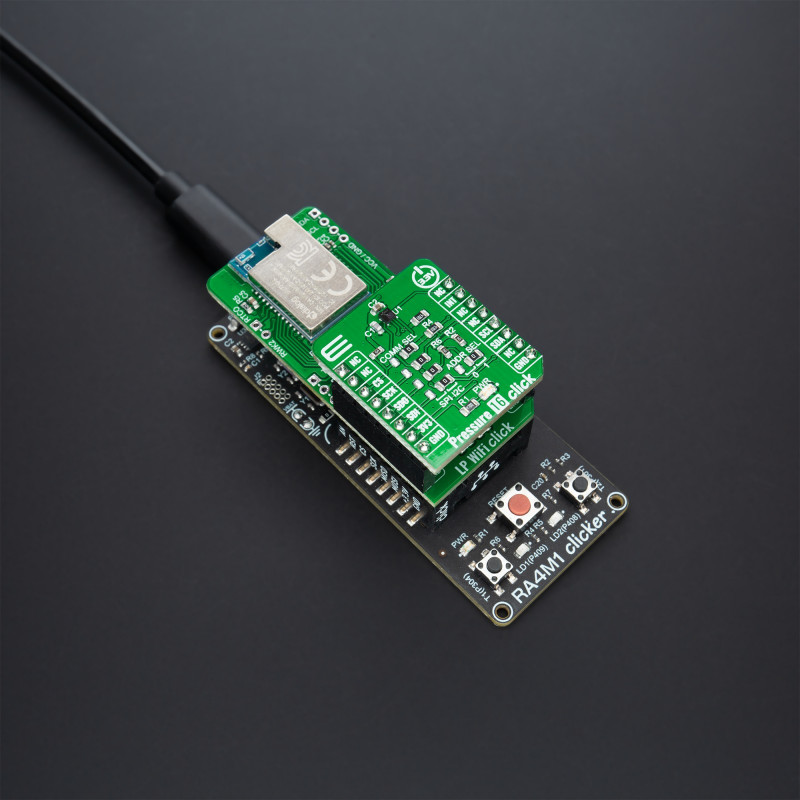

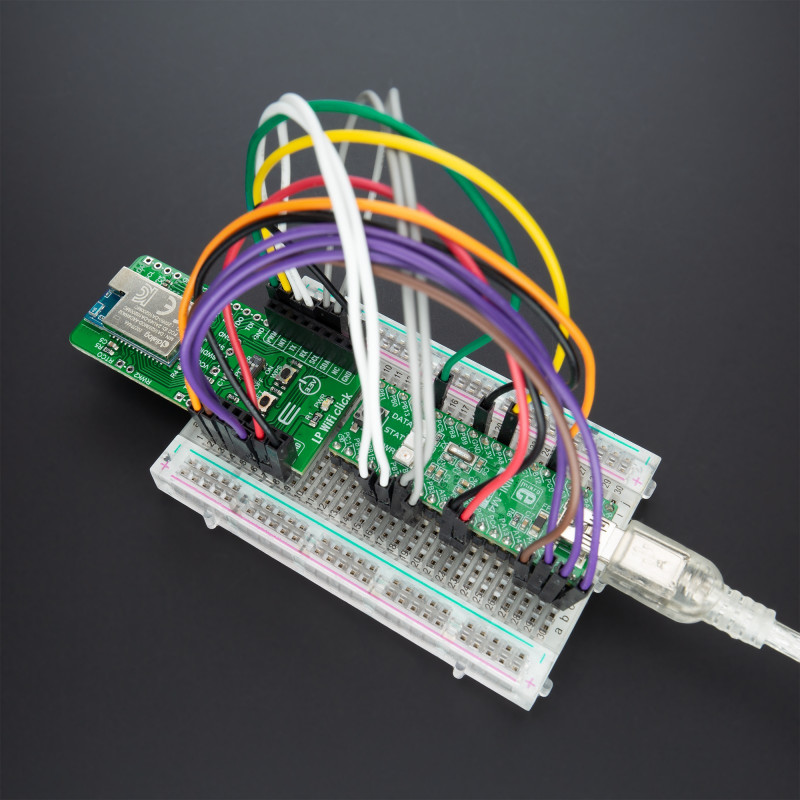

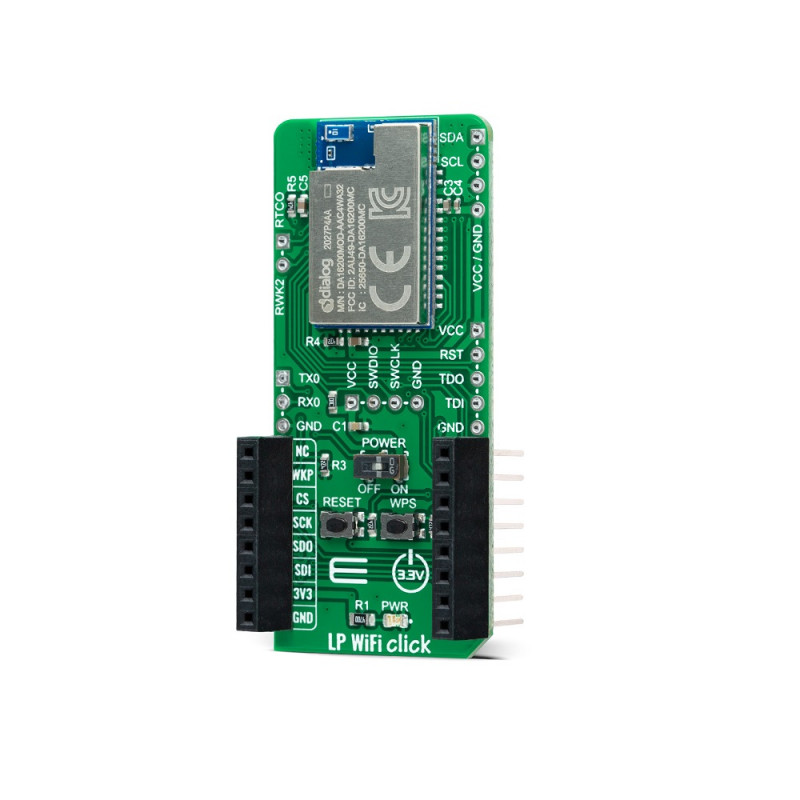

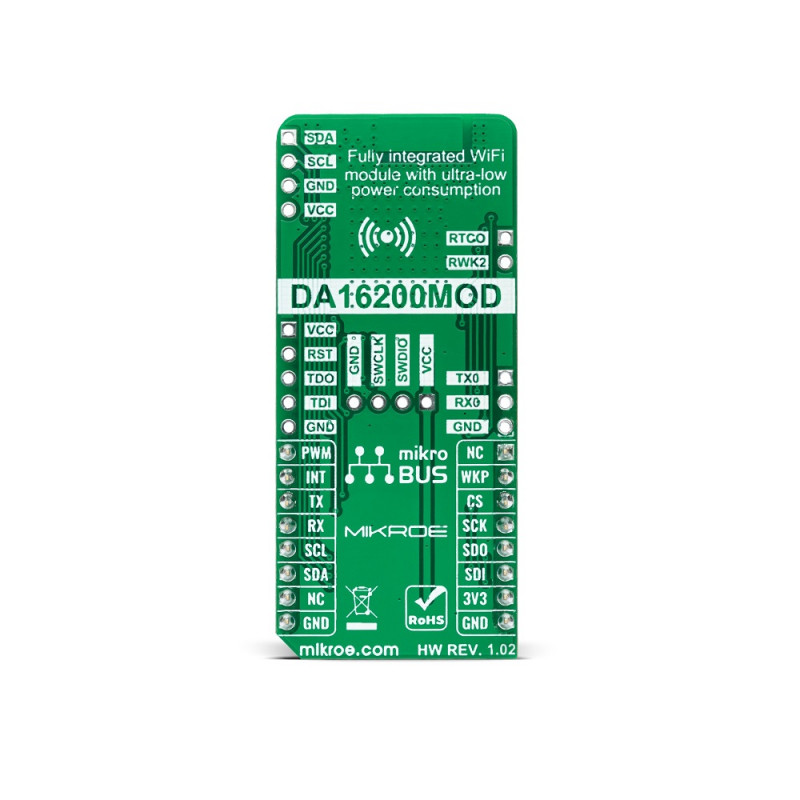

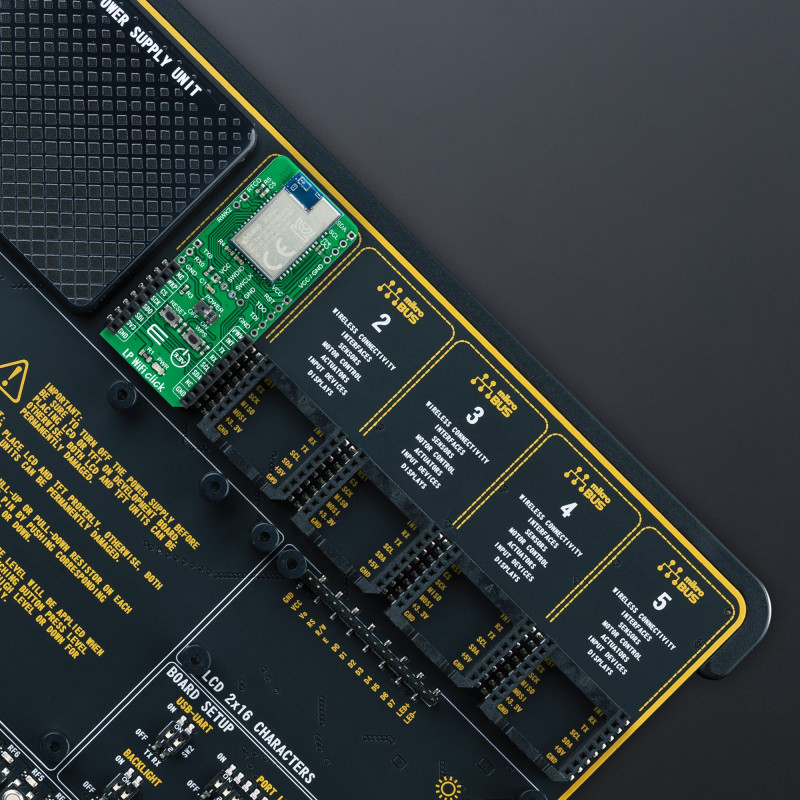

LP WiFi Click is a compact add-on board that represents an ultra-low-power Wi-Fi solution. This board features the DA16200, a fully integrated Wi-Fi module with ultra-low power consumption, best RF performance, and a comfortable development environment from Dialog Semiconductor.

In addition to the highly integrated ultra-low power Wi-Fi SoC, which is the basis of this module, it also includes a 40MHz crystal oscillator, 32.768kHz RTC clock, 4Mbyte flash memory, and chip antenna. Such low power operation can extend the battery life as long as a year or more, depending on the application. This Click board is suitable for highly integrated and cost-effective IoT applications such as security systems, door locks, pet and asset trackers, sprinkler systems, connected lighting, wearables, and other IoT devices.

LP WiFi Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board comes as a fully tested product, ready to be used on a system equipped with the mikroBUS socket.

Applications: Can be used for highly integrated and cost-effective IoT applications such as security systems, door locks, pet and asset trackers, sprinkler systems, connected lighting, wearables, and other IoT devices

Overview:

Features:

1. Type WiFiInterface GPIO,I2C,SPI,UART
2. Compatibility mikroBUS
3. Click board size L (57.15 x 25.4 mm)
4. Input Voltage 3.3V
5. Ultra-low power consumption
6. Best RF performance
7. Full offload, integrated chip antenna
8. Various interfaces,
9. WiFi alliance certifications
10. Advanced security, battery life extension
11. On-board modules: DA16200MOD-AAC4WA32 highly integrated ultra-low power Wi-Fi module from Dialog Semiconductor

Useful Links:

• MikroBUS
• MikroSDK
• LP WiFi click example on Libstock
• LP WiFi click 2D and 3D files
• LP WiFi click schematic
• DA16200MOD datasheet

Package Includes:

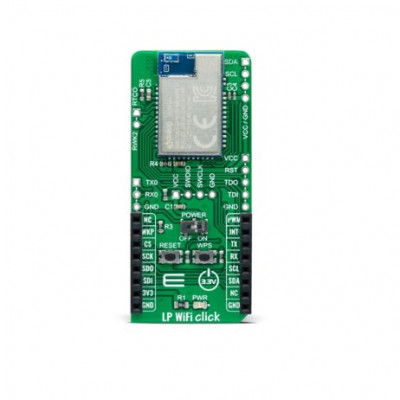

1 x Mikroe LP WIFI CLICK
