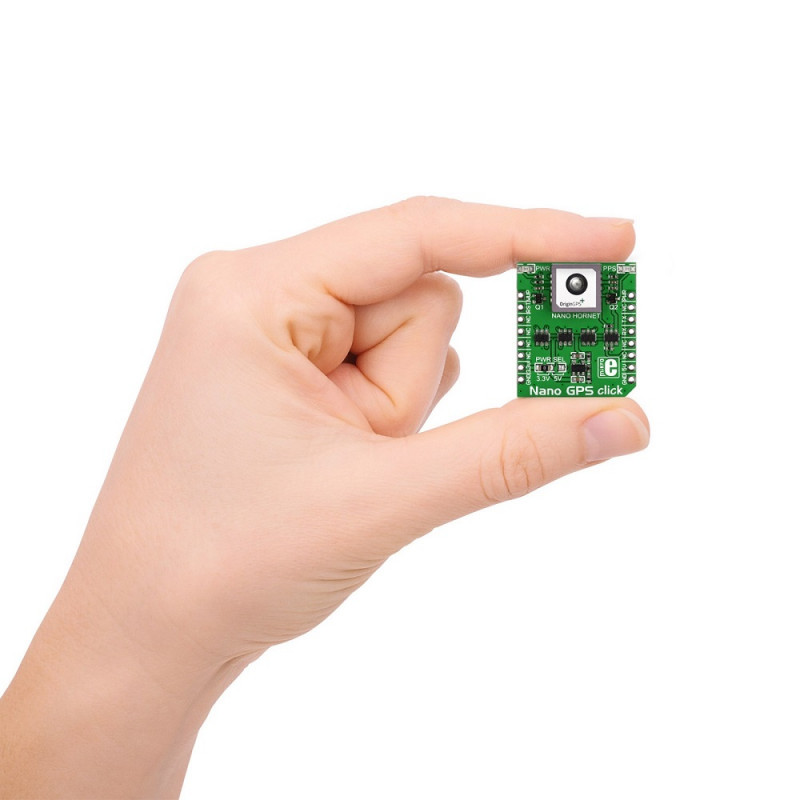

Nano GPS click carries theNano Hornet module from OriginGPS. Its the smallest GPS module with an integrated patch antenna (measuring just 10x10x3.8mm). Hence, Nano GPS click is also the smallest of all MikroElektronika GPS click boards. Despite its size, it offers superior sensitivity and outstanding performance, with time to first fix (TTFF) of less than 1 second, an accuracy of approximately 1m, and tracking sensitivity down to -163dBm.
Applications: Nano GPS click is ideal for prototyping for size-constrained devices with GPS functionality, such as wearables
Features:
- Type GPS/GNSS
- Time to first fix (TTFF) less than 1 second.
- Tracking sensitivity: -163dBm
- Interface GPIO,UART
- Compatibility mikroBUS
- Click board size S (28.6 x 25.4 mm)
- Input Voltage 3.3V or 5V
Package Includes:
1 x Mikroe NANO GPS Click
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

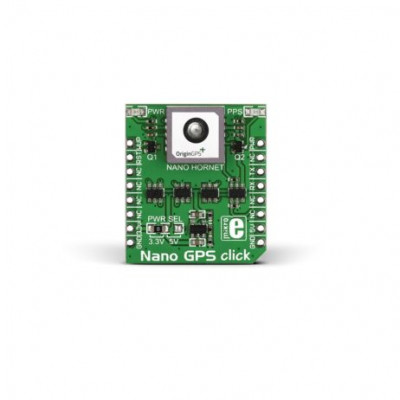

Mikroe NANO GPS Click
- Product Code: EC-23844
- Availability: Out Of Stock
-
Rs.5146.00
- (Excluding 18% GST)
