The MOC3043 devices consist of gallium arsenide infrared emitting diodes optically coupled to a monolithic silicon detector performing the function of a Zero Voltage Crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc.
Features:-
• Simplifies Logic Control of 115 Vac Power
• Zero Voltage Crossing
• dv/dt of 2000 V/µs Typical, 1000 V/µs Guara
Applications:-
• Solenoid/Valve Controls
• Temperature Controls
• Lighting Controls
• E.M. Contactors
• Static Power Switches
• AC Motor Starters
• AC Motor Drives
• Solid State R
Specification:-
| Symbol | Parameter | Value | Unit |
| IF | Forward current | 60 | mA |
| PD | Power dissipation | 120 | mW |
| VR | Reverse Voltage | 6 | V |
| Tstg | Storage temperature range | -40 to +150 | °C |
| TOPR | Operating Temperature | -40 to +85 | °C |
| TSOL | Lead Solder Temperature | 260 for 10 sec | °C |
| ITSM | Peak Repetitive Surge Current (PW = 1 ms, 120 pps) | 1 | A |
| VDRM | Off-State Output Terminal Voltage | 400 | V |
| VISO | Isolation Surge Voltage | 7500 | Vac(pk) |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 44.84 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

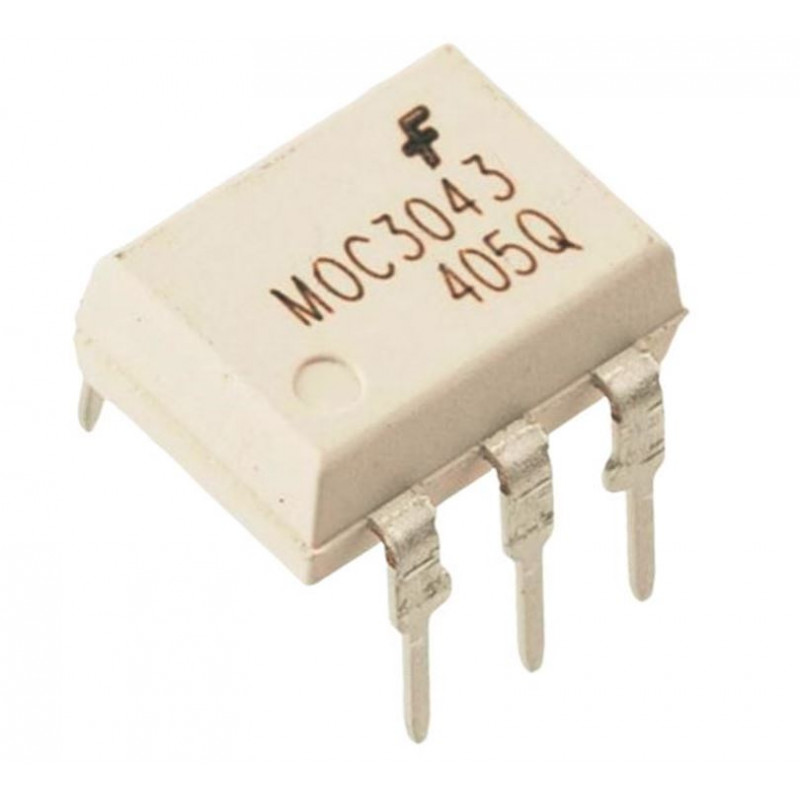

MOC3043 IC - Zero-Cross Optoisolator Triac Driver IC
- Product Code: EC-1941
- Availability: 841
-
Rs.38.00
- (Excluding 18% GST)
-
-
Wholesale Pricing
Select Quantity Discount Price per piece 1 - 9 0% 38.0000 10 - 24 3% Rs.37.00 25 - 49 7% Rs.35.50 50 - 99 12% Rs.33.50 100+ 16% Rs.32.00
