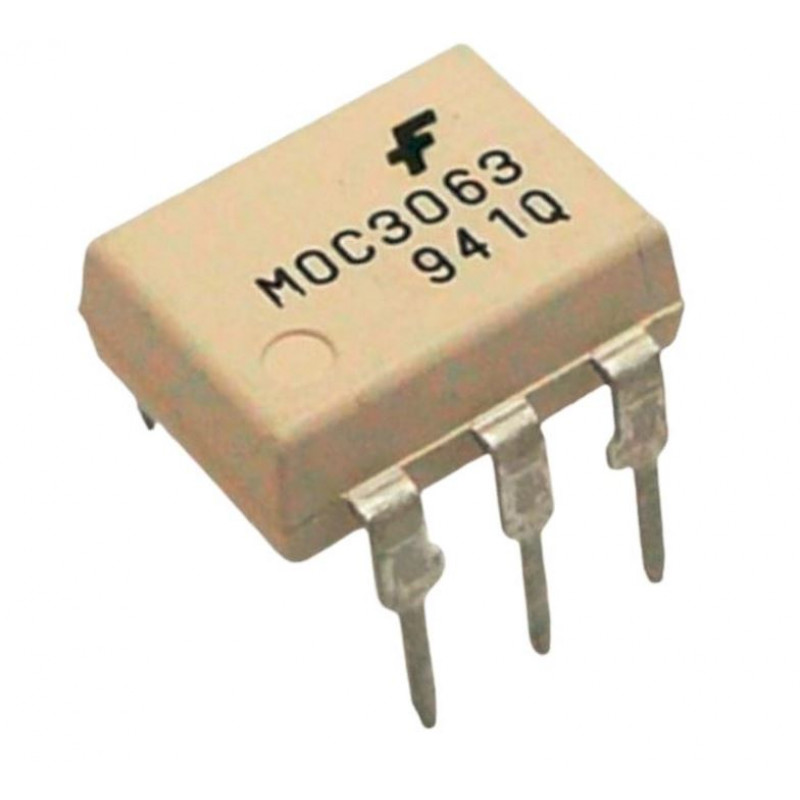

  • MOC3063 IC - Zero-Cross Triac OptoIsolator IC
 The MOC3063 devices consist of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the functions of Zero Voltage Crossing bilateral triac drivers. They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances,etc.


Features:-

• Simplifies Logic Control of 115/240 Vac Power

• Zero Voltage Crossing

• dv/dt of 1500 V/µs Typical, 600 V/µs


Applications:-

• Solenoid/Valve Controls

• Temperature Controls

• Lighting Controls

• E.M. Contactors

• Static Power Switches

• AC Motor Starters

• AC Motor Drives

• Solid State Relays


Specification:-

Symbol Parameter Value Unit
IF Forward current 60 mA
PD Power dissipation 150 mW
VR Reverse Voltage 6 V
Tstg Storage temperature range -40 to +150 °C
TOPR Operating Temperature -40 to +85 °C
TSOL Lead Solder Temperature 260 for 10 sec °C
ITSM Peak Repetitive Surge Current (PW = 1 ms, 120 pps) 1 A
VDRM Off-State Output Terminal Voltage 600 V


Related Document:-

MOC3063 IC Data Sheet










Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 43.66 (Inclusive of all Taxes)
