SIM808 module is a GSM and GPS two-in-one function module. It is based on the latest GSM/GPS module SIM808 from SIMCOM, supports GSM/GPRS Quad-Band network, and combines GPS technology for satellite navigation. SIM808 combines a GSM / GPRS module with GPS technology in a small chip, ideal for GSM application developers.
Features:
- Integrates GSM and GPS functions.
- Enables two-way GSM communication.
- Accurate GPS tracking capability.
- Compact and versatile for various applications.
- Ideal for vehicle tracking, IoT, and remote monitoring.
Specifications:
- Voltage: 5 V to 18 V
- Quad-band: 850/900/1800 / 1900MHz
- GPRS multi-slot class 12/10
- Bluetooth:compatible with3.0 + EDR
- Operating Temperature: -40 to 85
GPRS
- GPRS class 12: max. 85.6 kbps
- Supports PBCCH
- PPP-stack
- CSD up to 14.4 kbps
- USSD
GPS
- Receiver: 22 channels and 66 tracking channels for acquisition
- GPS L1 C / A
- Signal Receiver sensitivity : -165 dBm
Package Includes:

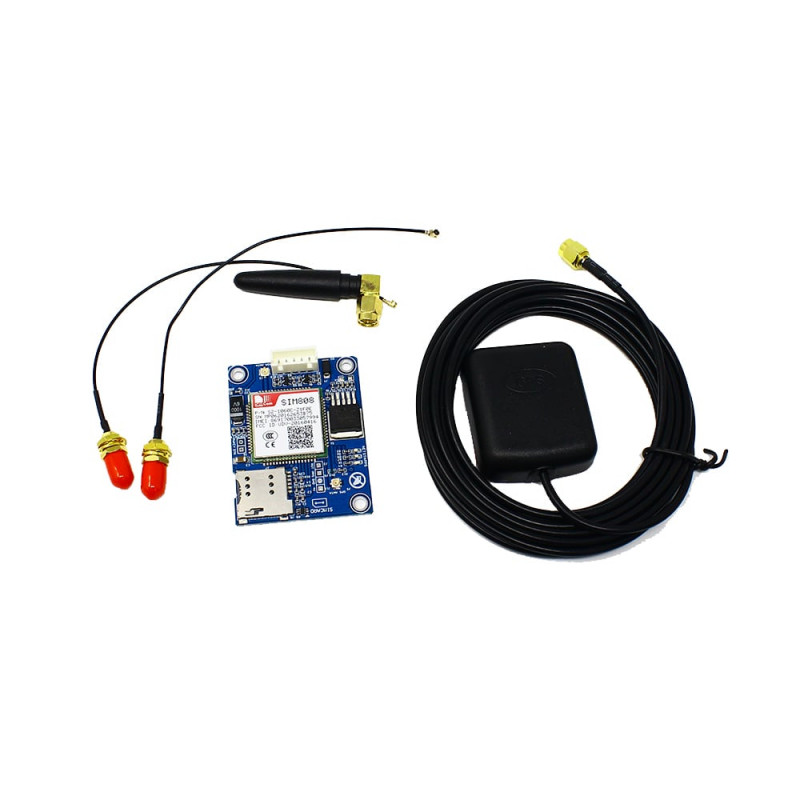

1 x 2 IN 1 GSM GPS SIM808 Module
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
2 IN 1 GSM GPS SIM808 Module
- Product Code: EC-19015
- Availability: 2
-
Rs.2547.00
- (Excluding 18% GST)
