Monster Moto Shield VNH2SP30 Motor Driver 14A is essentially a ramped up version of our Ardumoto motor driver shield. For this Monster Moto Shield, weve replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers.
Weve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.
Note:
When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.
Features :
- Current sensing available to Arduino analog pin
- MOSFET on-resistance: 19 m (per leg)
- Maximum PWM frequency: 20 kHz
- Thermal Shutdown
- Undervoltage and Overvoltage shutdown.
Specifications:-
| Driver Model | Monster Moto Shield VNH2SP30 |
| Operating Voltage(VDC) | 12~16 |
| Peak Current (A) | 30 (10 seconds) |
| Continuous Current (A) | 14 |
| No. of Channels | 1 |
| Over-Current Protection (A) | Yes |
| Thermal Protection | Yes |
| LED Indicator | Yes |
| Cooling Fan | NO |
| Arduino Sheild | No- can be used with Wire connection |
| Dimensions in mm (LxWxH) | 55 x 28 x 12 |
| Weight (gm) | 15 |
| Maximum PWM frequency | 20 kHz |
Package Includes:

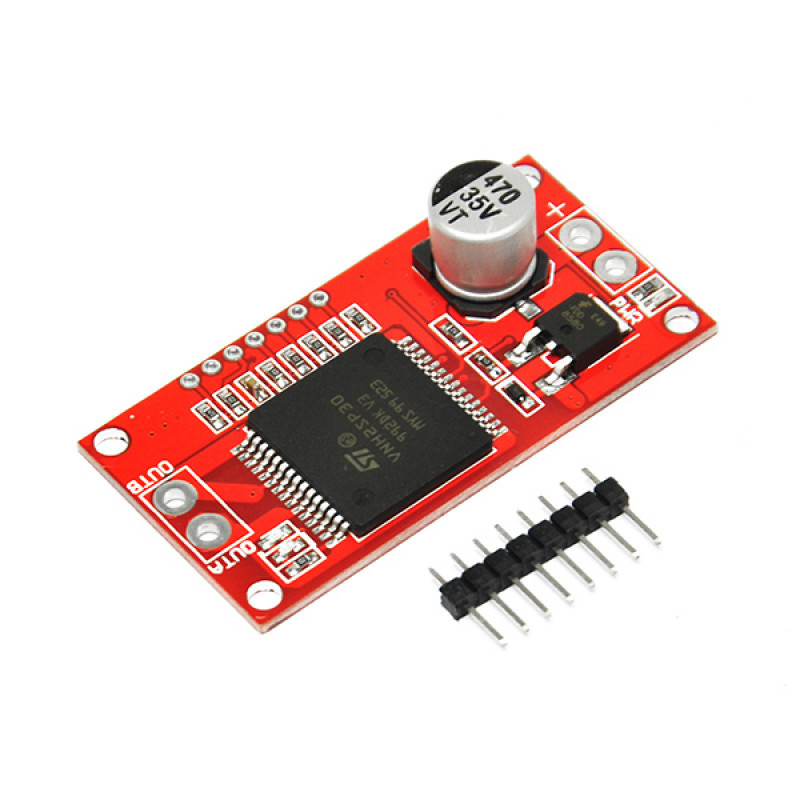

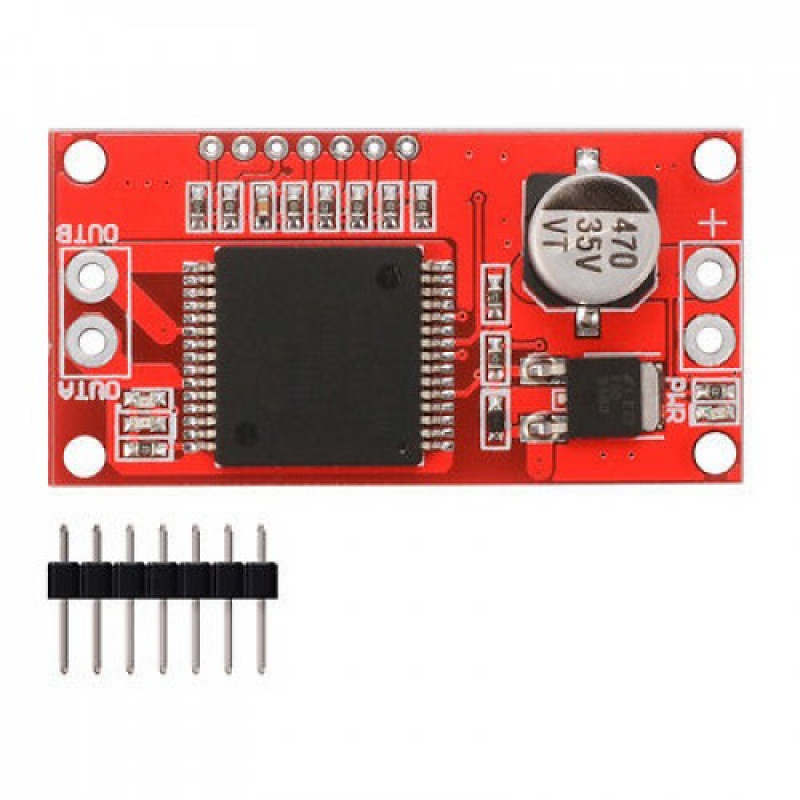

1 x Monster Moto Shield VNH2SP30 Motor Driver 14A Module
1 x Row of 7 pins
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1060.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
VNH2SP30 Monster Motor Driver Shield 14A (Peak 30A)
- Product Code: EC-4762
- Availability: Out Of Stock
-
Rs.799.00
- (Excluding 18% GST)
