The MTS Series miniature toggle switches offer numerous actuator options and termination options including right angle PC mount. These toggle switches offer up to 4 poles. They are PCB mounted and are available in through whole or right angle termination.
Several families of MTS toggle switches are available, and many people used them in guitar effector.
Applications include telecommunications, instrumentation, networking and medical equipment.
Specifications:
- Housing: Bakelite
- Lever: Brass with Nickel plated
- Terminal: Brass with sliver plated
- Torque: Max. 5kgcm (70 ounceinch)
- Rating: 6A 125VAC/3A 250VAC
- Contact Resistance: 50m max
- Electrical Life: 10,000 Cycles
- Mechanical Life: 100,000 Cycles
- Dielectric strength: 1500VAC 1 minute
- Operating Temperature: -25~+85
- Insulation Resistance: 1000m min (500VDC)
- OEM or ODM: Available
Package Includes:
1 x MTS-102-A2T-Miniature Toggle Switch-3 Pin(ON-ON)
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

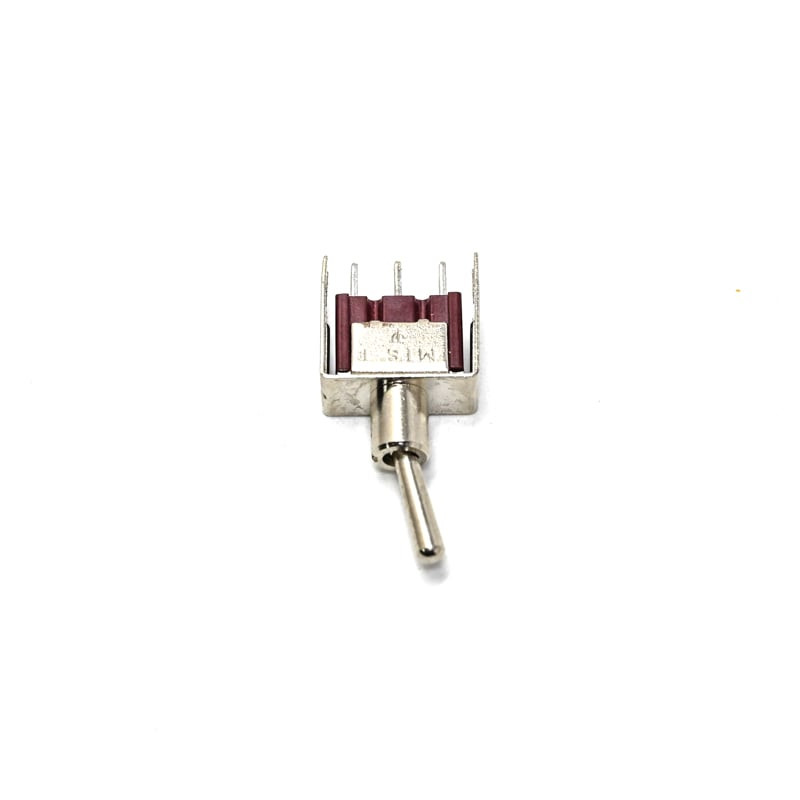

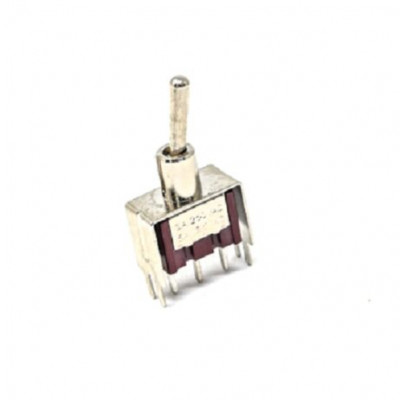

MTS-102-A2T-Miniature Toggle Switch-3 Pin(ON-ON)
- Product Code: EC-30135
- Availability: Out Of Stock
-
Rs.36.00
- (Excluding 18% GST)
