The Mastech MS8233D is a versatile and user-friendly Auto Ranging Digital Multimeter, capable of measuring various electrical parameters with 2000 counts accuracy. With its auto-ranging feature, it simplifies voltage, current, and resistance measurements. The large LCD enhances readability, and its compact design makes it suitable for diverse applications.
Specifications:
- Model: MS8233D
- DC Voltage: 200mV/2V/20V/200V/600V
- AC Voltage: 2V/20V/200V/600V
- DC Current: 200A/2000A/20mA/200mA/10A
- AC Current: 200A/2000A/20mA/200mA/10A
- Resistance: 200 /2k /20k /200k/2 /20
- Frequency: 0~20kHz
- Power Supply: 1x9V 6F22 Battery
- Product Size: 140mmx67mmx30mm
- Product Weight: 112g
- Certificate: RoHS
- Safety Rating : CATII 600V
Features:
- Display 2000 counts
- Auto & Manual Ranging
- Diode Open Voltage 1.5V
- Continuity Buzzer <60
- Data Hold
- Auto Power Off
- Non-contact Voltage Detection
- Maximum Measurement
- Display Backlight
- Low Battery Display
Package Includes:
1 x Mastech MS8233D- 2000 Counts Auto Ranging Digital Multimeter
1 x Test leads
1 x Users manual
1 x Battery
Attachments :
Download
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1904.52 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

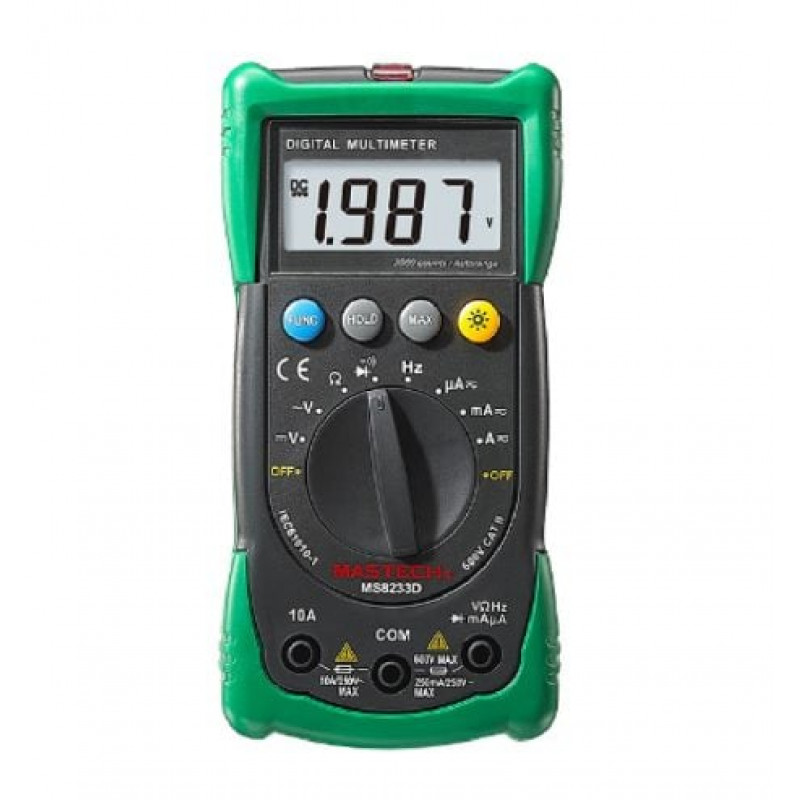

Mastech MS8233D- 2000 Counts Auto Ranging Digital Multimeter
- Product Code: EC-25745
- Availability: 8
-
Rs.1671.00
- (Excluding 18% GST)
