The MURP1560 is ultrafast diodes (trr < 55ns) with soft recovery characteristics. They have a low forward voltage drop and are of planar, silicon nitride passivated, ion-implanted, epitaxial construction. These devices are intended for use as energy steering/clamping diodes and rectifiers in a variety of switching power supplies and other power switching applications. Their low stored charge and ultra fast recovery with soft recovery characteristics minimizes ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistor. Formerly developmental type TA09905.
Features:-
• Ultra fast with Soft Recovery<55ns
• Operating Temperature 175°C
• Reverse Voltage Up to 600V
• Avalanche Energy Rated
• Planar Construction
Applications:-
• Switching Power Supply
• Power Switching Circuits
• General Purpose
Specification:-
| Symbol | Parameter | Value | Units |
| VRRM | Peak Repetitive Reverse Voltage | 600 | V |
| VRWM | Working Peak Reverse Voltage | 600 | V |
| VR | DC Blocking Voltage | 600 | V |
| IFSM | Non-Repetitive Peak Forward Surge Current | 200 | A |
| TJ | Operating Junction Temperature Range | − 55 to +175 | °C |
| Tstg | Storage Temperature Range | − 55 to +175 | °C |
| IF(AV) | Maximum Average Forward Rectified Current | 15 | A |
| IFRM | Repetitive Peak Surge Current | 30 | A |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 92.04 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

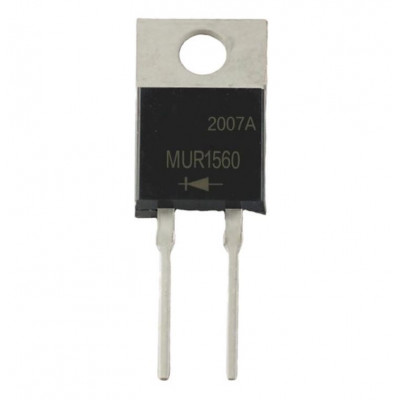

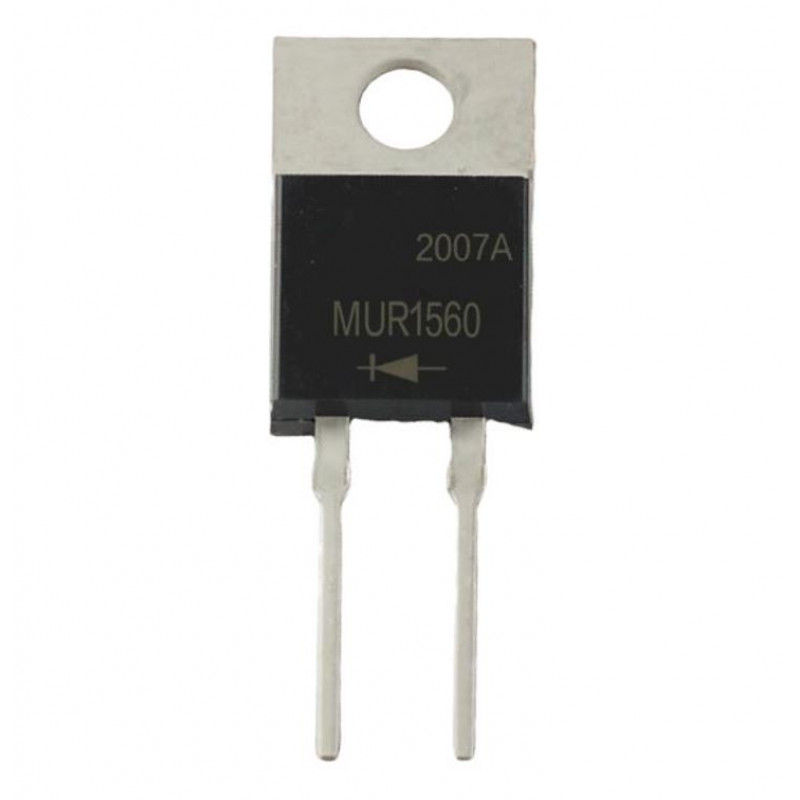

MUR1560 400V-600V 15A Ultrafast Power Diode
- Product Code: EC-1998
- Availability: 2077
-
Rs.68.00
- (Excluding 18% GST)
