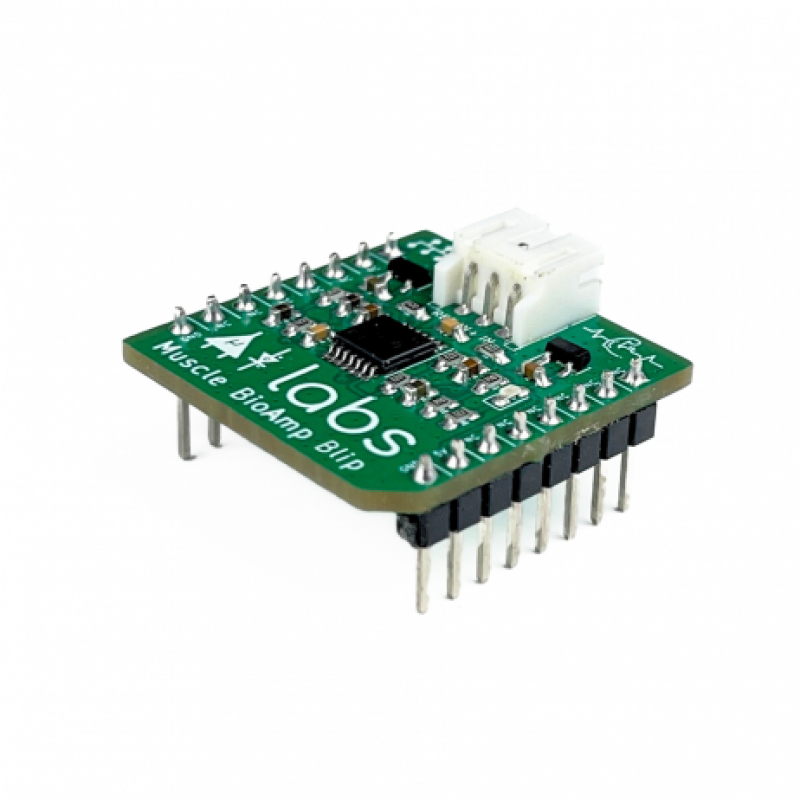

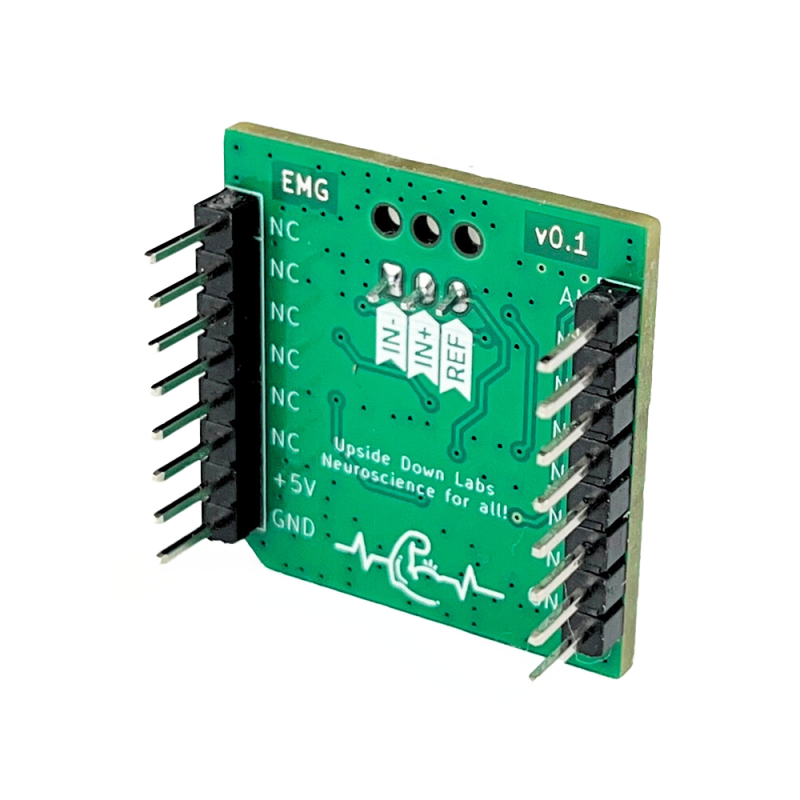

Muscle BioAmp Blip is a single channel mikroBUS compatible ElectroMyography (EMG) sensor for precise muscle signal recording. It allows you to add the EMG functionality to your projects at ease. You can either connect it to any mikroBUS port or even a breadboard to get started.

Pinout Diagram:

Connection Diagram:

Note:

1. Arduino Uno and breadboard are not included in the kit.
2. Click board is a registered trademark of MIKROE thus you might see a white mark on the Muscle BioAmp Blip v0.1 (since the sensor was named as Muscle BioAmp Click earlier).
3. mikroBUS is a socket standard developed by MIKROE which enables hundreds of Click boards to be connected to the microcontroller or microprocessor.
4. Arduino Uno and breadboard are not included in the kit.

Features and Specifications:

1. Operating Voltage: 5V
2. Input Impedance: 10^12
3. Fixed Gain: x2420
4. Bandpass Filter: 72 720 Hz
5. Compatible Hardware: Any development board with an ADC (Arduino UNO & Nano, Adafruit QtPy, STM32 Blue Pill, BeagleBone Black, Raspberry Pi Pico, to name just a few) or a standalone ADC of your choice
6. Biopotentials: EMG (Electromyography)
7. No. of channels: 1
8. Electrodes: 3 (Positive, negative and reference)
9. Dimensions: 2.54 x 2.86 cm
10. Open Source: Hardware + Software

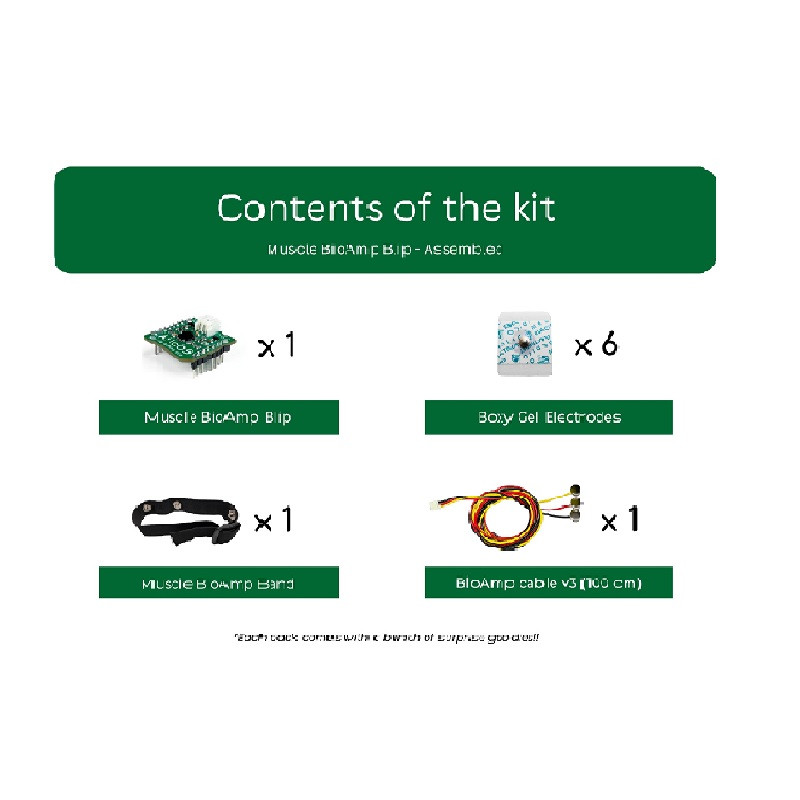

Package Includes:

1 x Muscle BioAmp Blip (Assembled)

Useful Links:

Complete Documentation:

https://docs.upsidedownlabs.tech/hardware/bioamp/muscle-bioamp-blip/index.html
