This N20 12V 400 Rpm Micro Metal Gear Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.

The N20 Micro Gear 12V 400 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 1012mm, and the D-shaped gearbox output shaft is 9mm long and 3mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.

This N20 Micro Gear 400RPM 12 V DC Motor (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.


Note: Image of product may differ from Actual Product.


Features :

  1. This is a DC Mini Metal Gear Motor, ideal for making robots
  2. Lightweight, high torque and low RPM.
  3. Fine craftsmanship, durable, not easy to wear.
  4. With excellent stall characteristics, can climb hills easily.
  5. You can also easily mount a wheel on the motors output shaft.


Package Includes :

1 x N20 12V 400 Rpm Micro Metal Gear Motor


Specifications:-

Model No.

N20-12V-400

No Load Current (mA)

0.06 A

Stall Current (A)

0.75

Rated Torque(kg-cm)

0.35

Stall Torque(Kg-Cm)

1.0

Motor Body Size (Diameter) (mm)

12

Operating Voltage (VDC)

6 ~ 12

Rated Operating Voltage (VDC)

12

Rated Speed (RPM)

400

Shaft Type

D-type
Single Side

Shaft Diameter (mm)

3

Weight (gm)

12

Output Axial Length (mm)

10

Fuselage w/o Shaft Length

26

Screw Size

M3

Motor Type

Single Shaft

No load Speed (RPM)

400


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 312.7 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

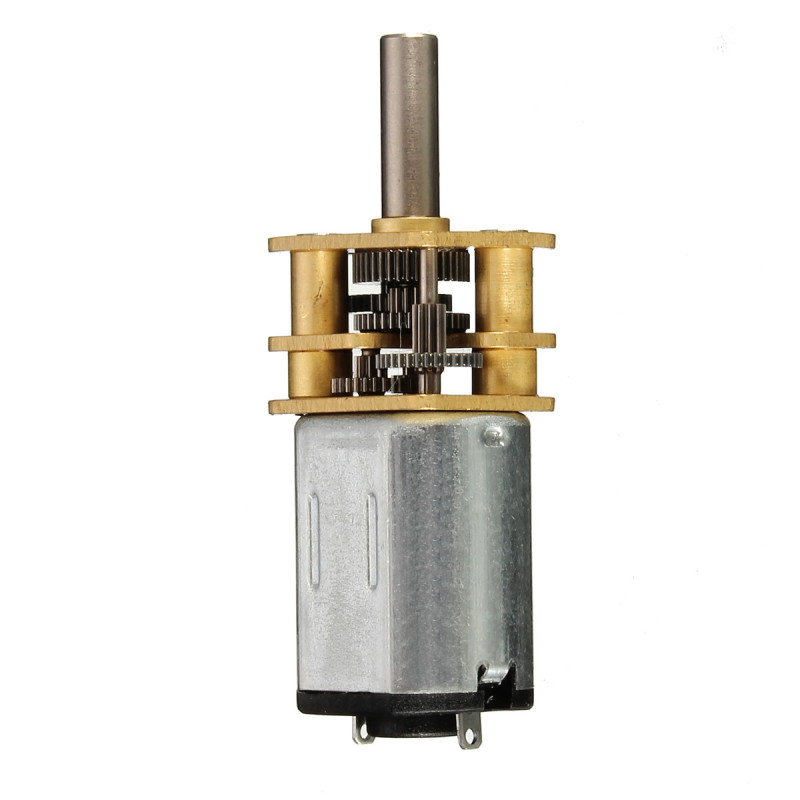

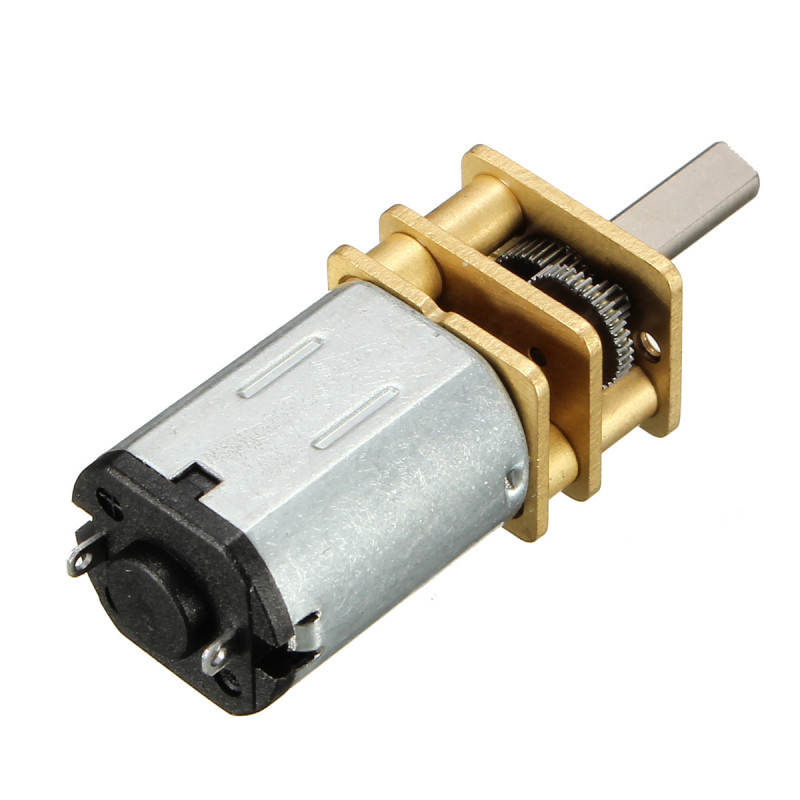

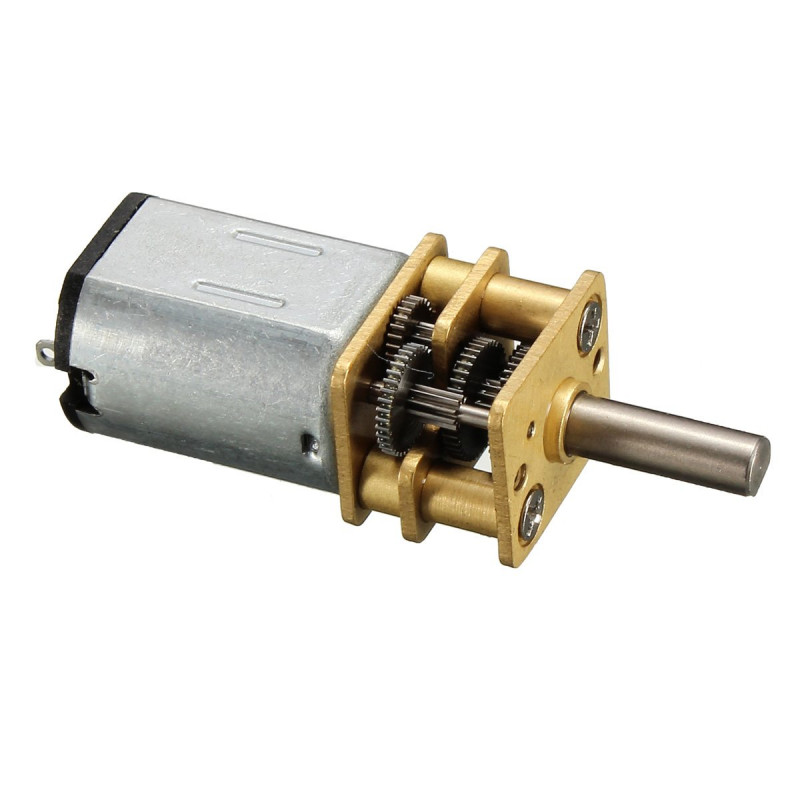

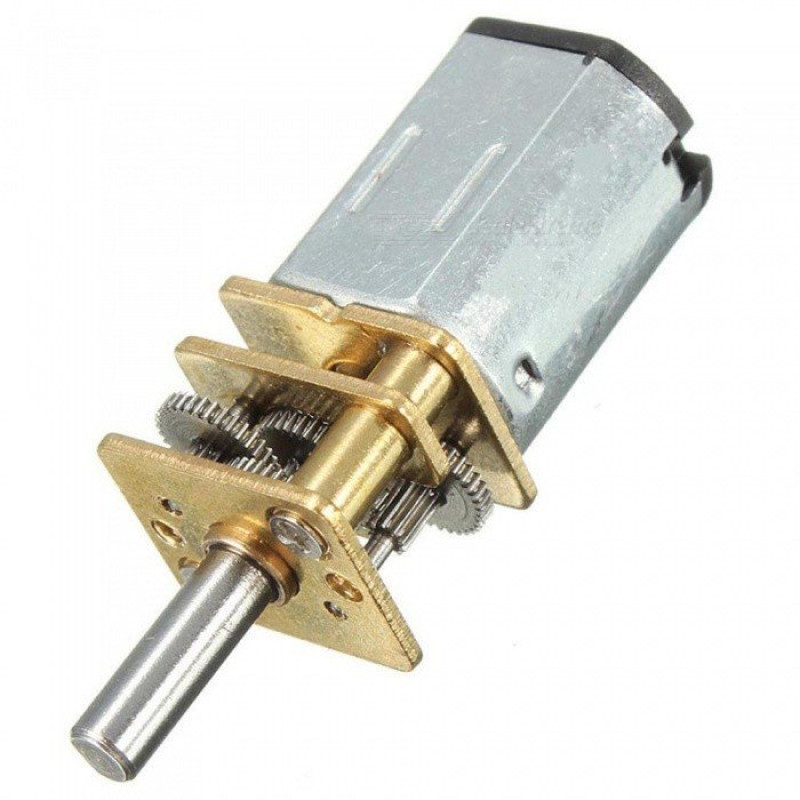

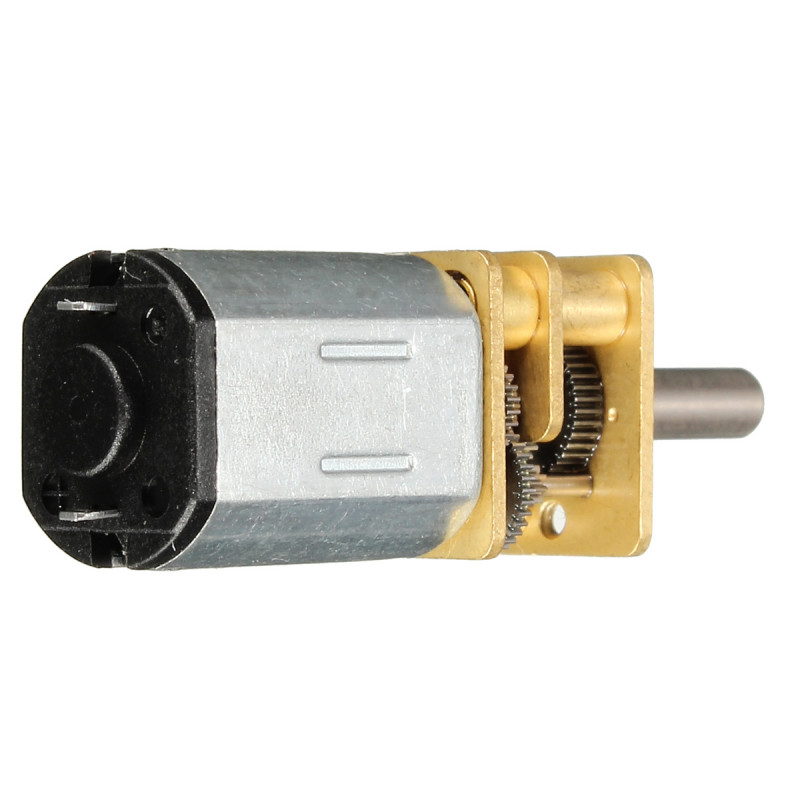

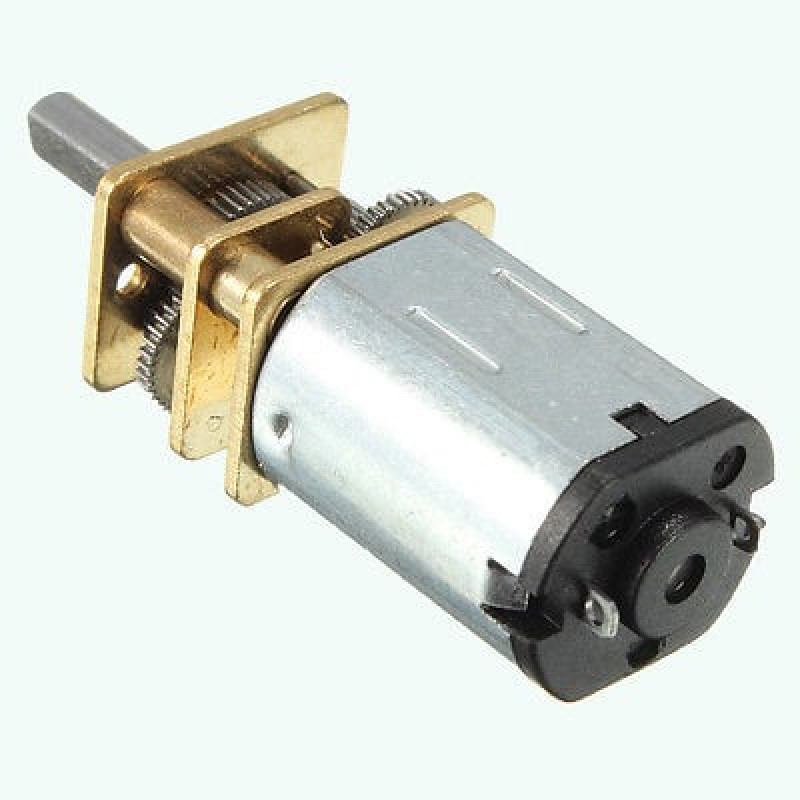

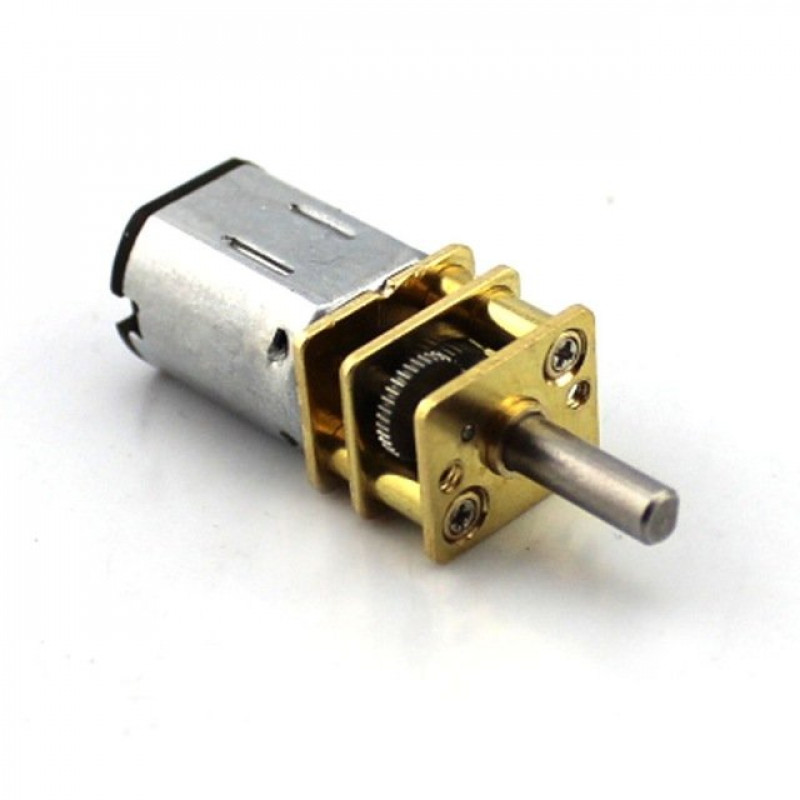

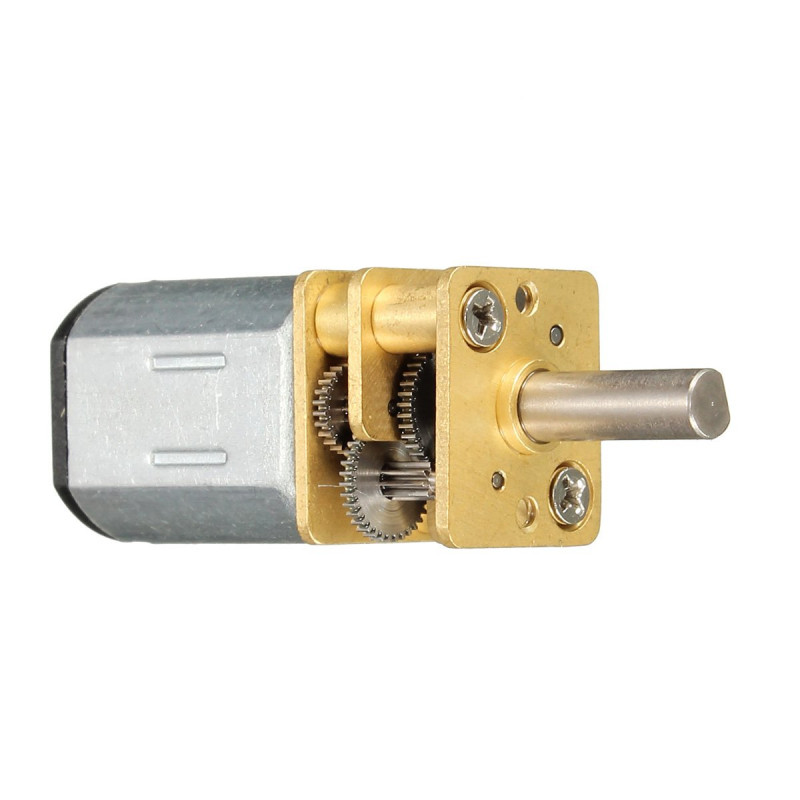

N20 12V 400 Rpm Micro Metal Gear Motor
