The NE5532DR is a dual low-noise high-speed audio Operational Amplifier that features very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes and output short-circuit protection. The NE5532 device is a high-performance operational amplifier combining excellent DC and AC characteristics. This operational amplifier is compensated internally for unity-gain operation. This device has specified maximum limits for equivalent input noise voltage.
Applications:
- Signal Processing
- Computers & Computer Peripherals
- Consumer Electronics
- Audio
- Imaging
- Video & Vision
Features:
- 100dB Typical common-mode rejection ratio
- 100V/mV Typical high DC voltage gain
- Green product and no Sb/Br
- Peak-to-peak output voltage swing 26V typical with VCC = 15V and RL = 600
- 5nV/Hz at 1kHz Typical equivalent input noise voltage
Package Includes:
1 x NE5532DR-TEXAS INSTRUMENTS -Operational Amplifier, 10 MHz, 9 V/s, 5V to 15V, SOIC, 8 Pins
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

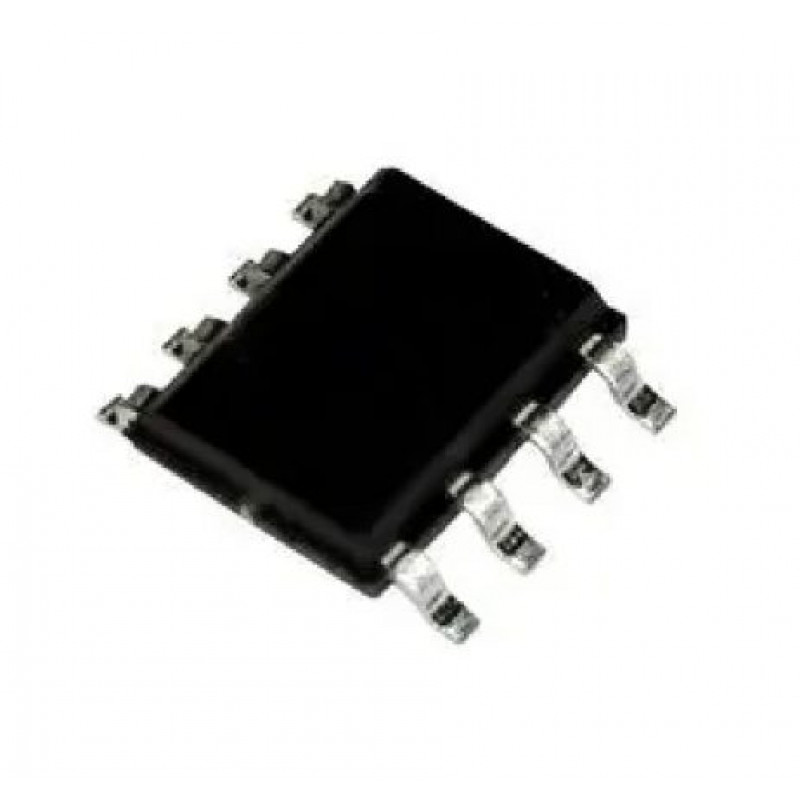

NE5532DR-TEXAS INSTRUMENTS -Operational Amplifier, 10 MHz, 9 V/s, 5V to 15V, SOIC, 8 Pins
- Product Code: EC-28654
- Availability: 257
-
Rs.35.00
- (Excluding 18% GST)
