The Buy KWIKSTIK-K40 is an ultra-low-cost development tool for Kinetis ARM Cortex-M4 microcontrollers. The KwikStik development tool is a cost-effective, all-in-one solution for evaluating, developing, and debugging with Kinetis ARM Cortex-M4 MCUs. It features the K40X256VLQ100 MCU with USB, capacitive touch sensing, and segment LCD functionality and combines powerful silicon and software technology within its sleek, small enclosure. It comes pre-flashed with demonstration software to exercise a small portion of the capabilities of the Kinetis K40X256 device and the KwikStik hardware. The onboard Segger J-Link debug interface allows the user to evaluate the features of the onboard K40 MCU or to develop, debug and program their own target hardware based on any Kinetis MCU. The KWIKSTIK-K40 can be combined and used with several peripheral modules in the tower system, it can also be operated as a standalone debug tool.
Features:
- MicroSD card slot
- Capacitive touch sensing interface
- General purpose tower plug-in (TWRPI) socket
- Manganese lithium rechargeable battery
- Flexible silicone enclosure
note: For more technical detail go through Datasheet in the attachment section
Package Includes:
1 x NXP Development Kit KWIKSTIK-K40 K40X256VLQ100 MCU
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

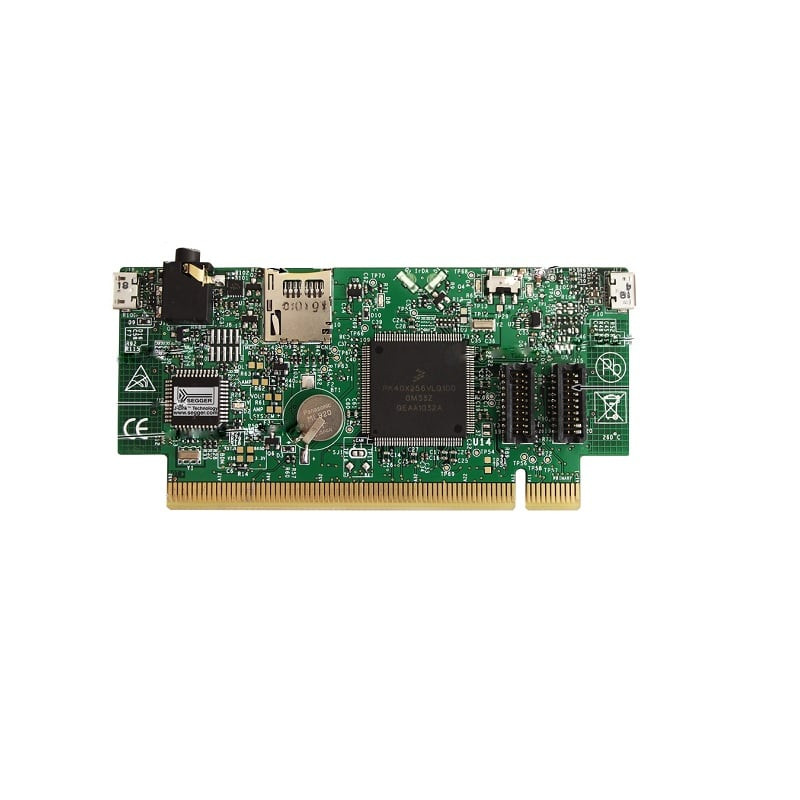

NXP Development Kit KWIKSTIK-K40 K40X256VLQ100 MCU, USB Touch Sensing and Segment LCD Functionality
- Product Code: EC-22975
- Availability: Out Of Stock
-
Rs.5191.00
- (Excluding 18% GST)
