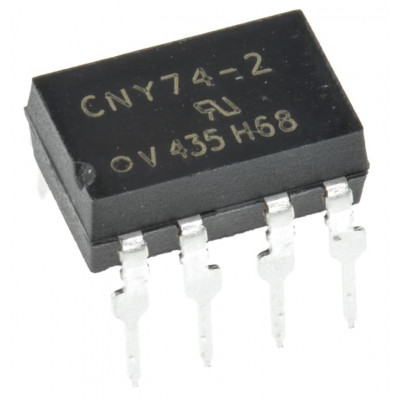

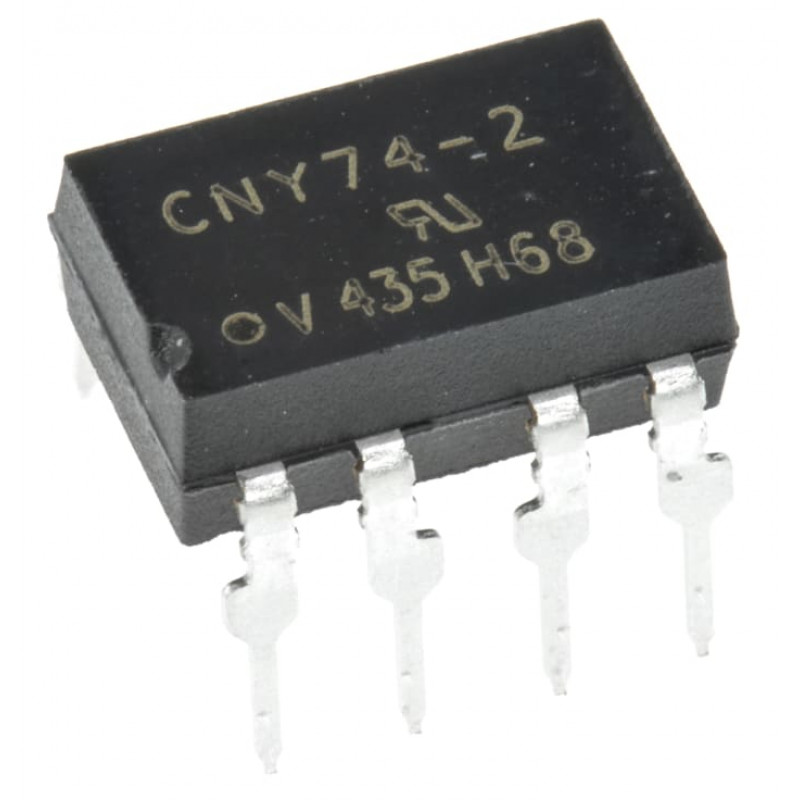

  • CNY74-2 IC - 2-Channel Optocoupler with Phototransistor IC

The CNY74-2 consist of a photo transistor optically coupled to a gallium arsenide infrared-emitting diode in an 8-lead, resp. 16-lead plastic dual inline package. The elements are mounted on one lead frame using a co planar technique, providing a fixed distance between input and output for highest safety requirements.

Features:-

• CNY74-2 includes 2 isolator channels

DC isolation test voltage VIO = 2.5 kV

Test class 25/100/21 DIN 40 045

Low coupling capacitance of typical 0.3 pF

Current Transfer Ratio (CTR) of typical 100%

Low temperature coefficient of CTR

Wide ambient temperature range

Applications:- Galvanically separated circuits, non-interacting switches.

Specification:-

Symbol Parameter Value Unit
VR Reverse voltage 6 V
IF Forward current 60 mA
IFSM Surge current 1.5 A
PV Power dissipation 100 mW
VCEO Collector-emitter breakdown voltage 70 V
VEBO Emitter-base breakdown voltage 7 V
IC Collector current 100 mA
TJ Junction temperature 125 °C
ICM Peak collector current 100 mA


Related Document:-

 CNY74-2 IC Data Sheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 93.22 (Inclusive of all Taxes)
