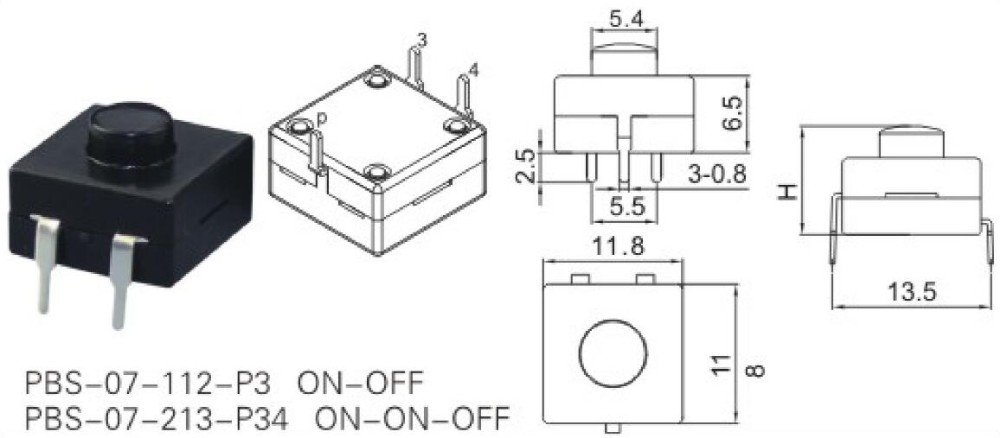

The PBS-07-112-P3 Push Button Switch is a 2-pin DIP switch designed for easy and swift operation on your PCB. This compact 12x12x9mm switch is highly convenient to use. Enhanced with attractive illuminative materials on its surface, the push button switch offers a graphic appeal that adds to its visual charm. The labeling ensures ease of use, making it a user-friendly choice for various applications. With the PBS-07-112-P3 Push Button Switch, you can enjoy a satisfying and efficient user experience. Whether youre designing electronic devices or implementing DIY projects, this switch will prove to be an indispensable component in your toolkit. Simplify your switching needs with this reliable and appealing push button switch.
Specifications:
- Housing: Nylon 66
- Color: Black
- Switch Operation: ON-OFF
- Current/Voltage Rating: 1A 30VDC
- Operating Temperature: -25C~+85C
- Contact Resistance: < =30mOhm
- Insulation Resistance: > =100mOhm (500VDC)
- Electrical Life: > =10,000 Cycles
- Dielectric Strength: 500VAC 1 minute
- Mechanical Life: > =100,000 Cycles
- Number of Pins: 2
Package Includes:
1 x PBS-07-112-P3- Latching Flashlight Switch-2 Pin(12x12x9)
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

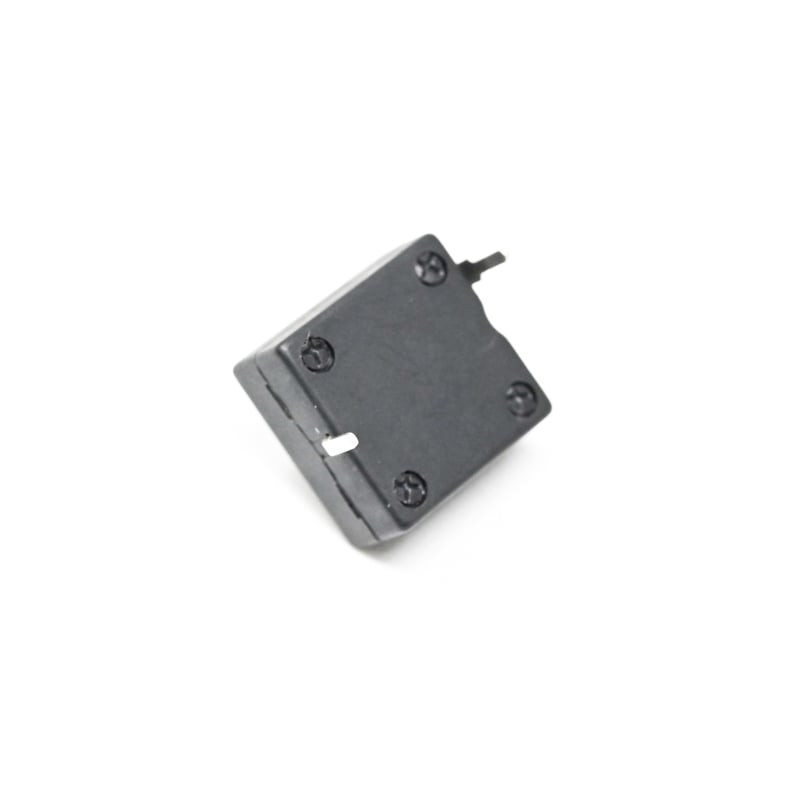

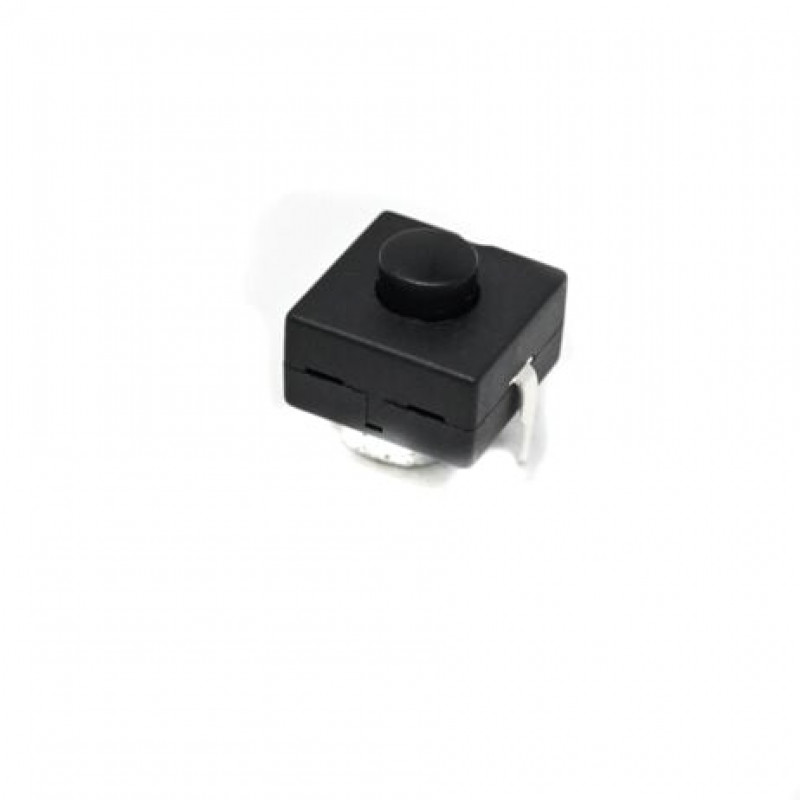

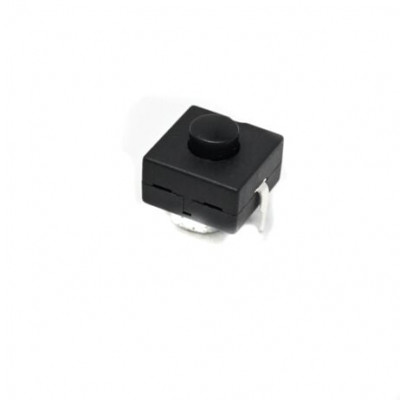

PBS-07-112-P3- Latching Flashlight Switch-2 Pin(12x12x9)
- Product Code: EC-30139
- Availability: Out Of Stock
-
Rs.8.00
- (Excluding 18% GST)
